8.3MHz Wireless Ultrasound Probe Depth 12.6cm Linear Probe Ultrasound
8.3MHz Wireless Ultrasound Probe Depth 12.6cm Linear Probe Ultrasound
8.3MHz Wireless Ultrasound Probe Depth 12.6cm Linear Probe Ultrasound
8.3MHz Wireless Ultrasound Probe Depth 12.6cm Linear Probe Ultrasound
Specifications
Brand Name :
Golead
Model Number :
H35L
Certification :
CE, ISO13485
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
1,000 units per month
Delivery Time :
2 working days
Packaging Details :
carton box
Product Name :
6000 mAh Internal Battery Wireless Ultrasound Probe Linear Probe Ultrasound
Element :
128
Scanning mode :
electronic linear array
Frequency :
4/8.3/12MHz
Support Language :
English/Chinese
Cineloop :
100 frames
Display mode :
B/C/M/PW/PD
Image storage format :
DICOM, BMP, PNG, JPEG
Battery :
6000 mAh, maximum 4.5-hour continuous use
N/W :
330g
G/W :
530g
Warranty :
1 year
Body Mark :
Yes
Size :
179*75*34mm
Description

6000 mAh Internal Battery Wireless Ultrasound Probe Linear Probe Ultrasound

DESCRIPTION

The H35L Wireless Ultrasound Probe is a state-of-the-art device that uses cutting-edge technology to provide superior imaging capabilities. With its ultra-portable design and user-friendly interface, this device is ideal for healthcare professionals who need to perform ultrasound procedures in a variety of settings.

One of the key features of the H35L is its ability to support two different probes, including convex and linear, which makes it a versatile tool for a wide range of diagnostic applications. Additionally, the device includes specialized application packages that can automatically measure certain parameters, helping healthcare professionals to make accurate diagnoses quickly and easily.

The H35L utilizes advanced image processing technology, including spatial composite imaging and speckle reduction, which allows for improved response times and image quality. The device also supports GPU technology, enabling real-time low-latency image processing at up to 30 frames per second.

Another notable feature of the H35L is its phase inversion tissue harmonic imaging technology, which provides clear imaging even in challenging patients. This feature enhances the confidence of medical staff when diagnosing and treating patients, making it an essential tool for any healthcare practice.

PARAMETERS:

​​

Scanning mode Electronic Linear Array with 128 elements
Display mode B/C/M/PW/PD
Central frequency 8.3MHz
Depth 12.6cm
Zoom four times
Channel 32
Dynamic Range 180dB
Sampling Rate 50MHz
Gray 256
FPS from 8 to 30
Packing Dimension 255*190*60mm
Video Storage MPEG-4


APPLICATIONS

Vascular, small parts, MSK, nerve

CONTENT INCLUDED

Wireless Ultrasound Probe – H35L

Internal Battery

Charging Cable

User Manual

Wireless Charger

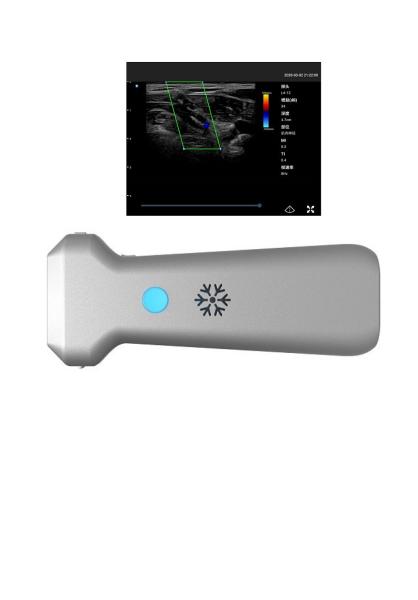

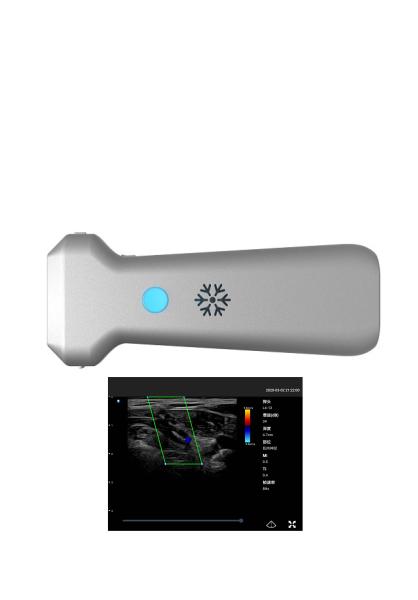

CLINICAL IMAGE

8.3MHz Wireless Ultrasound Probe Depth 12.6cm Linear Probe Ultrasound
