Automatic Sheet Feeding System Robotic Palletizer 3 Axis for Composite Board Stacking
Automatic Sheet Feeding System Robotic Palletizer 3 Axis for Composite Board Stacking
Specifications
Brand Name :
LONGYU
MOQ :
1 Set
Price :
20000.00-30000.00
Payment Terms :
T/T
Delivery Time :
45–60 Working Days
Packaging Details :
Standard Export Wooden Case
Supply Ability :
1Set/month
Certification :
ISO9001
Operating Temperature :
0°C to 45°C
Material :
Aluminum alloy
Application :
Assembly, welding, painting, material handling
Power Supply :
24 V DC
Mounting Type :
Desktop or Floor mount
Weight :
8 kg
Reach :
700 mm
Communication Interface :
USB, Ethernet
Description

Description:

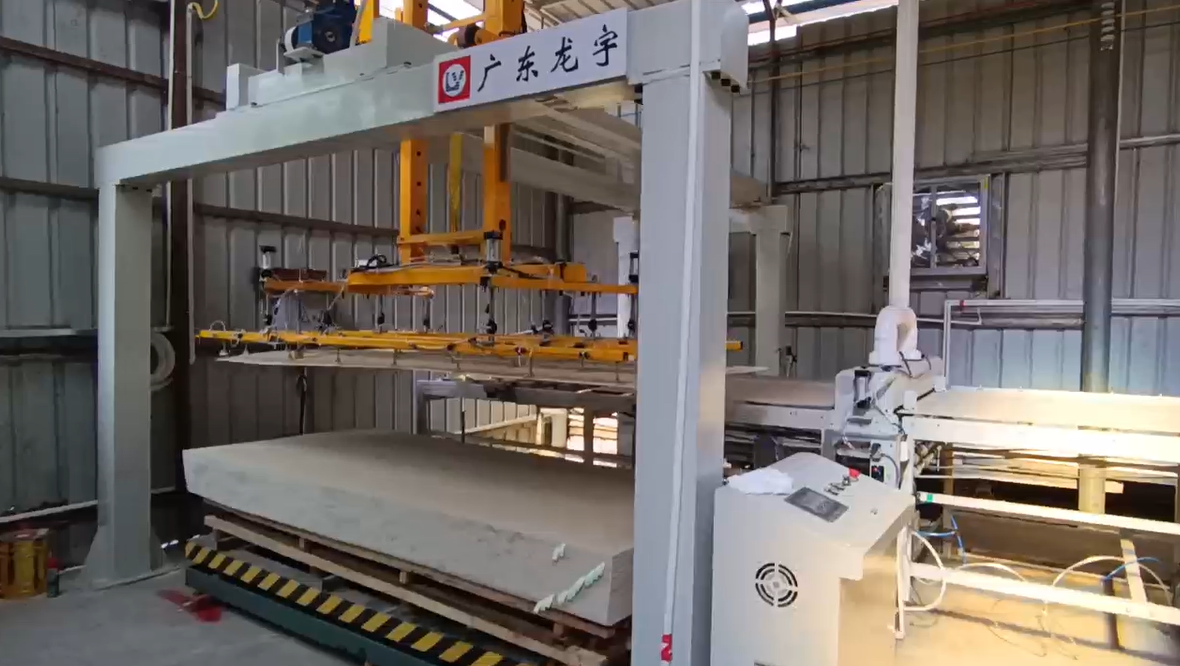

The LY-08-1300 Three Axis Robotic Palletizer is specially developed for automatic sheet feeding and composite board stacking in continuous production lines. It is widely used in sandwich panel production, honeycomb board manufacturing and industrial composite processing systems.

This robotic system adopts a three-axis motion control structure, providing precise positioning, stable stacking accuracy and smooth operation. With a production efficiency of up to 4 pieces per minute for 3-meter boards, it significantly improves automation level and reduces manual labor costs.

The mechanical arm supports a load capacity of 20kg/m² and can be customized according to different board weights and sizes. The maximum stacking height reaches 1 meter, ensuring safe and organized palletizing performance.

The equipment integrates with conveyor lines to form a complete automated handling solution. The conveyor chain load capacity reaches 3 tons, making it suitable for heavy-duty composite panels.

The machine length is 6 meters and can be customized according to factory layout requirements. Powered by a three-phase 380V 50Hz system, the equipment ensures stable and energy-efficient performance for industrial production environments.

Automatic Sheet Feeding System Robotic Palletizer 3 Axis for Composite Board Stacking

Technical Specifications:

Item Specification
Model LY-08-1300
Machine Type Three Axis Robotic Palletizer
Production Efficiency 4 pieces/min (3m board length)
Applicable Board Width 1–1.3m
Applicable Board Length 1–3m
Mechanical Arm Load 20kg/m² (Optional)
Maximum Stacking Height 1m (Optional)
Conveyor Chain Load 3 Tons (Optional)
Equipment Length 6m (Customizable)
Gas Source 0.6–0.8MPA
Power Supply 380V 50Hz Three Phase
Maximum Power 8KW

Automatic Sheet Feeding System Robotic Palletizer 3 Axis for Composite Board Stacking

Applications:

• Composite board stacking
• Honeycomb panel production lines
• Sandwich panel manufacturing
• Refrigerated truck panel handling
• Automated sheet feeding systems

Automatic Sheet Feeding System Robotic Palletizer 3 Axis for Composite Board Stacking

Automatic Sheet Feeding System Robotic Palletizer 3 Axis for Composite Board Stacking
