Three-Axis Palletizing Robotic Arm

Quick Detail:

1.Three-Axis Freedom: Provides flexible X, Y, Z linear motion for precise pick-and-place operations.

2.Automatic Palletizing: Designed for automated stacking of sheets and composite panels onto pallets.

3.High Efficiency: Capable of handling up to 4 pieces of 3-meter long boards per minute.

4.Heavy-Duty Performance: Robust conveyor line supports up to 3 tons, and arm load up to 20KG/m² (optional).

5.Integrated Solution: Works seamlessly with existing production lines for feeding and material handling.

Specifications:

Description:

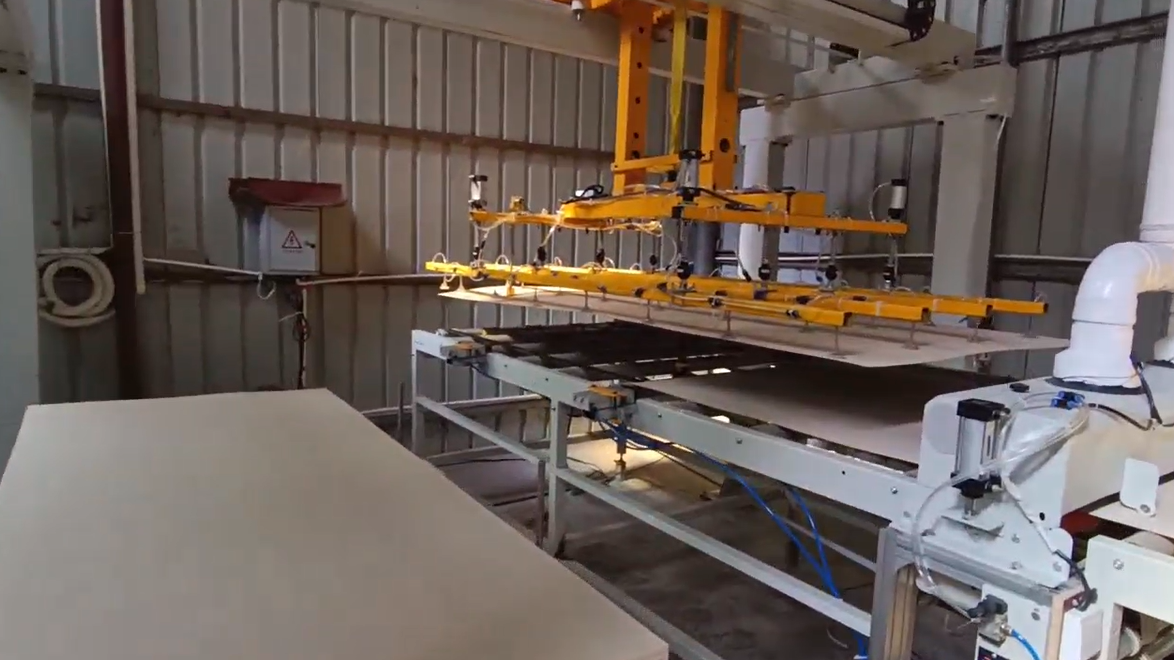

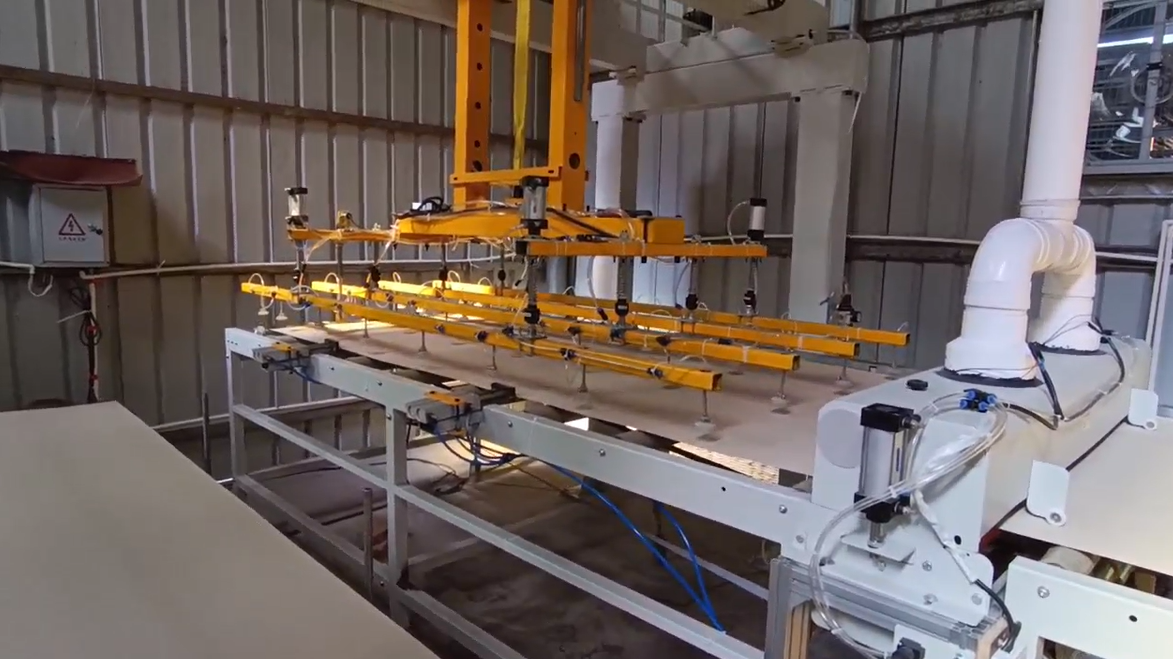

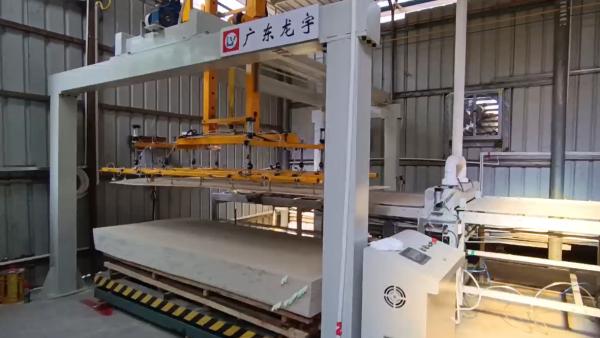

The LY-08-1300 Three-Axis Palletizing Robotic Arm is an automated material handling solution engineered to streamline the final stage of panel production lines. It efficiently replaces manual labor in the repetitive and physically demanding tasks of feeding sheets to machines and stacking finished composite panels. With its precise three-axis linear motion, the robotic arm can accurately pick up panels from a conveyor line and place them onto pallets in a pre-programmed, neat stack pattern, maximizing space utilization and preparing goods for shipment or storage. Its customizable length (6m standard), load capacity, and stacking height make it adaptable to various panel sizes and production layouts. By integrating the LY-08-1300, manufacturers can achieve consistent stacking quality, reduce labor costs, minimize product damage, and significantly boost overall line productivity.

Notices:

1.Ensure the factory floor space accommodates the 6-meter equipment length and allows for safe operation and pallet handling around it.

2.The end-effector (gripper/suction cups) should be selected or customized based on the specific panel material, size, and surface condition.

Proper integration with upstream (e.g., cutting/laminating machines) and downstream (conveyor/pallet flow) equipment is crucial for seamless automation.

Operators require basic training on programming, operation, and safety procedures of the robotic system.

Applications:
Ideal for automating material handling in panel and sheet goods manufacturing:

Automatic Feeding: Loading raw sheets or semi-finished panels into processing machines (e.g., cutters, laminators).

Palletizing Finished Products: Stacking finished composite panels, boards, or large-format sheets onto pallets for storage or transport.

Production Line Linking: Serving as a flexible transfer unit between two conveyor lines or workstations.
