Specifications
Packaging Details :
PLYWOOD CASE
Supply Ability :
30PCS/MONTH
Price :
CONTACT US
Brand Name :
GDS
Model Number :
JCD-80
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PIECE
Payment Terms :
T/T
Delivery Time :
10 WORKING DAYS
Name :
Industrial Glue Dispensers
Application :
LED bulb
Function :
punching and gluing
EXW report :
test video available
After-sales Service :
On-line
Warranty :
1 year
Description

bulb punching machine LED bulb mid-plate punching and gluing machine with high capacity eight station bulb glue dispenser

LED Bulb Industrial Glue Dispensers 200W Bulb Punching Machine 0 - 300 RPM With Eight Station

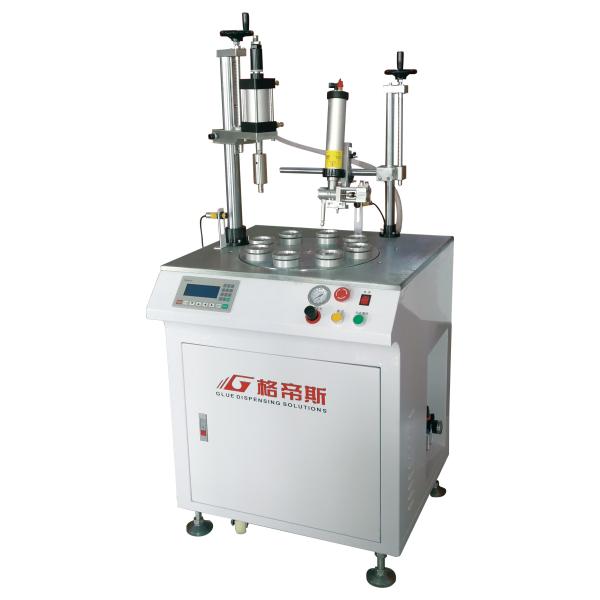

Eight stations are distributed on the revolution disc by 45 degree. The revolution motor rotates 45 degree each time to bring two work-pieces to the punching station and gluing station. After punching, the work-piece will be brought to gluing station. Auto-revolution motor drives the work-piece rotating in average speed to achieve evenly glue coating. LED bulb mid-plate punching and gluing machine can perfectly replace manual operation to get better product quality and improve work efficiency.

Machine Features

  • Floor stand design with caster, the machine is stable and easy to move;
  • Integrate punching and gluing process, work in cycle, the designed capacity is 1000pcs/h;
  • Equipped with work piece detector to decide working or skipping
  • Gluing track can be set as full circle, single point or segmented arc etc.
  • Working mode can be two-station, four-station or eight-station;
  • It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.

Technical Parameters

Model

JCD-80

MCU

Industrial PLC

Programming

Text Demonstration Programmer

Drive mode

Precise Stepping Motor

Max Dispensing Diameter

280mm(two-station),

200mm(four -station), 110mm(eight-station)

Motor Speed

0 ~ 300 RPM

Positioning Accuracy

±0.1mm

Z-axis Adjust Range

250mm

Z-axis Working Travel

50mm

Dimension (L*W*H)

L680mm*W700mm*H1520mm

Weight

190Kg

Working Power

AC220V/50~60Hz/200W

Working Air Pressure

0.4~ 0.6Mpa(no condensation)

Working Temperature and Humidity

Temperature: 0~40℃ Humidity: 20~90%

Suitable Glue: 300ml/2600ml single-component package for silicone

Applications: LED bulb

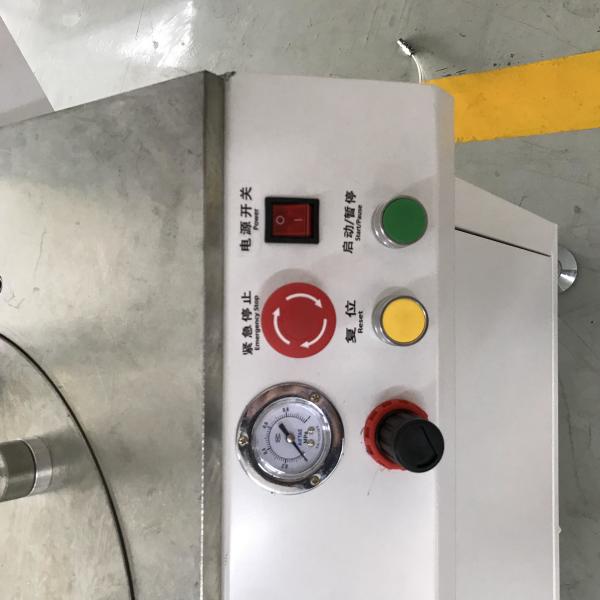

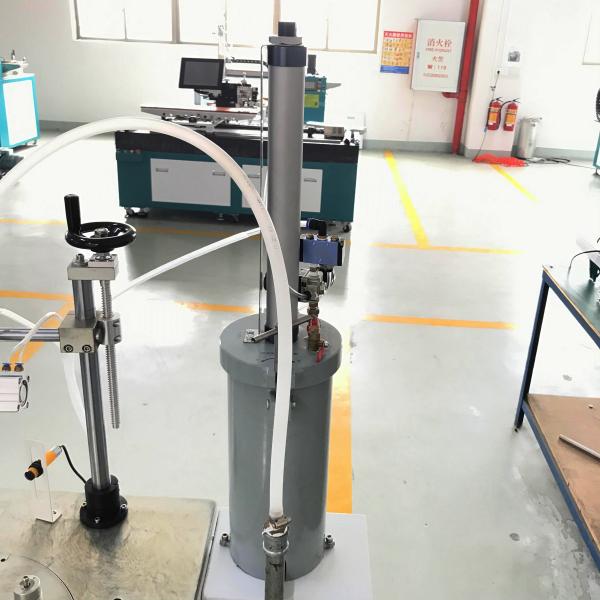

Machine Details

LED Bulb Industrial Glue Dispensers 200W Bulb Punching Machine 0 - 300 RPM With Eight Station LED Bulb Industrial Glue Dispensers 200W Bulb Punching Machine 0 - 300 RPM With Eight Station

LED Bulb Industrial Glue Dispensers 200W Bulb Punching Machine 0 - 300 RPM With Eight Station LED Bulb Industrial Glue Dispensers 200W Bulb Punching Machine 0 - 300 RPM With Eight Station
