LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
Specifications
Certification :
CE
Packaging Details :
PLYWOOD CASE
Supply Ability :
50PCS/MONTH
Price :
CONTACT US
Brand Name :
GDS
Model Number :
JD-10
Place of Origin :
CHINA
MOQ :
1PIECE
Payment Terms :
T/T
Delivery Time :
7 WORKING DAYS
Name :
Automated Glue Dispenser
Application :
downlight
Function :
dispensing glue
EXW report :
test video available
After-sales Service :
On-line or on-site
Warranty :
1 year
Description

LED round panel light automatic glue dispensing machine glue dispenser for panel light downlight

LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round

round panel light or down light gluing should be fast and in good consistency. GDS round glue dispensing machine can replace manual operation to get better gluing performance. We can design the fixture based on the dimension of the product . Then the product can be held on the fixture. The motor drives the fixture to rotate for designed gluing track.

machine features:

  • Specially designed for large size round products;
  • Gluing track can be set as full circle, single point, segmented arc etc.;
  • Equipped unique suck-back valve to guarantee fast glue flow and no drops or leakage;
  • It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance;

Technical Parameters

Model

JD-10

MCU

Industrial PLC

Programming

Text Demonstration Programmer

Drive Mode

Precise Stepping Motor

Max Dispensing Diameter

400mm

Motor Speed

0 ~300RPM

Positioning Accuracy

±0.1mm

Z-axis Adjust Range

250mm

Z-axis Working Travel

50mm

Dimension(L*W*H)

420mm*532mm*532mm

Weight

28Kg

Working Power

AC220V/50~60Hz/150W

Working Air Pressure

0.4~ 0.6Mpa(no condensation)

Working Temperature and Humidity

Temperature: 0~40℃,Humidity: 20~90%

Suitable Glue:300ml/2600ml single-component package for silicone, thermal-conductive silicone grease, UV glue, AB glue etc.

Applications:

Big size round lights, such as LED round panel light, outdoor wall light, yard lamp, lawn lamp, PAR light, mine light etc.

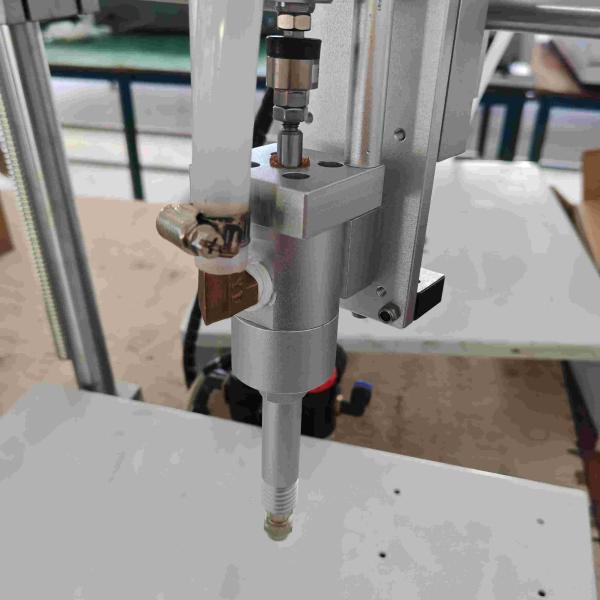

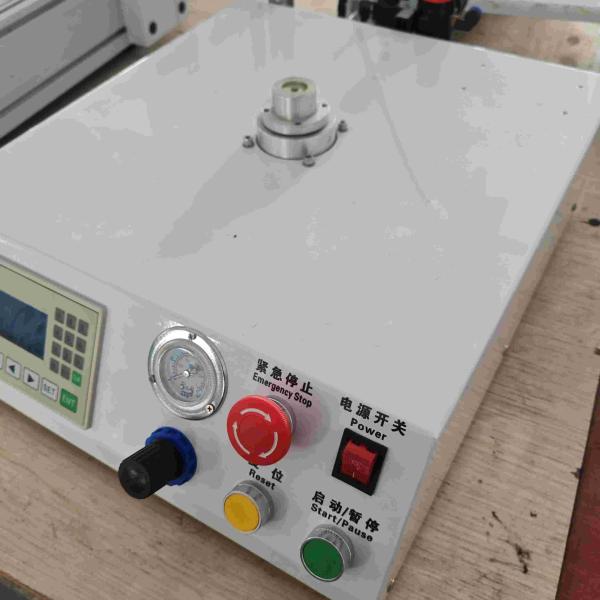

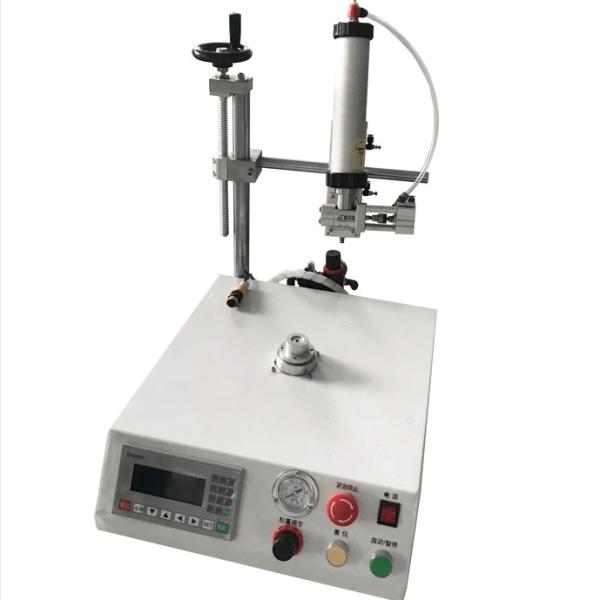

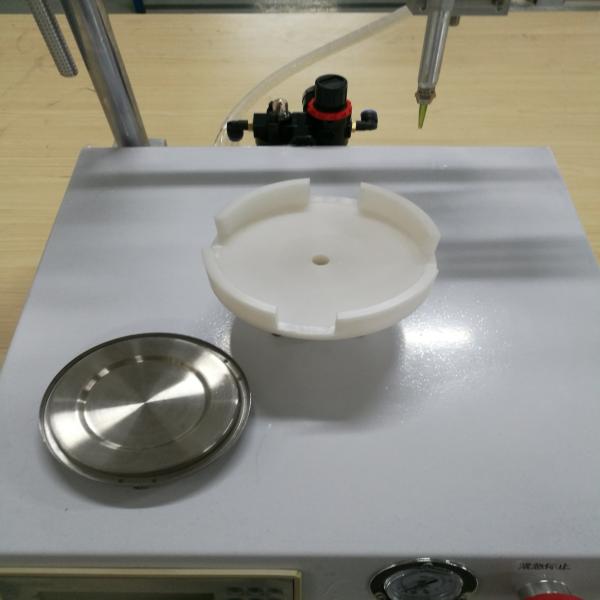

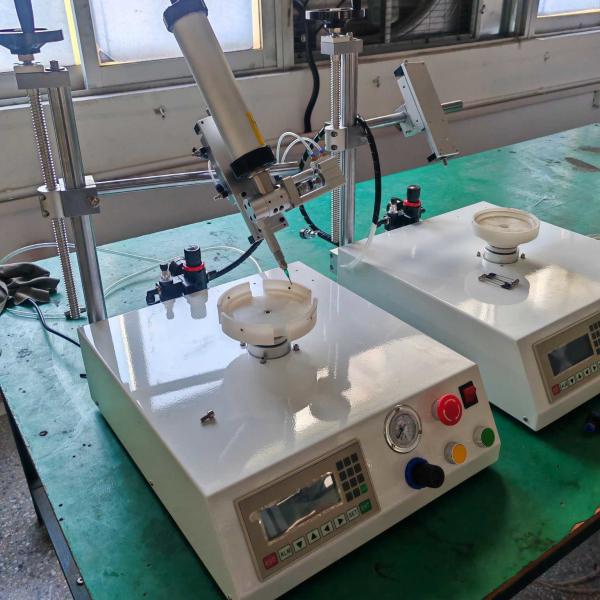

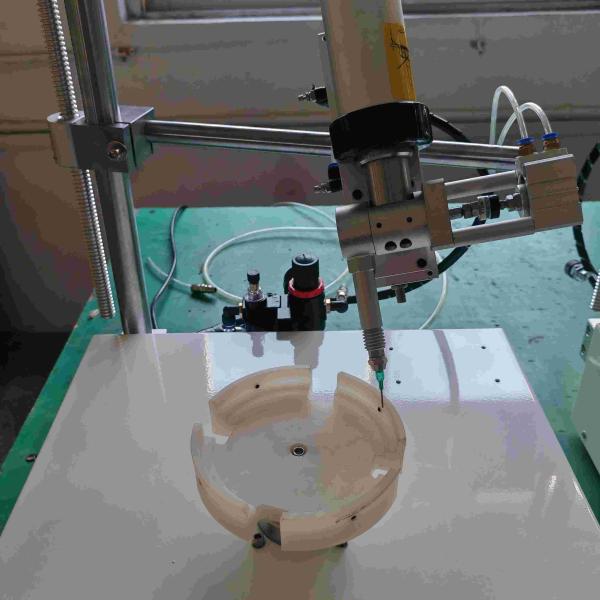

Machine Details

LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round
