Specifications
Packaging Details :
PLYWOOD CASE
Supply Ability :
30PCS/MONTH
Price :
CONTACT US
Brand Name :
GDS
Model Number :
TD-1560
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PIECE
Payment Terms :
T/T
Delivery Time :
10 WORKING DAYS
Name :
Glue Dispensing Machine
Application :
LED outdoor lights
Function :
silicone dispensing
EXW report :
test video available
After-sales Service :
On-line or on-site
Warranty :
1 year
Description

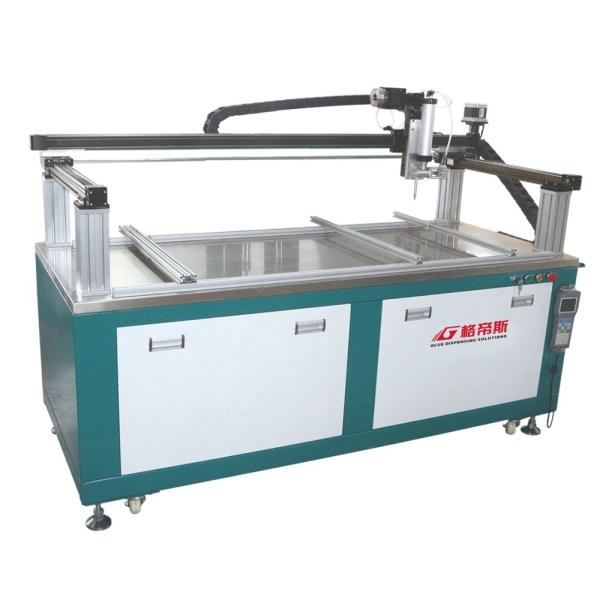

Three-axis Glue Dispensing Machine for outdoor lights gluing automatic glue dispenser

Three Axis Glue Dispensing Machine 1500*600*100mm Automatic Glue Dispenser Machine Customized

Principle Description

Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air.

Machine Features

  • Floor stand design with wide working range(1500*600MM), suitable for big size work-piece;
  • Equipped hand programming controller, easy to learn and operate;
  • The instructions can be copied and arrayed;
  • Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
  • Glue flow is stable without leakage and drawing.

Technical Parameters

Model

TD-1560

MCU

Three-axis Movement Controller

Programming

Teaching Programming

Drive Mode

Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way

Working Range(X*Y*Z)

1500*600*100mm(Non-STD size can be customized)

Max Moving Speed

MAX 500mm/sec

Repeat Accuracy

±0.02mm

Program Memory Capacity

About 10000 units

Dimension(L*W*H)

2200*800*1200mm

Weight

150Kg

Working Power

AC220V/50~60Hz/150W

Working Air Pressure

0.4 ~ 0.6Mpa(no condensation)

Working Temperature and Humidity

Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Suitable Glue: 300ml or 2600ml single-component package for silicone, thermal conductive silicone grease, UV glue, AB glue etc.

Applications:Big size products, such as LED wash wall light, flood light, ceiling light, outdoor wall light, car headlight, smoke exhaust ventilator etc.

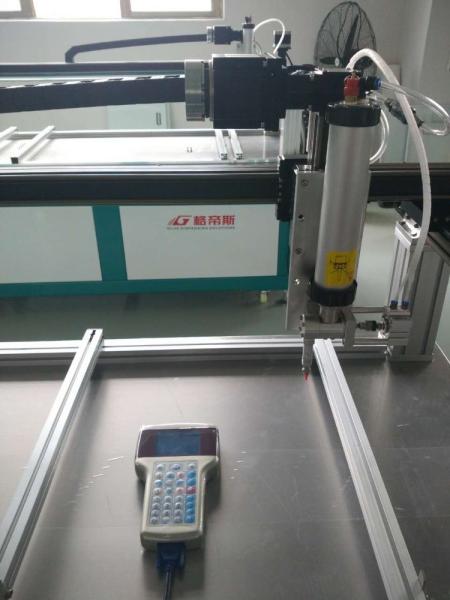

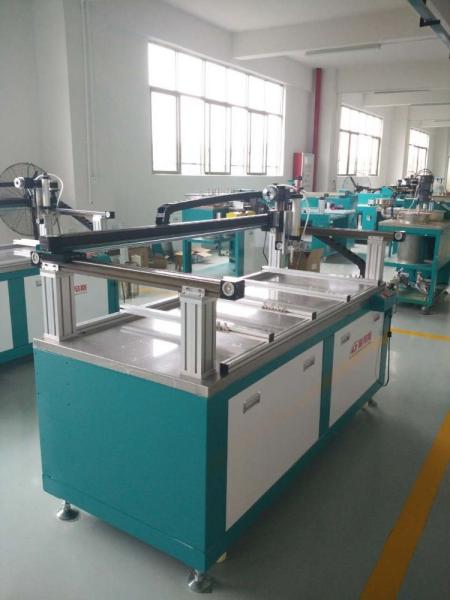

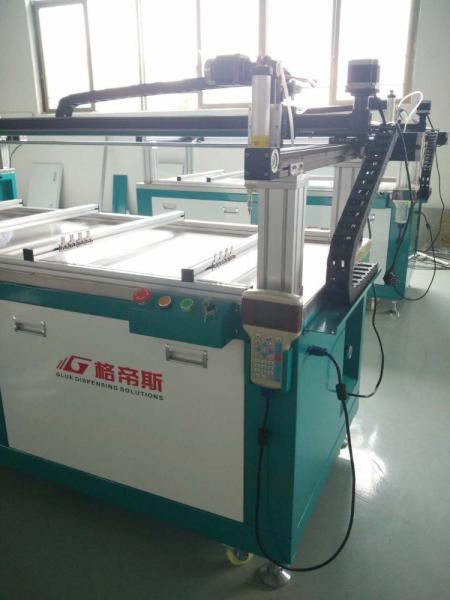

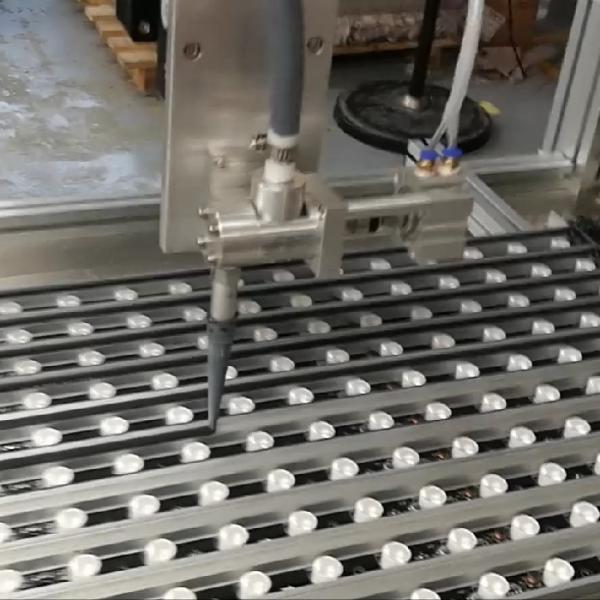

Machine Details

Three Axis Glue Dispensing Machine 1500*600*100mm Automatic Glue Dispenser Machine Customized Three Axis Glue Dispensing Machine 1500*600*100mm Automatic Glue Dispenser Machine Customized

Three Axis Glue Dispensing Machine 1500*600*100mm Automatic Glue Dispenser Machine Customized Three Axis Glue Dispensing Machine 1500*600*100mm Automatic Glue Dispenser Machine Customized
