Specifications
Packaging Details :
PLYWOOD CASE
Supply Ability :
15PCS/MONTH
Price :
CONTACT US
Brand Name :
GDS
Model Number :
TD-1510
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PIECE
Payment Terms :
T/T
Delivery Time :
15 WORKING DAYS
Name :
Glue Dispensing Machine
Application :
Led Lights Assembly
Function :
automatic glue dispensing
After sales service :
On-line or on-site
EXW report :
test video available
Warranty :
1 Year
Description

T8 glass tube glue dispensing machine,automatic loading, dispensing,manual PCB placing

Automatic Glue Dispensing Machine 800pcs/H Dispensing Equipment For T8 Glass Tube

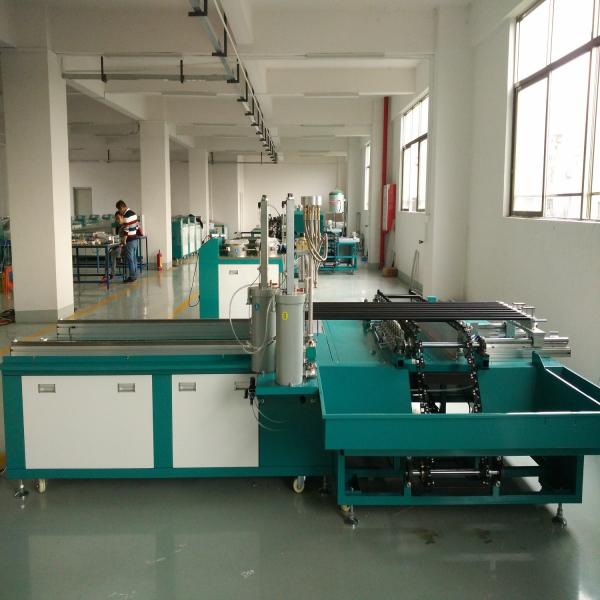

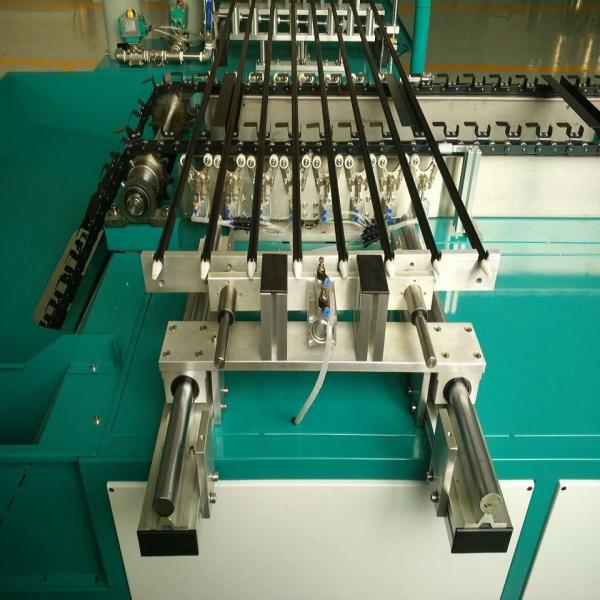

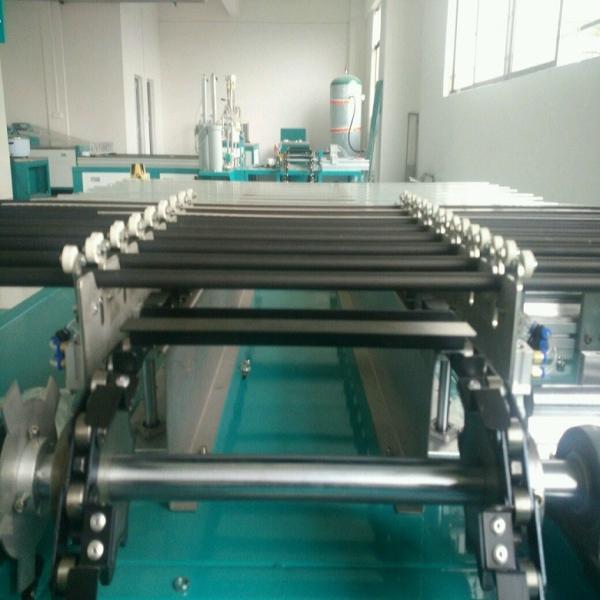

Glass tubes stored at the feeding tank are brought to the work stations by drive chain. ten PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole process is finished when the sticks are pulled out and tubes flow to the next work station.

machine features

  • Specially designed for T8 Glass Tube Glue Dispensing, eight glue valves are working at the same time, the designed capacity is 800pcs/h;
  • Suitable for different length of tubes: 600mm,900mm,1200mm,1500mm;
  • ten glue valves are controlled independently. Glue flow is fast and accurate without drawing or leakage;
  • Glass tube loading automatically and PCB loading manually, with high efficiency and saving labor cost;
  • Time of pressurization and sticking can be set by touch screen for different types of glue;
  • Oil cups are equipped under the nozzles to prevent the glue getting dry for longtime no use.

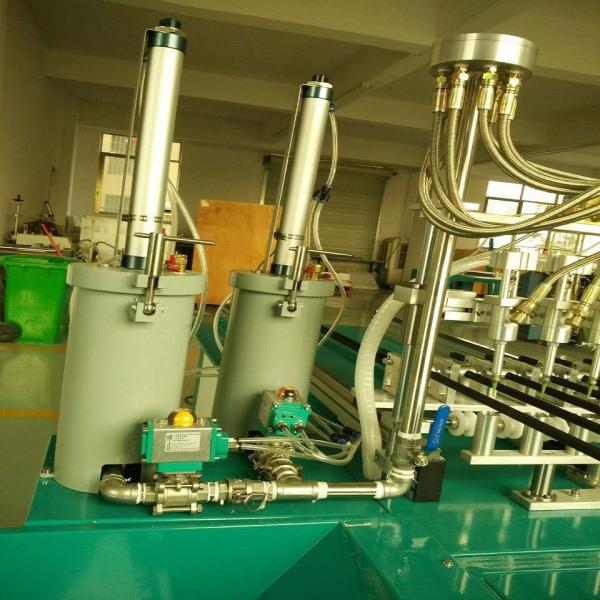

  • Equipped two glue containers. When remaining glue in one container is not enough, the system will alarm and switch to the other glue container automatically without any time wasting.
  • The whole machine are assembled with two parts, easy to disassemble for transportation;
  • FPC soft board gluing can be available through upgrading the system;

Machine Details

Automatic Glue Dispensing Machine 800pcs/H Dispensing Equipment For T8 Glass Tube Automatic Glue Dispensing Machine 800pcs/H Dispensing Equipment For T8 Glass Tube
