１．Product Overview

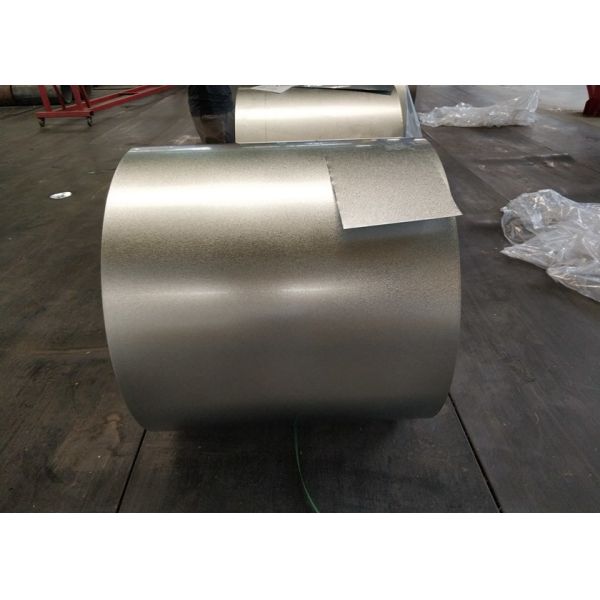

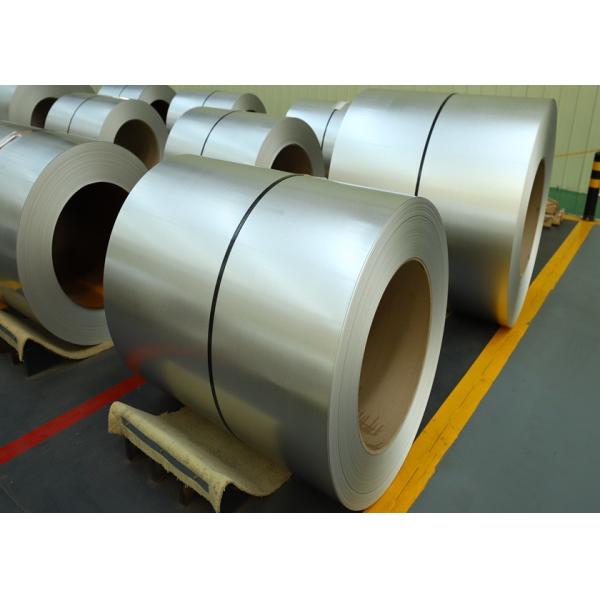

DX53D Pre-Painted Galvalume Steel Coil combines the corrosion resistance of aluminum-zinc alloy coating with the decorative and protective benefits of a painted surface. It is widely used in construction, automotive, electrical appliance, and industrial manufacturing sectors where long service life and attractive appearance are required.

The product offers excellent formability, coating adhesion, and weather resistance, making it suitable for roofing panels, wall systems, appliance housings, and architectural applications.

２．Technical Solution

The steel substrate is coated with an aluminum-zinc alloy layer according to ASTM A792, JIS G3321, or EN 10346 standards. The coating provides barrier protection from aluminum and sacrificial protection from zinc. Additional surface treatments such as chromating, oiling, and anti-fingerprint coatings improve durability and storage performance.

The material can be further processed into pre-painted products while maintaining excellent adhesion and corrosion resistance.

３．Specifications

４．Application

This product is widely used for roofing panels, wall cladding systems, prefabricated buildings, steel structures, automotive body components, chassis parts, doors, fuel tanks, electrical appliance housings, industrial equipment, and PPGI production substrates.

５．Processing

The coil can be processed through slitting, cut-to-length production, roll forming, bending, stamping, profiling, and color coating production lines.

Its excellent formability allows use in complex fabrication processes.

６．Advantages

• Excellent corrosion resistance with aluminum-zinc coating
• Suitable for pre-painted steel production
• High formability for profiling and stamping
• Strong coating adhesion and paint performance
• Available with anti-fingerprint surface treatment
• Long service life in outdoor environments
• Suitable for construction and industrial applications
• Consistent surface quality and dimensional stability

７．How to Choose

• Select DX53D grade when enhanced forming performance is required.
• Choose higher AZ coating weights for severe outdoor environments.
• Select anti-fingerprint treatment for visible architectural applications.
• Match thickness to structural requirements and fabrication methods.
• Choose appropriate width according to production line specifications.

８．FAQ

Q1．What standards does this product comply with
The product is manufactured according to ASTM A792, JIS G3321, and EN 10346 standards.

Q2．What coating range is available
The aluminum-zinc coating range is 20-275g/m².

Q3．Can this product be used for pre-painted applications
Yes, it is specifically suitable for pre-painted Galvalume and color-coated steel production.

Q4．What thickness range is available
Thicknesses from 0.30mm to 1.5mm are available.

Q5．What industries commonly use this product
It is widely used in construction, automotive manufacturing, electrical appliances, industrial equipment, and architectural cladding applications.
