High Quality 2500mm Width Aluminum Alloy Coil Chemical Linings
High Quality 2500mm Width Aluminum Alloy Coil Chemical Linings
High Quality 2500mm Width Aluminum Alloy Coil Chemical Linings
High Quality 2500mm Width Aluminum Alloy Coil Chemical Linings
Specifications
Description
High Quality 2500mm Width Aluminum Alloy Coil Chemical Linings
Product Specifications
Type Aluminum alloy coil
Thickness 0.8-6mm
Alloy 3003/5052/5083
Temper H14/H32 etc
Surface Anodizing/PVDF coating
Trade terms CIF, CNF, FOB, EXW
Product Overview

2500mm width aluminum alloy coils are optimally suited for large chemical tank linings due to their proven corrosion resistance, lightweight yet strong construction, cost-effective lifecycle performance, and adaptability to mega-scale projects.

Manufacturing Capabilities
  • Super-big size production ability: widest 2900mm, thickest 12mm
  • World-class flat-rolling equipment with large-scale production capacity
  • High output with wide variety of products and modern production processes
Industry Certifications
Industry Certificate
Automobile IATF 16949
Railway Transportation IRIS ISO/TS22163 EN45545
Marine ABS CCS DNV LR NK KR
Aerospace NADCAP AMS AS9100D
Military GJB
Laboratory CNAS
Material Specifications
Alloy Selection:
  • 5052 (Al-Mg series): Excellent corrosion resistance for weak acid/alkali environments
  • 3003 (Al-Mn series): Resists general chemical media; cost-effective for non-aggressive environments
  • 6061 (Al-Mg-Si series): High strength with T6 heat treatment; suitable for structural linings
  • 1100 (Pure aluminum): High corrosion resistance but low strength; used for non-pressure linings
Tempers:
  • H32/H34 (5052/3003): Half-hard, balances strength and formability
  • T6 (6061): Age-hardened for high-stress applications
High Quality 2500mm Width Aluminum Alloy Coil Chemical Linings
Recommended Thickness Applications
Thickness Range Application Scenario Typical Configuration
0.5-1.5mm Pipeline linings 3003-H14 + PVDF coating

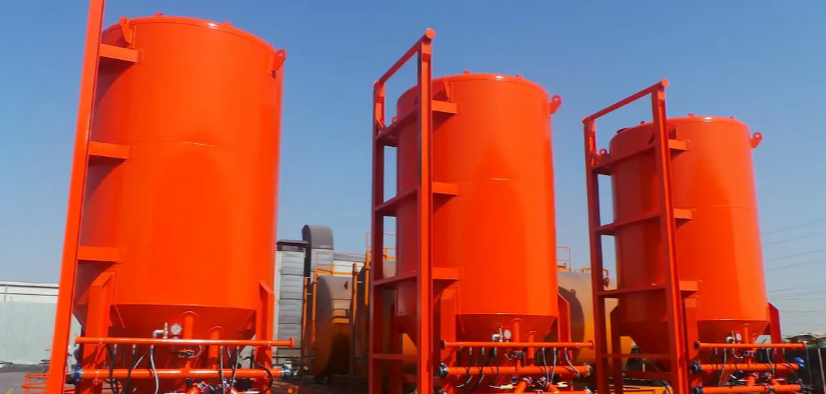

1.5-3.0mm Storage tank linings 5052-H32 + Anodizing
3.0-6.0mm Reaction vessels 5083-H321 + PTFE laminate
Key Product Advantages
Corrosion Resistance
  • Natural oxide film resists acids/alkalis/salt spray (5052 performs best at pH 4 - 9)
  • Outperforms carbon steel; can replace stainless steel in mild sulfuric acid
Workability
  • Easily coiled, welded (with shielding gas), or riveted for complex geometries
