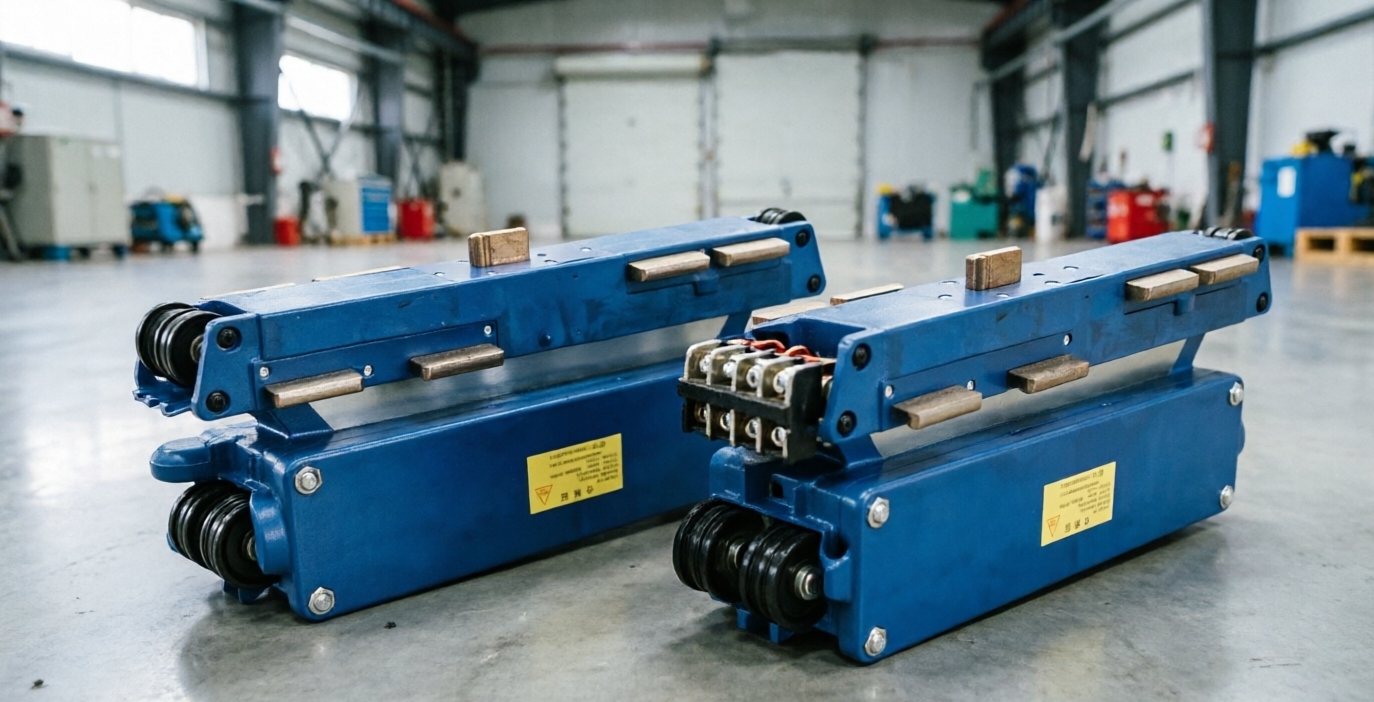

Flame Retardant Level V0 Sliding Contact Lines with 49m/s² Acceleration Resistance and 1508mm Effective Service Length for Reliable Power Transfer
Flame Retardant Level V0 Sliding Contact Lines with 49m/s² Acceleration Resistance and 1508mm Effective Service Length for Reliable Power Transfer
Flame Retardant Level V0 Sliding Contact Lines with 49m/s² Acceleration Resistance and 1508mm Effective Service Length for Reliable Power Transfer
Flame Retardant Level V0 Sliding Contact Lines with 49m/s² Acceleration Resistance and 1508mm Effective Service Length for Reliable Power Transfer
Flame Retardant Level V0 Sliding Contact Lines with 49m/s² Acceleration Resistance and 1508mm Effective Service Length for Reliable Power Transfer
Flame Retardant Level V0 Sliding Contact Lines with 49m/s² Acceleration Resistance and 1508mm Effective Service Length for Reliable Power Transfer
Specifications
Shell protection rating :
IP33，customizable IP54
Insulation resistance between poles and between poles :
>5MΩ
Place Of Origin :
China
Acceleration :
49m/S2
Incoming Cable (Copper Core) :
16mm²
Configured Quantity of Current Collector (pcs) :
1
Price :
Interview
RAted Operate Volatge :
AC 380-690V
vibration and shock resistance :
10-2000HZ
Model Number :
GHHX-A-16
Rated Current :
80A
Brand Name :
GHEC
Description
GHEC Sliding Contact Lines - Model GHHX-A-16
Product Overview
The GHEC Sliding Contact Lines represent a highly reliable and efficient Moving Contact Line System designed for demanding electrical and mechanical applications. This 10-pole configuration ensures seamless electrical connectivity and uninterrupted power transmission in dynamic environments where continuous movement and electrical conduction are critical.
Key Features
  • Moving Contact Line System designed for reliable performance
  • Corrosion stability: Acid-resistant, Alkali-resistant, Salt Spray Corrosion-resistant
  • Acceleration resistance up to 49m/s²
  • Compliant with GB/T 7251.6-2015 standards
  • Withstand current rating of 4.5KA
  • Flame retardancy certified at Level V0
  • Enhanced operational efficiency and durability
Technical Specifications
Effective Service Length 1508mm
Rated Operate Voltage AC 380-690V
Acceleration 49m/S²
Withstand Current 4.5KA
Net Weight Per Single Rail 8.45kg
Equivalent Copper Cable Cross-section 16mm²
Incoming Cable (Copper Core) 16mm²
Flame Retardancy Level V0
Environmental Specifications
Ambient Temperature: -25℃ to 40℃, with average temperature variation not exceeding 35℃ within any 24-hour period. Relative humidity can reach 100% at an ambient temperature of 25℃.
Applications
Ideal for automated production lines, cranes, trolley buses, conveyor systems, and other transport systems where reliable power transfer is critical despite frequent motion. Perfect for scenarios involving moving machinery and automated equipment requiring stable and continuous electrical connectivity.
Customization & Support
GHEC offers customized Sliding Contact Lines tailored to specific operational requirements. Comprehensive technical support includes installation guidance, troubleshooting, maintenance recommendations, on-site inspection, and preventive maintenance programs to maximize system efficiency and lifespan.
Frequently Asked Questions
Q: What is the brand and model number of the Sliding Contact Lines?
A: Manufactured by GHEC, model number GHHX-A-16.
Q: Where are the Sliding Contact Lines produced?
A: Produced in China.
Q: How can I get pricing information?
A: Pricing is available upon consultation. Please contact the supplier directly for a customized quote.
Q: What applications are these Sliding Contact Lines suited for?
A: Ideal for electrical systems requiring stable current transmission in moving equipment such as cranes, hoists, and conveyor systems.
Q: What materials are used in construction?
A: Constructed with high-quality conductive metals and durable insulation materials to ensure reliable performance and long service life.
