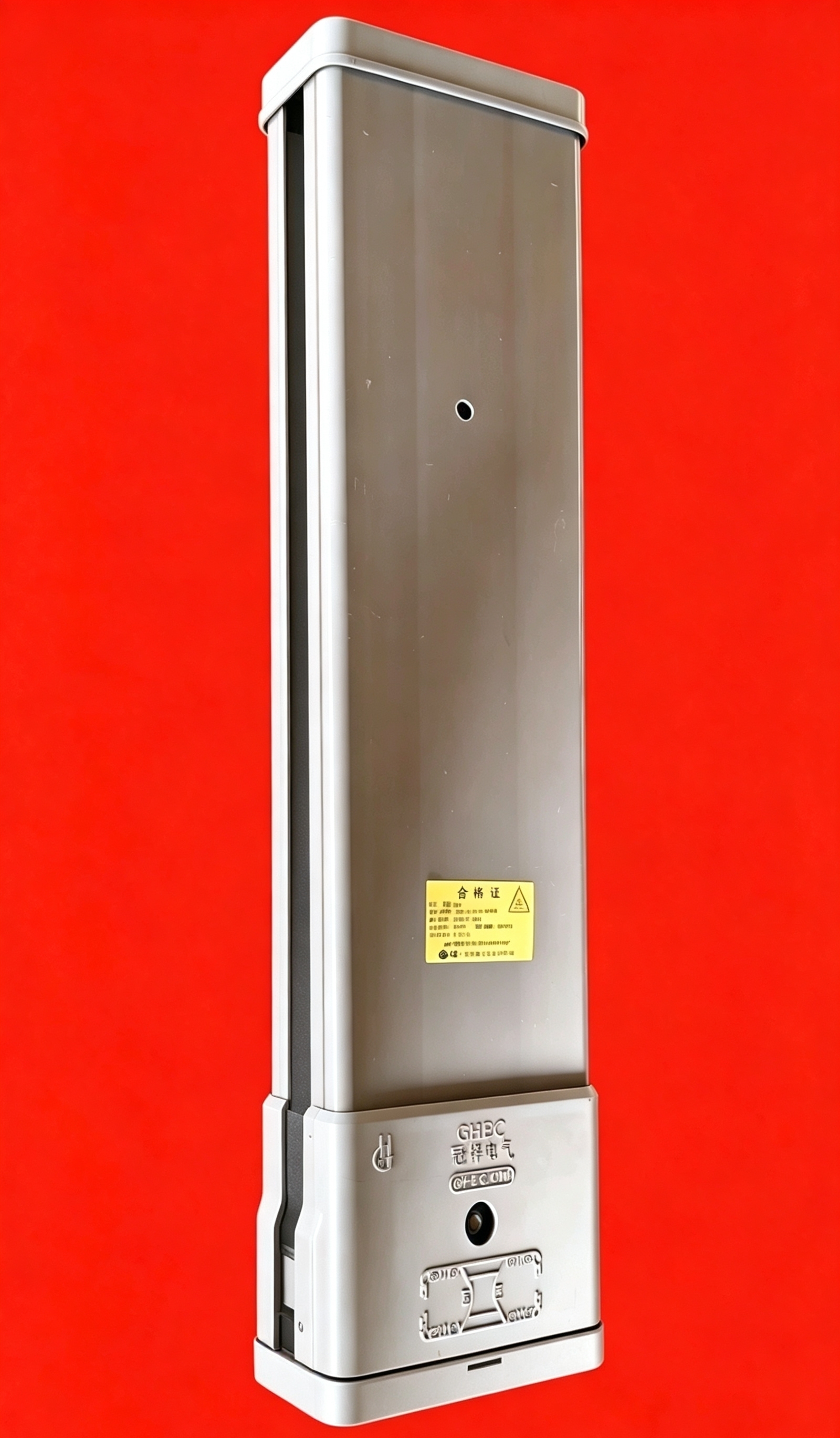

Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Corrosion Resistant Sliding Contact Lines with Rated Peak Withstand Current 6.75KA and Effective Service Length 1508mm
Specifications
Model Number :
GHHX-A-16
Price :
Interview
altitude :
Below 2000 Meters
Rated peak withstand current :
6.75KA
Environmental Indicators :
Ambient Temperature: -25℃-40℃, With The Average Temperature Variation Not Exceeding 35℃ Within Any 24-hour Period; Relative Humidity Can Reach 100% At An Ambient Temperature Of 25℃.
Incoming Cable (Copper Core) :
16mm²
Number of Poles :
10P
Effective Service Length :
1508mm
Place Of Origin :
China
Equivalent Copper Cable Cross-section :
16mm²
Brand Name :
GHEC
Net Weight Per Single Rail :
8.45kg
Description
Acceleration 49mS² Moving Contact Line System
Product Overview

The Sliding Contact Lines product is an advanced Moving Contact Line System designed to provide reliable and efficient electrical conduction in various industrial applications. Engineered with precision to ensure optimal performance, durability, and safety, this system is ideal for industries requiring stable and continuous power supply through mobile equipment.

Key Features
  • Exceptional corrosion stability with acid-resistant, alkali-resistant, and salt spray corrosion-resistant properties
  • Net weight: 8.45 kilograms per single rail for easy installation and handling
  • 10-pole (10P) configuration for multiple electrical circuits
  • Compatible with 16mm² copper core incoming cables
  • Rated peak withstand current: 6.75KA
  • Withstand current: 4.5KA
  • Rated operating voltage: AC 380-690V
  • Shell protection rating: IP33, customizable to IP54
  • Matching current collector model: GHJD-B-80A
Technical Specifications
Parameter Specification
Shell Protection Rating IP33, customizable IP54
Environmental Indicators Ambient Temperature: -25℃ to 40℃; Relative Humidity up to 100% at 25℃
Flame Retardancy Level V0
Effective Service Length 1508mm
Rated Current 80A
Vibration and Shock Resistance 10-2000HZ
Insulation Resistance >5MΩ between poles
Corrosion Stability Acid-resistant, Alkali-resistant, Salt Spray Corrosion-resistant
Applications

The GHEC Sliding Contact Lines (Model GHHX-A-16) are designed for automated manufacturing lines, assembly plants, cranes, hoists, conveyor systems, airports, ports, warehouses, railways, electric vehicles, and renewable energy projects. The system provides reliable electrical conduction in environments where continuous movement and flexibility are essential.

Customization & Support

GHEC offers customized services for the Sliding Contact Lines product to meet specific requirements. Comprehensive technical support includes installation guidance, system configuration, troubleshooting, maintenance services, and staff training to ensure optimal performance and longevity.

Frequently Asked Questions
What is the brand and model number of the Sliding Contact Lines?
Manufactured by GHEC, model number GHHX-A-16.
Where are the Sliding Contact Lines produced?
Made in China.
What are the typical applications?
Used in industrial settings for continuous electrical contact to moving machinery such as cranes, hoists, and automated equipment.
How can I get pricing information?
Contact GHEC directly for detailed pricing information.
What materials are used in construction?
High-quality conductive metals and durable insulating materials for reliable electrical transmission and longevity.
