RoHS General Copper Clad Polyimide Film Roll Yellow For Adhesive Tapes Heat Resistance
RoHS General Copper Clad Polyimide Film Roll Yellow For Adhesive Tapes Heat Resistance
RoHS General Copper Clad Polyimide Film Roll Yellow For Adhesive Tapes Heat Resistance
RoHS General Copper Clad Polyimide Film Roll Yellow For Adhesive Tapes Heat Resistance
Specifications
Brand Name :
Guofeng
Model Number :
25um
Certification :
SGS Reach ROHS
Place of Origin :
China
MOQ :
5kg
Price :
$300-$30000
Payment Terms :
L/C,T/T
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Barrier+ PE foam sheet+ PE film+ Foam packing cotton
Appearance :
The surface is flat and free of wrinkles, bubbles, colloids and impurities
Thickness :
25μm
Tensile Strengthh :
200MPa
Elongation at break :
70%
Young's Modulus :
2.5GPa
Insulation Strength :
250V/μm
Density :
1425Kg/m³
Thermal Shrinkage(200°，2h) :
0.08%
Description
GL-25 General Type Polyimide Yellow Film
Product Overview

The GL standard type polyimide film is a self-developed product of our company, available in two different thicknessesand characteristics, and is primarily used in the fields of covering films, adhesive tapes, and others.
Product Features
lt possesses excellent mechanical properties, insulation properties, and heat resistance properties.
It has excellent surface bonding properties.
The product complies with RoHS and Reach requirements and has passed safety certification by the UL laboratory in the United States.
Product application
The GL standard polyimide film is primarly used in FPC cover films, high-density conneijiuictors, and special insulating tape
substrates.

Place of Origin:
ANHUI, CHINA
Certification:
SGS, FDA
Material:
Polyimide
Color:
Yellow
Treatment:
Single-side / Both Sides
Width:
514MM, 520MM, 1028MM, 1040MM.etc
Thickness:
25μm
Packaging:
Wooden pallet
Supply Ability:
2000 ton/year
Product Features
  • Extremely high mechanical properties
  • Extremely low coefficient of thermal expansion
  • Excellent surface bonding properties
  • Complies with RoHS and Reach requirements
  • UL laboratory safety certified (United States)
Product Applications

The GL high-performance polyimide film is primarily used in:

  • High-precision adhesive FCCL substrates
  • High-stability cover films
  • Chip packaging
  • Special adhesive tape substrates

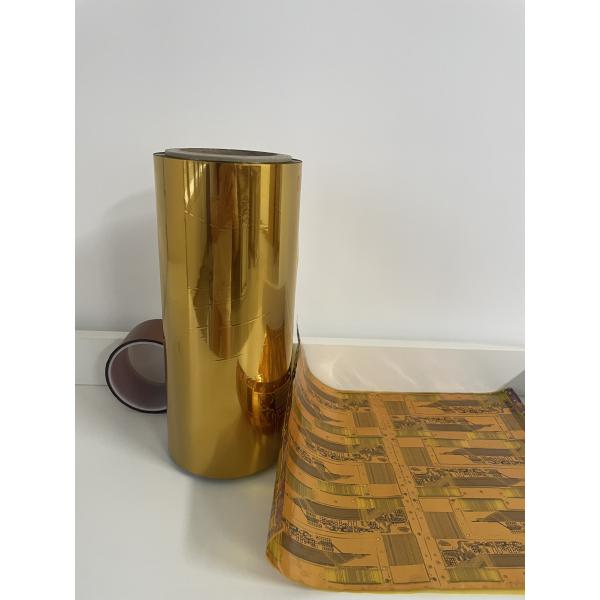

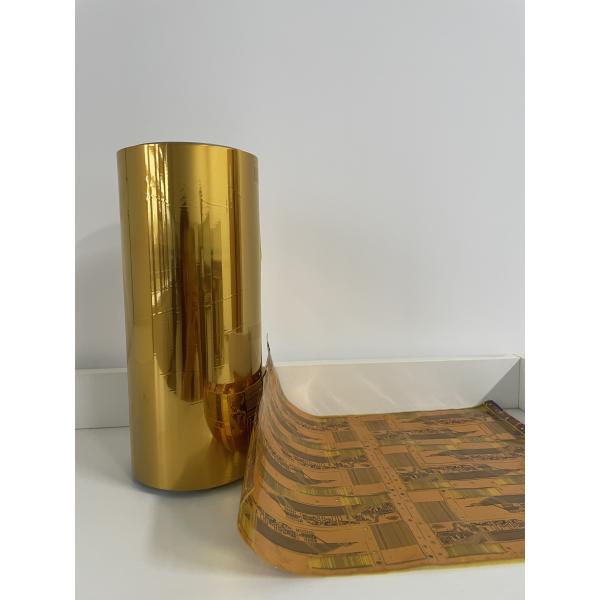

Product Images
RoHS General Copper Clad Polyimide Film Roll Yellow For Adhesive Tapes Heat ResistanceRoHS General Copper Clad Polyimide Film Roll Yellow For Adhesive Tapes Heat Resistance
