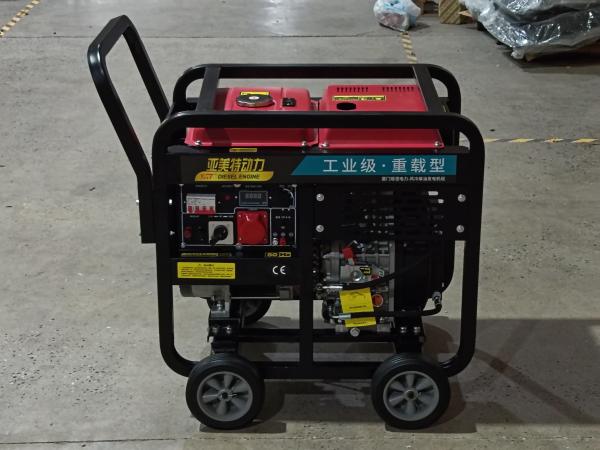

5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
5kw all-copper portable diesel generator single-phase and three-phase customizable
Specifications
Brand Name :
JIWEI
Model Number :
JW-YMT
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Rated voltage :
110V/220V/230V/380V/400V/440V,120 to 440V
Frequency :
50/60HZ
Speed :
3600rpm,3000/3600RPM
Rated current :
5A-30A
Rated power :
5kw
Output type :
AC Single Phase,DC,AC 3 Phase,Other
Color :
customizable
Engine type :
Air-cooled diesel Engine,ECU
Starting system :
Manual start, remote start, electric start
Function :
Provide Electric Power
Fuel tank capacity :
10-25L，According To Customers' Requirement
Alternator type :
Brush alternator with AVR or brushless with AVR,Three phase alternator
Product :
5kw all-copper portable diesel generator
Description

5kw all-copper portable diesel generator single-phase and three-phase customizable


Overview


Core Advantages of 3-10kW Small Diesel Generators

• Good Economy: Low fuel consumption and low long-term operating costs.

• Durable and Reliable: Simple structure, low failure rate, and long service life.

• Strong Load Adaptability: Capable of short-term overload and compatible with equipment with high starting current.

• Flexible Application Scenarios: Portable or fixed installation, suitable for emergency power supply, outdoor construction, etc.

• Easy Fuel Storage: Low volatility, high ignition point, safe and long-term storage.


Specification


Model CA4800XE CA6800XE-3D
Rated frequency(Hz) 50 50
Rated voltage(V) 230 230/400
Rated power(KW) Single phase 3 Single phase 4.6 Three phase 5.0
Number of phases single phase Single phase/Three phase/Equal power
Size(mm) 670×470×560 750×515×640
Net weight(kg) 75 115
Fuel tank capacity (L) 12.5 12.5/16
Noise(decibels @7m) 85 85
Engine model 178FE 186FAE
type Straight,single cylinder,air-cooled,four stroke
Cylinder diameter(mm) 78 86
Piston stroke(mm) 62 72
Displacement(ml) 296 418
Fuel consumption rate g/kw*h ≤276 ≤275
Rated speed(r/min) 3000 3000
Starting system 12Vstarter motor 12V starter motor
Insulation Class H H
Continuous working time(h) 8 8
Fuel grade Diesel:0"(summer),-10"(winter)
Oilgrade SAE 10W30 (CD grade or above)
Optional configuration ATS/remote control/digital control panel/wheels and handles

Picetures

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable

5kw all-copper portable diesel generator single-phase and three-phase customizable


FAQ


1.Q: What is your MOQ of this item?
A:1 Sets.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
