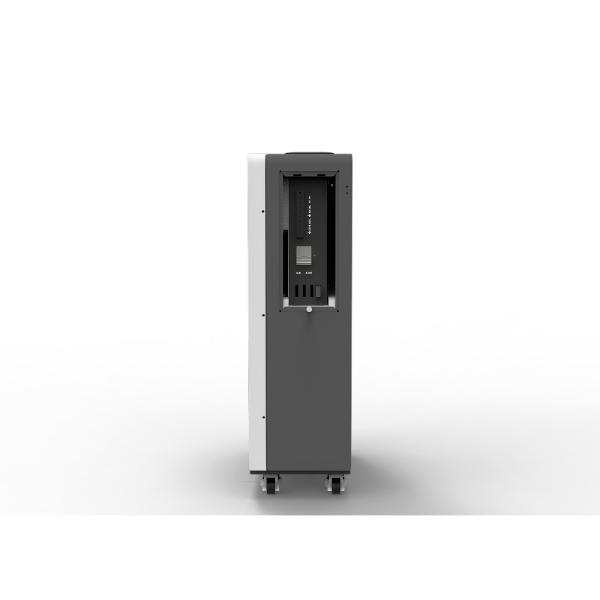

LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
Specifications
Brand Name :
Solarose
Model Number :
3.8kw power
Certification :
CE, RoHS, IEC 62619 Battery Safety Standard
Place of Origin :
Guangdong,China
MOQ :
10
Price :
usd 1315 per unit
Payment Terms :
T/T, L/C
Supply Ability :
1000PCS Per week
Delivery Time :
25 days
Packaging Details :
In a one pack
Product Type :
Integrated All in One Household Solar Generator
Battery Capacity :
8.038kWh (51.2V 314Ah) LiFePO4 Battery
Inverter Type :
3.6KW Pure Sine Wave Inverter
AC Output :
3600VA, 230V ±2%, 50Hz/60Hz
UPS Switch Time :
Typical 10ms for Seamless Power Switching
Solar Input Power :
Max 5000W MPPT Charging
Solar Voltage Range :
40-450V DC MPPT Range
Weight and Dimensions :
80kg, 480×240×835mm (L×W×H)
Description

High Capacity 3.6KW 8.038KWH LiFePO4 Solar Power System With 5000W MPPT Charger For Home Backup

Product description:

The High Capacity 3.6KW 8.038KWH LiFePO4 Solar Power System is an efficient energy storage solution designed for home backup and off-grid applications. It features a powerful 3.6KW pure sine wave inverter and a 51.2V 314Ah LiFePO4 battery, ensuring long-lasting, stable power. Equipped with a 5000W MPPT solar charger (40-450V DC range), it maximizes solar energy absorption for higher efficiency. The system also supports fast 10ms UPS switching, preventing power interruptions. With advanced BMS protection and a compact space-saving design, it is ideal for residential and commercial use.


Technical parameter

Attribute Value
Power Output 3.6KW (3600VA)
Battery Type LiFePO4
Battery Capacity 8.038kWh (51.2V, 314Ah)
Battery Voltage 51.2V
AC Input 230V ±2%, 50Hz/60Hz Pure Sine Wave
UPS Switching Time Typical 10ms
PV Max Input Power 5000W
MPPT Voltage Range 40-450V DC
PV Charge Current 100A (Battery Port)
Wiring Method Terminal
Net Weight ≈80kg
Dimensions (L×W×H) 480×240×835mm



Feature Advantages:

  • Integrated All in One Design: Combines inverter, battery, and solar MPPT for a compact and efficient energy solution.

  • Stable Power Output: 3.6KW pure sine wave inverter ensures safe and reliable operation for household and commercial appliances.

  • High-Capacity Storage: 8.038kWh LiFePO4 battery (51.2V 314Ah) provides long-lasting power backup.

  • Fast UPS Switching: 10ms typical switch time ensures uninterrupted power in case of grid failure.

  • Powerful Solar Charging: Supports up to 5000W PV input with an MPPT voltage range of 40-450V DC for maximum efficiency.

  • Smart Energy Management: Optimized for off-grid and backup applications with intelligent power control.

  • Space-Saving Tower Design: Compact vertical structure with high energy density, perfect for home and business use.

  • Comprehensive Protection: Built-in safeguards against overcharge, over-discharge, and short circuits for enhanced safety and longevity.

Product Details:
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use

Factory workshop:
LiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM UseLiFePO4 Off Grid Solar Power System 3.6KW 8.038KWH With 5000W MPPT Charger for Wholesale and OEM Use
