All In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM Use
All In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM Use
All In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM Use
All In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM Use
Specifications
Brand Name :
Solarose
Model Number :
10kw power
Certification :
CE, RoHS, IEC 62619 Battery Safety Standard
Place of Origin :
Guangdong,China
MOQ :
10
Price :
us$2450 per unit
Payment Terms :
T/T, L/C
Supply Ability :
1000PCS Per week
Delivery Time :
25 days
Packaging Details :
In a one pack
Product Type :
All-in-One Household Solar Generator
Battery Specs :
51.2V / 300Ah Lithium - ion Battery
Power Capacity :
10KW Continuous Power Output, 15.36KWH Battery Capacity
Charge parameter :
Charge Voltage: 58.4V, Charge Current: 100A, Max Charge Current: 100A
Inverter Deta :
Output Voltage: 230Vac±5%, Frequency: 50Hz/60Hz, Input Power (PV): 5KW, Input Voltage Range (PV): 90 - 450Vdc
Communication :
RS485/CAN Communication, RJ45 Connect Port, WIFI - enabled
Installation :
Wall-Mounted Hybrid Inverter Design
Safety Features :
Overcharge Protection, Overdischarge Protection (Cut - off at 43.2V)
Description

10KW 15.36KWH Integrated All - In - One Solar Generator With Solar Battery Storage, 90 - 450Vdc PV Input

Product description:

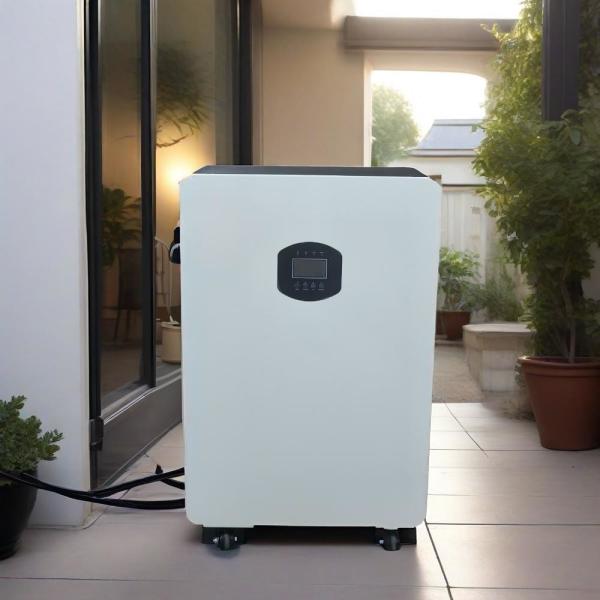

This Integrated All - in - One Solar Generator is a stable and versatile energy solution. It has a 10KW inverter and a 15.36KWH battery capacity, it meets diverse power needs, whether for home use or small businesses.
The 51.2V, 300Ah battery ensures stable energy storage. With a 100A charge current (max also 100A), it recharges efficiently. The wide 90 - 450Vdc PV input range allows for easy integration with various solar panels.
Equipped with RS485/CAN communication, an RJ45 port, and WIFI, remote monitoring and control are at your fingertips. The 5KW inverter outputs a stable 230Vac±5% at 50Hz/60Hz. Plus, multiple safety features like overcharge and discharge cut - off at 43.2V safeguard the system, making it a reliable choice for sustainable power.


Technical parameter

Generator Type Integrated All - in - One Solar Generator
Inverter Power 10KW
Battery Capacity 15.36KWH
Battery Voltage 51.2V
Battery Capacity (Ah) 300Ah
Charge Voltage 58.4V
Discharge Cut - off Voltage 43.2V
Charge Current 100A
Max Charge Current 100A
Discharge Current 100A
Max Discharge Current 110A
Max Peak Current 150A
Communication Method RS485/CAN
Inverter Frequency 50Hz/60Hz
Input Power (PV) 5KW
Input Voltage Range (PV) 90 - 450Vdc
Communication Connect Port RJ45, with WIFI



Feature Advantages:

  1. Powerful Output:10KW inverter powers multiple appliances, handling high - wattage ones easily.
  1. Large - Capacity Storage:15.36KWH battery (51.2V/300Ah) offers long - term power during off - grid times.
  1. Fast Charging:100A charge current (max 100A) shortens charging time.
  1. Wide PV Compatibility:90 - 450Vdc PV input suits most solar panels.
  1. Remote Monitoring:RS485/CAN, RJ45, WIFI enable remote operation and status check.
  1. Stable Output:230Vac±5% voltage at 50Hz/60Hz for sensitive devices.
  1. Safety Protection:Over - charge (58.4V), over - discharge (43.2V), over - current protection.
  1. Flexible Installation:Wall - mountable, easy to install in various locations.


Product Details:
All In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM Use

Factory workshop:
All In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM UseAll In One Solar Generator Integrated 10KW 15.36KWH With Solar Battery Storage for Wholesale and OEM Use
