Choosing TAKUMI means buying directly from the source. Our factory in China runs dedicated production lines for industrial and automotive spark plugs with full traceability.

Product Overview

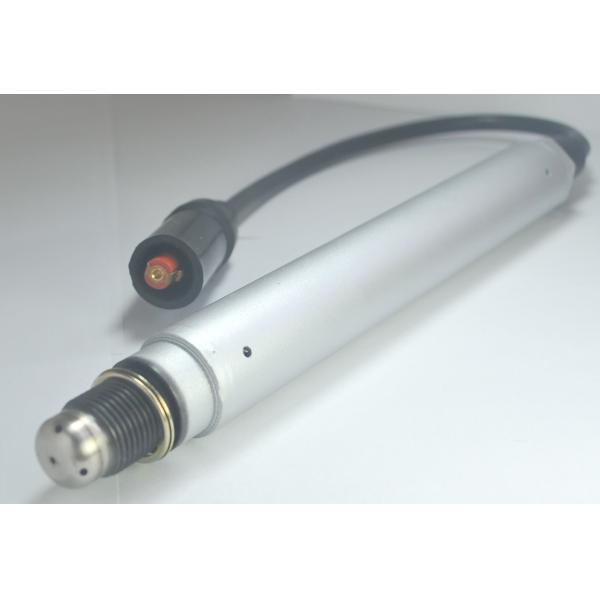

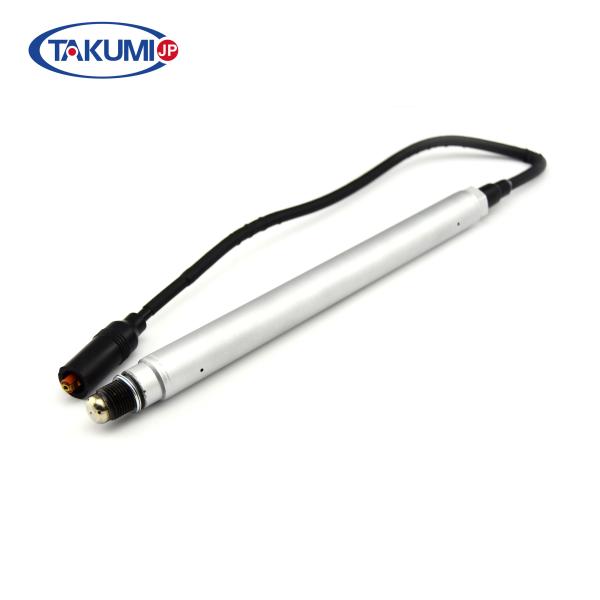

TAKUMI S-R6A15 spark plug. TAKUMI S-R6A15 prechamber spark plug for MWM TCG 2016 / TCG 3016 and CAT CG 132 gas engines. M18x1.5 thread, 0.3 mm gap, resistor type.

Every TAKUMI unit is produced in an ISO 9001 and IATF 16949 certified factory, 100% tested before shipment. The plug is engineered for long service life in continuous operation, with a nickel-plated shell, copper-core electrode and high-grade ceramic insulator.

Key Specifications

• TAKUMI TypeS-R6A15
• Thread SizeM18 x 1.5
• Reach26 mm
• Hex Size22.2 mm (7/8")
• Seat TypeFlat / Gasket
• Spark Gap0.3 mm
• Electrode TypePrechamber (5-hole)
• Cable Length540 mm
• Shield Length278 mm
• ResistorYes

Cross Reference

• MWM1245-3562 / 1245-3564 / 1245-3548 / 1234-3755 / 1234-3055 / 1234-4096 / 1231-9475 / 1234-2668 / 1234-3758
• C-A-T1245-3546
• 2G32090-00017

Applications

• MWM TCG 2016 V8 / V12 / V16 A-B-C
• MWM TCG 3016
• CAT CG 132 V8 / V12 / V16
• Biogas and natural gas CHP

Advantages

• Drop-in replacement - no engine parameter changes required
• Reliable ignition under high pressure and lean combustion
• Anti-corrosion nickel-plated housing
• 95% alumina insulator for heat and shock resistance
• Monolithic resistor for stable conductivity
• Factory direct with competitive pricing and short lead time

OE numbers are for reference only. Final fitment should be confirmed before ordering.

Factory & Quality Control

The testing equipment is calibrated regularly and all inspection records are kept for at least three years, supporting fast after-sales analysis.

Production Workshop

TAKUMI runs a fully integrated manufacturing base: CNC machining, automated assembly and 100% functional testing under one roof.

From raw material to finished spark plug, every process is controlled in-house with ISO-certified procedures.
