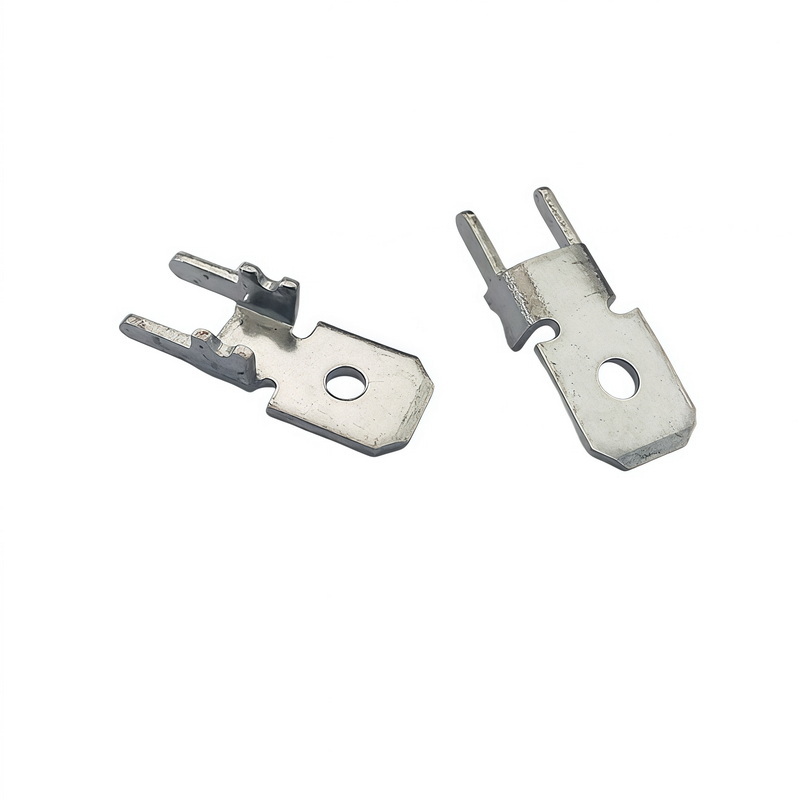

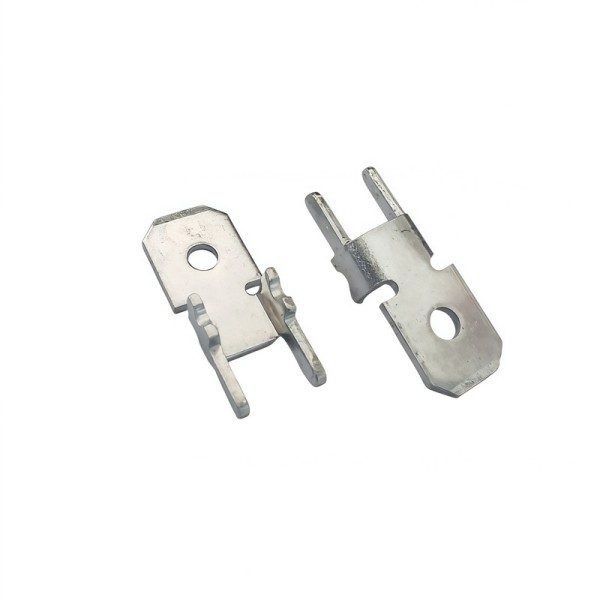

250 (6.35×0.8mm) H-Type Anti-Drop Anti-Daze PCB Male Tab Terminal
250 (6.35×0.8mm) H-Type Anti-Drop Anti-Daze PCB Male Tab Terminal
250 (6.35×0.8mm) H-Type Anti-Drop Anti-Daze PCB Male Tab Terminal
250 (6.35×0.8mm) H-Type Anti-Drop Anti-Daze PCB Male Tab Terminal
Specifications
Brand Name :
SHENGRUI
Model Number :
1010000101250112110420
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
2000
Price :
US$0.0178 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
20-35 work days
Packaging Details :
2000/Bulk Pack
Model :
H250 Male Tab Terminal
Size Specification :
6.35×0.8mm
Product Structure :
H-Shaped, Anti-Daze, Anti-Drop/Anti-Tip
Installation Type :
PCB Through-Hole Soldering
Rated Current :
15A
Rated Voltage :
250V AC/DC
Contact Resistance :
≤50mΩ
Insulation Resistance :
≥100MΩ
Withstand Voltage :
1500V AC/1Min
Material :
Brass
Surface Treatment :
Tin Plated
Description

High-precision H250 male tab terminal, designed with special H-shaped anti-daze & anti-drop structure, standard 6.35*0.8mm size, through-hole PCB soldering type, manufactured with high-conductivity copper material, stable performance, strong insertion and extraction stability, anti-misinsertion & anti-loosening, widely used in PCB circuit boards, power connectors, wiring harnesses, electrical appliances and power control equipment. The product features precise size, smooth surface, no burrs, easy soldering, long service life, perfect for automated assembly and mass industrial production, meeting high-standard industrial electrical connection requirements.

Product Features
  • Exclusive H-shaped anti-daze design, effectively prevent wrong insertion and reverse installation
  • Anti-drop fixed structure, firm installation, not easy to loosen and fall off
  • Standard 6.35*0.8mm H250 universal size, strong compatibility
  • High-purity brass material, excellent electrical conductivity, low resistance
  • High-temperature resistant tin plating process, perfect PCB soldering performance
  • Industrial-grade quality, stable and durable, suitable for long-term use in harsh environments
  • Standard through-hole design, easy to install and match with PCB circuits
