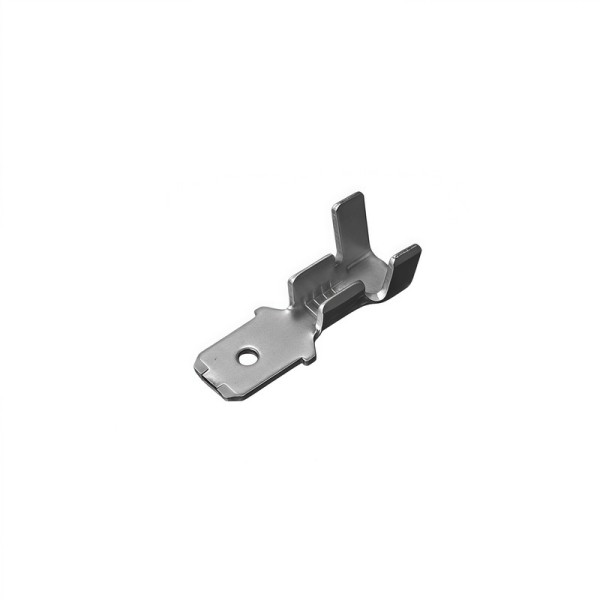

250 (6.35×0.8mm) Straight Crimp Male Tab Terminal for Wire Crimping, 20–16 AWG
250 (6.35×0.8mm) Straight Crimp Male Tab Terminal for Wire Crimping, 20–16 AWG
250 (6.35×0.8mm) Straight Crimp Male Tab Terminal for Wire Crimping, 20–16 AWG
250 (6.35×0.8mm) Straight Crimp Male Tab Terminal for Wire Crimping, 20–16 AWG
250 (6.35×0.8mm) Straight Crimp Male Tab Terminal for Wire Crimping, 20–16 AWG
250 (6.35×0.8mm) Straight Crimp Male Tab Terminal for Wire Crimping, 20–16 AWG
Specifications
Brand Name :
SHENGRUI
Model Number :
1010000101250111131020
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
5000
Price :
US$0.02 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
20-35 work days
Packaging Details :
5000/Reel
Name :
250 Straight Crimp Male Tab Terminal
Tab Size :
6.35 × 0.8mm (0.250" × 0.032")
Crimp Type :
Straight crimp barrel
Applicable Wire Range :
20–16 AWG (0.5–1.3mm²)
Rated Current :
15A
Rated Voltage :
250V AC/DC
Contact Resistance :
≤ 10 mΩ
Insulation Resistance :
≥ 1000 MΩ
Withstand Voltage :
1500V AC / 1min
Working Temperature :
-40℃ ~ +105℃
Material :
Brass
Surface Plating :
Tin-plated
Description

This is the 250 (6.35*0.8mm) straight crimp-type male tab terminal, specifically designed for secure wire crimping instead of PCB soldering. It features a straight crimp barrel with serrations, ensuring a firm grip on both the wire conductor and insulation. Made of high-conductivity brass with tin plating, it delivers low contact resistance, reliable electrical performance, and good corrosion resistance. Optimized for 20–16 AWG wires, it is widely used in wiring harnesses, household appliances, automotive electronics, and industrial equipment.
