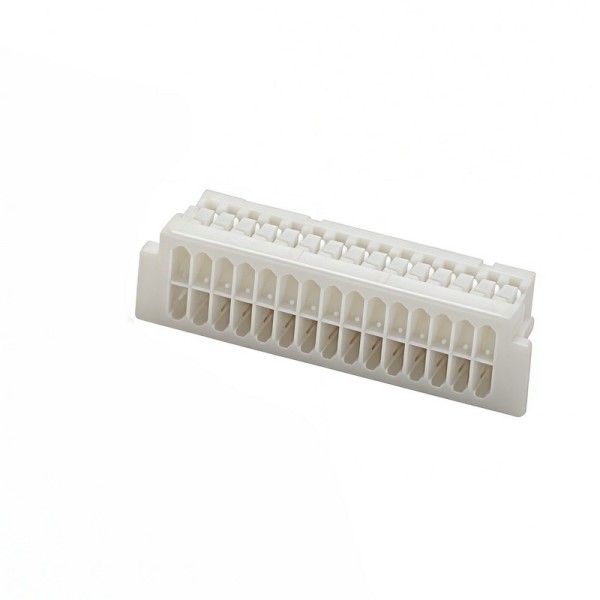

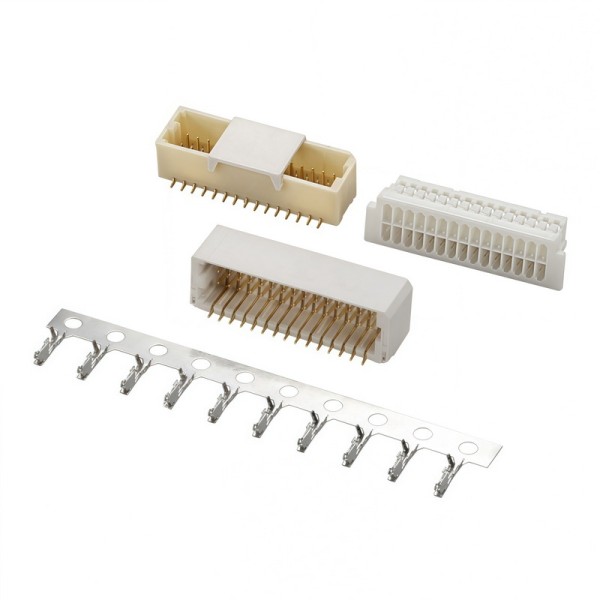

SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
SHD 1.0mm Pitch Wire-to-Board Connector | Double Row, JST Compatible
Specifications
Brand Name :
SHENGRUI
Model Number :
2060xxxxxx100xxxxx30x0x
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.25 – US$0.55 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
10-30 work days
Packaging Details :
Terminal: 15K/reel, Housing: 1000/Bulk Pack, Wafer: 1000/Reel
Pitch :
1.0 mm, double row
urrent Rating :
1.0 A (AWG #28)
Voltage Rating :
50 V AC/DC
Temperature Range :
-25°C to +85°C
Housing Material :
LCP / PA66, UL94 V-0
Contact Material :
Phosphor bronze, tin or gold plated
Wire Range :
AWG #32–#28
Mounting :
Straight/ Right angle available SMT
Description

SHD 1.0mm pitch double row wire-to-board connector, JST SHD equivalent. 1A, 50V, -25°C to +85°C, RoHS/REACH. Ideal for automotive, industrial control, sensors and compact electronics.

The SHD 1.0 series is a high-performance wire-to-board connector featuring a 1.0mm pitch and double-row structure. Fully compatible with JST SHD series connectors, it delivers stable signal and power transmission for a wide range of electronic applications.

Designed with a positive locking mechanism and polarization structure, the connector ensures anti-vibration performance and prevents incorrect insertion. Suitable for compact space-constrained designs, it is widely used in automotive electronics, industrial control systems, sensor modules, and consumer devices.
