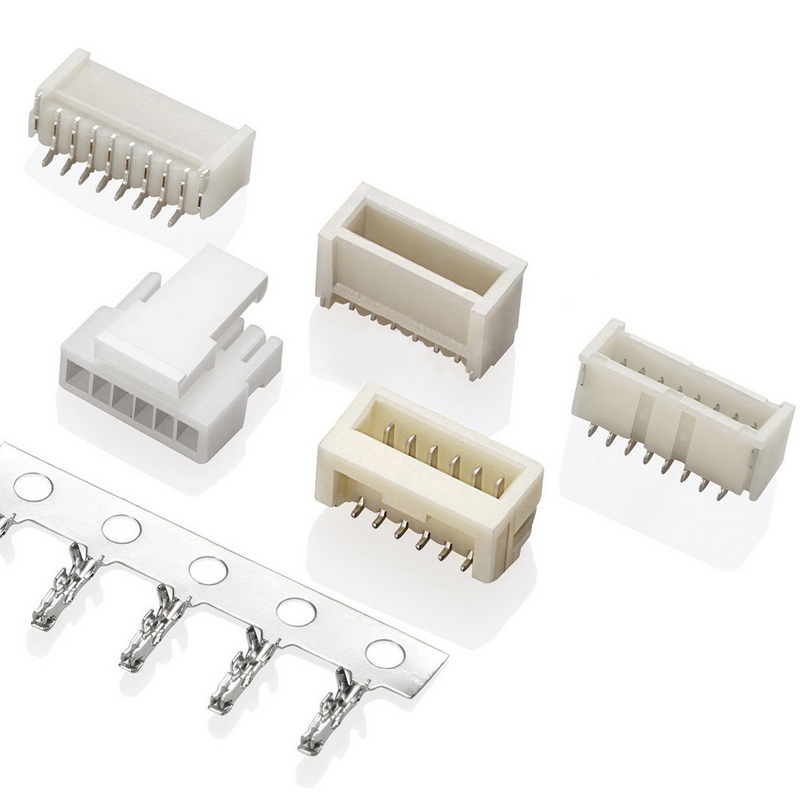

1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
1.0SH Pitch Wire-to-Board Connector With Lock
Specifications
Brand Name :
SHENGRUI
Model Number :
2060xxxxxx100xxxxx0x01
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.0045 – US$0.15 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
5-8 work days
Packaging Details :

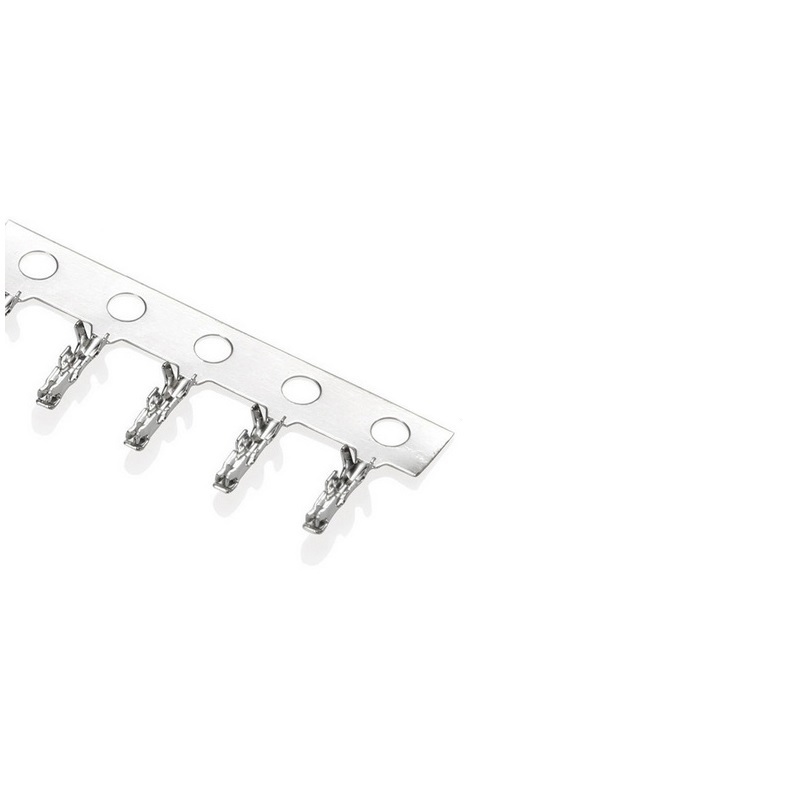

Terminal: 15K/reel, Housing: 2000/Bulk Pack, Wafer: 1000/Reel
Pitch :
1.0 mm
Type :
Wire-to-board connector
Lock :
With locking latch
Rated Voltage :
50V AC/DC
Rated Current :
1.0A
Contact Material :
Phosphor Bronze, Tin Plated
Housing Material :
Plastic, UL94 V-0
Wire Range :
AWG 32# – 28#
Contact Resistance :
≤ 20 mΩ
Insulation Resistance :
≥ 100 MΩ
Withstand Voltage :
500V AC / 1 min
Description

Product Overview


The 1.0SH series wire-to-board connector is designed with a built-in secure lock buckle, featuring a compact 1.0mm pitch size that perfectly fits limited-space PCB circuit layouts. The dedicated lock structure effectively prevents accidental disconnection due to vibration or external force, ensuring stable and continuous signal and power transmission for electronic equipment.

This connector adopts high-quality raw materials, with excellent electrical performance and durable service life, fully compliant with RoHS and REACH environmental protection standards, meeting the procurement needs of global electronic manufacturing and industrial control fields.

Key Features


  • Standard 1.0mm pitch, compact and space-saving design, easy for PCB layout
  • Equipped with secure lock buckle, anti-vibration and anti-disconnection, stable connection
  • Precise polarization structure, effectively avoid wrong insertion, improve assembly efficiency
  • High-quality conductive contacts, low contact resistance, reliable electrical conductivity
  • Wide applicable temperature range, suitable for various working environments
  • RoHS & REACH compliant, eco-friendly and safe
  • Available in multiple pin positions, flexible selection for different application scenarios
