2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
2.0mm Pitch Double Row Vertical SMT Female Header | 3.55mm Height 4.0mm Width, With/Without Locating Post
Specifications
Brand Name :
SHENGRUI
Model Number :
202050220420032xxx03x0
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.065 – US$0.31 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
25-50 work days
Packaging Details :
1000/Tube Pack
Current Rating :
2.0Amp
Insulation Resistance :
1000MΩMin
Dielectric Withstanding Voltage :
500VAC
Contact Resistance :
20mΩMax
Operating Temperature :
-40ºC to +105ºC
Contact Material :
Phosphor Bronze
Insulation Material :
PBT, Nylon, LCP, UL 94V-0
Description

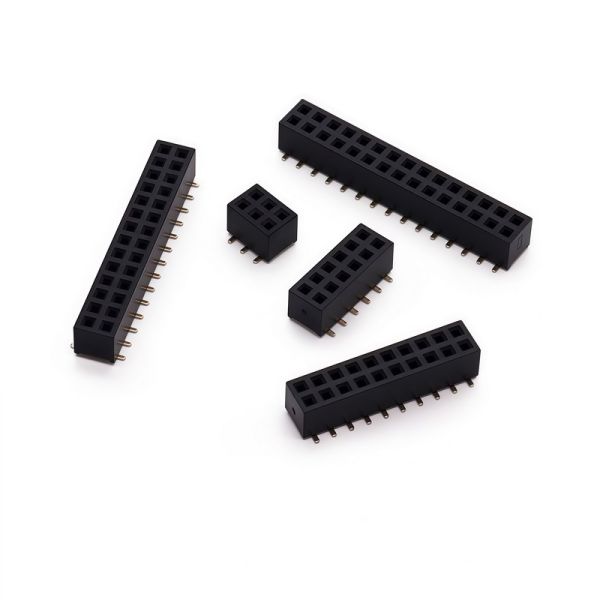

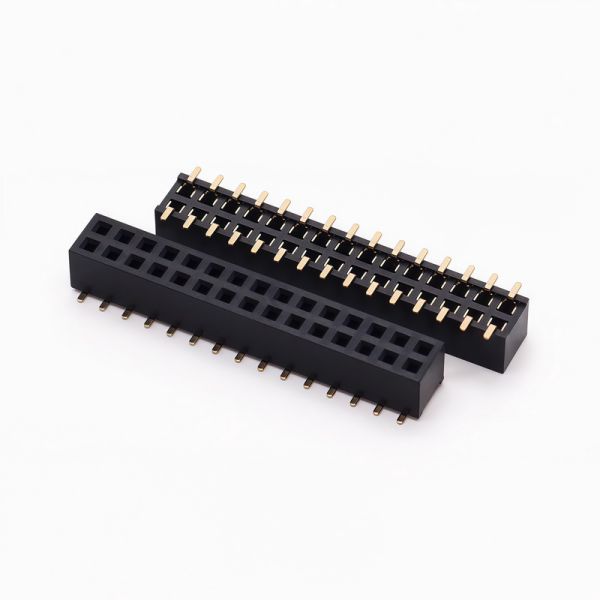

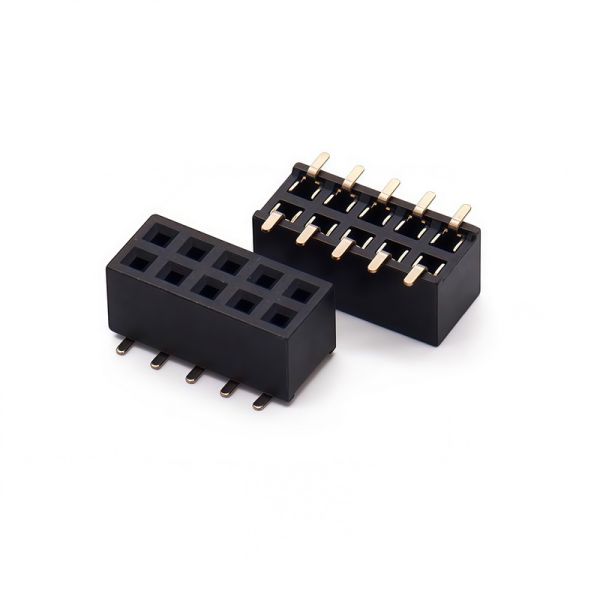

2.0mm Pitch SMT Female Header

This 2.0mm pitch double row vertical SMT female header comes in two versions: with locating post and without locating post. It features 3.55mm vertical height and 4.0mm overall width, designed for vertical surface mounting on PCB.

Key Features & Benefits
  • The locating post enhances positioning accuracy and prevents offset during soldering and assembly.
  • Adopting reliable structure and fine craftsmanship, it offers stable electrical performance and strong connectivity.
Applications
  • Consumer electronics
  • Industrial equipment
  • Circuit interconnection scenarios

It is a practical connector choice for diverse SMT assembly demands.
