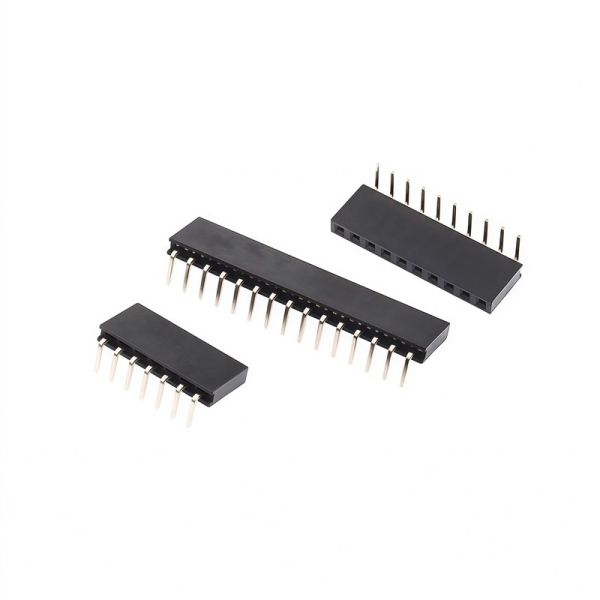

2.0mm Pitch 6.35mm Height Single Row 90° Right Angle Female Header Connector
2.0mm Pitch 6.35mm Height Single Row 90° Right Angle Female Header Connector
2.0mm Pitch 6.35mm Height Single Row 90° Right Angle Female Header Connector
2.0mm Pitch 6.35mm Height Single Row 90° Right Angle Female Header Connector
2.0mm Pitch 6.35mm Height Single Row 90° Right Angle Female Header Connector
2.0mm Pitch 6.35mm Height Single Row 90° Right Angle Female Header Connector
Specifications
Brand Name :
SHENGRUI
Model Number :
202050220420021xx10501
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.033 – US$0.66 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
20-45 work days
Packaging Details :
1000/Bulk Pack
Current Rating :
2.0Amp
Insulation Resistance :
1000MΩMin
Dielectric Withstanding Voltage :
500VAC
Contact Resistance :
20mΩMax
Operating Temperature :
-40ºC to +105ºC
Contact Material :
Phosphor Bronze
Insulation Material :
PBT, Nylon, LCP, UL 94V-0
Description

This is a single row right angle female header with 2.0mm pitch and 6.35mm insulator height, designed for 90 degrees side vertical soldering on PCB boards. The right-angle bent pin structure saves horizontal PCB space and is widely used for compact electronic equipment, home appliances, control boards and industrial circuit connections.

The terminals are made of high-quality phosphor bronze with gold-plated contact area for stable conductivity, oxidation resistance and durable plug-in performance. The PA6T high-temperature resistant plastic housing ensures no deformation under long-term working conditions. Custom pin counts from 1Pin to 40Pin are available to meet diverse project requirements.

  • 2.0mm Pitch 6.35mm Straight Single Row Female Header
  • 2.0mm Pitch Dual Row 90° Right Angle Female Header
  • 2.0mm Pitch SMT Horizontal Female Header Connector
