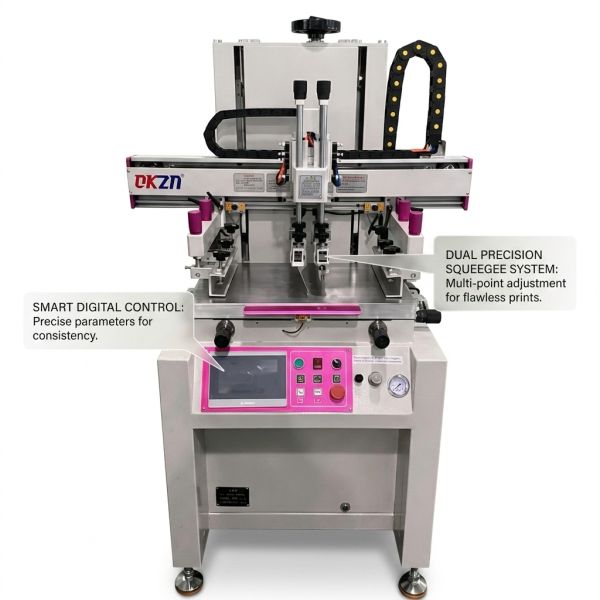

50*70 Flatbed Screen Printing Machine

I. Equipment Parameters
Model: 50*70 Flatbed Screen Printing Machine
Maximum Printing Area: 500×700mm
Maximum Screen Frame Size: 700×1000mm
Printing Speed: 1500-2000 prints/hour (adjustable)
Printing Accuracy: ±0.05mm
Worktable Size: 600×800mm (with vacuum suction platform)
Worktable Stroke: Adjustable front-to-back 0-150mm, left-to-right ±50mm
Squeegee Pressure: Adjustable 0-0.6MPa
Drive Method Features: Pneumatic + Servo Drive
Control Method: PLC + Touch Screen Control
Power: 1.5kW (220V/50Hz)
Dimensions: L1100×W850×H1600mm
Weight: Approx. 350kg

II. Product Description
This 5070 flatbed screen printing machine is designed for mass production of medium to large format flat materials. It features a thickened body and precision guide rail structure, ensuring stable and vibration-free operation. Printing accuracy reaches ±0.05mm, producing clear lines without burrs, maintaining consistent results even in mass production.

The machine is equipped with a vacuum suction platform, preventing displacement of materials such as thin paper, film, and PCB boards, and is suitable for printing on various materials. With pneumatic + servo dual drive, printing speed, squeegee pressure, and worktable travel can all be adjusted with a single touch on the touch screen, allowing even beginners to quickly learn and efficiently adjust settings.

The machine body adopts an anti-rust electrostatic spraying process, combined with an easy-to-maintain modular design, resulting in a low failure rate and long service life. It is suitable for small to medium batch production needs and widely applicable to flat printing scenarios in industries such as electronics, hardware, plastics, and advertising.

III. Equipment Features:

Large Format Universal Model: 500×700mm printing area, adaptable to more large-sized workpieces than the 4060 model, balancing efficiency and versatility.

High Precision with No Misalignment: Vacuum suction platform + precision guide rails, ±0.05mm printing accuracy, clear lines, and high yield rate.

Full Touchscreen One-Button Adjustment: Speed, pressure, and stroke can all be parameterized, eliminating the need for repeated screw tightening during model changes and doubling efficiency.

Stable, Durable, and Easy to Maintain: Thickened body + modular structure, vibration-free operation, low failure rate, and low maintenance costs.

IV. Applicable Scenarios
Electronics Industry: PCB board, panel, membrane switch printing
Plastics/Hardware Industry: Housing, signage, panel text/graphic printing
Advertising/Packaging Industry: PVC sheet, acrylic, self-adhesive label printing
Other: Single-color/multi-color printing on flat materials such as glass and metal sheets
