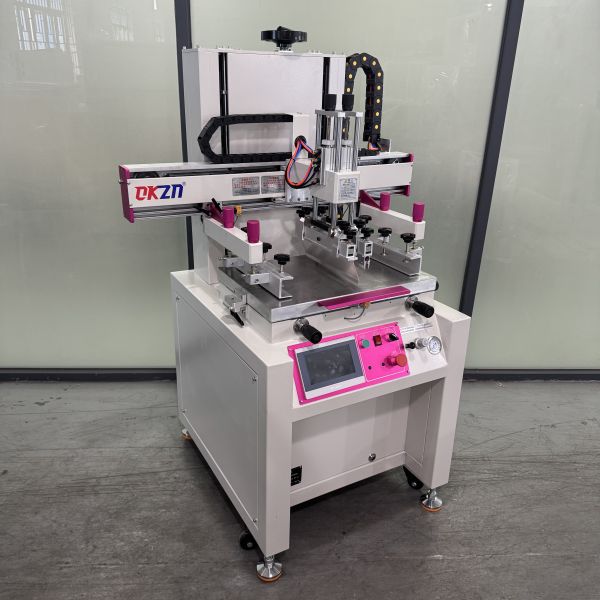

40*60 Monochrome Flatbed Screen Printing Machine

Dual Models for High-Efficiency Coverage: Offers both 40*60 and 50*70 sizes, perfectly matching mainstream product sizes from 500×300 to 600×400mm. Strong stencil adaptability meets diverse production needs.

Top-Tier Stable Configuration: Equipped with a vacuum suction + precision squeegee system, achieving a printing accuracy of ±0.01mm. Combined with multi-segment screen feeding (left stop/right stop/triangle), it ensures clear, accurate printing and maximizes yield.

Intelligent and User-Friendly Operation: Supports manual/semi-automatic/fully automatic modes. Features a foot switch and timer reset function, allowing even beginners to quickly learn and significantly improve production efficiency.

High Adaptability and Low Energy Consumption: Supports quick stencil replacement, compatible with large stencils from 650×550mm to 850×550mm; operates stably with only 220V low voltage input (0.35KW) and 4-6 bar air pressure, saving costs and simplifying maintenance.

1. Equipment Model and Compatibility

Equipment Model | Workbench Size | Compatible Product Size | Compatible Stencil Size

OK-SASPP-40*60 | 600×400mm | Within 500×300mm | Within 650×550mm

OK-SASPP-50*70 | 700×500mm | Within 600×400mm | Within 850×550mm

2. Basic Parameters

External Dimensions: 700×900×1680mm

Maximum Printing Accuracy: ±0.01mm

Power Requirements: 220V / 0.35KW

Working Air Pressure: 4-6bar

Equipment Weight: 230kg, stable structure

3. Core Function Optimization

Precision Printing System: Equipped with a vacuum suction base, ensuring firm product adhesion and preventing displacement; features dual squeegee/ink blade switching, allowing for one-step ink return and squeegee printing, meeting high-precision screen printing requirements.

Multi-mode flexible control: Supports manual adjustment, semi-automatic operation, and fully automatic cycle (adjustable timer from 1-9 seconds); dual start-up via foot switch and physical buttons ensures safer and more convenient operation.

Customizable screen routing scheme: Allows independent setting of left/right stop for the printhead, or selection of a triangular routing pattern, adapting to the printing process requirements of different products with flexible switching.

Intelligent counting management: Features a built-in timer reset function; press and hold for 3 seconds to reset, supporting piece-counting; clearly monitors production progress for convenient batch management.

Efficient screen changing design: One-button control of the printhead raising and lowering via a knife lift switch; screen replacement and cleaning require no complex adjustments, saving line changeover time.
