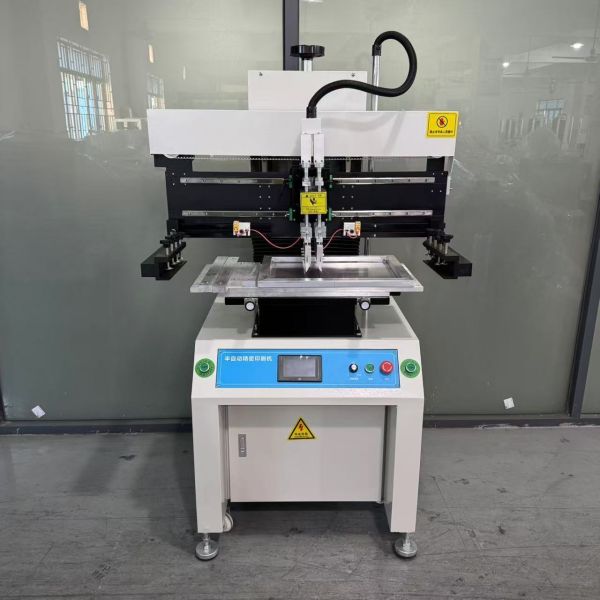

Semi-automatic Precision Solder Paste Printer (SMT Dedicated)

Application Scenarios:

Designed specifically for SMT surface mount production lines, this machine is used for precise solder paste printing on PCB circuit boards. It is a key upstream equipment in electronic assembly processes, widely applicable to small-to-medium batch electronic manufacturing, SMT prototyping, and mass production scenarios. It is compatible with the solder paste printing needs of various standard PCBs and custom-designed boards.

Equipment Features:

Control System: Industrial-grade PLC microcomputer control with a 4.3-inch touchscreen color display, providing intuitive and convenient operation. It supports parameter presets and one-button recall.

Transmission and Positioning: Utilizes high-precision linear guides (same quality as those from Taiwan), coupled with precision micro-adjustment knobs on the X/Y axes, achieving a printing accuracy of ±0.02mm with minimal alignment error.

Drive Power: Three-phase speed-regulating motor (with inverter control), adjustable left-right movement speed from 0-2200mm/min, ensuring smooth and vibration-free operation.

Squeegee System: Left and right floating squeegee design ensures even force distribution and consistent solder paste application, adaptable to different stencils and PCB board types.

Cylinder Configuration: Utilizes a three-in-one solenoid valve control system, paired with a dedicated main cylinder and cutter head cylinder, ensuring stable, durable operation and rapid response.

Machine Compatibility: Workbench size 1300×320mm, compatible with stencil size 1400×320mm, suitable for various standard and extended PCB boards; features casters and adjustable feet for both mobility and production stability.

Power and Air Supply: Single-phase 220V power supply, compatible with 0.5-0.8MPa standard industrial air supply, allowing for rapid production without complex accessories.

Dimensions: 1500×900×1680mm, compact footprint, suitable for compact workshop layouts.
