Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Safety alarm fully automatic solder paste printing machine SMT equipment
Specifications
Safety System :
SIL 2 Safety Relay Circuit
Repeat Accuracy :
±15μm
Place of Origin :
Guangdong, China
Alarm Output :
Audible buzzer plus beacon light
Max PCB Size :
510×460mm
Packaging Details :
Wooden case with foam protection, suitable for sea/air freight
Brand Name :
Okai Intelligent Technology Co., Ltd.
Model Number :
OK-SASPP
Fault Detection :
Multi-zone sensor network
Cycle Time :
under 10s
Supply Ability :
200 Sets per Month
Emergency Stop :
Dual-channel redundant
Certification :
ISO 9001
MOQ :
1 Set
Delivery Time :
5-8 work days
Payment Terms :
T/T
Light Curtain :
Type 4 finger protection 14mm
Printer Model :
OK-SASPP
Price :
open to negotiation
Description

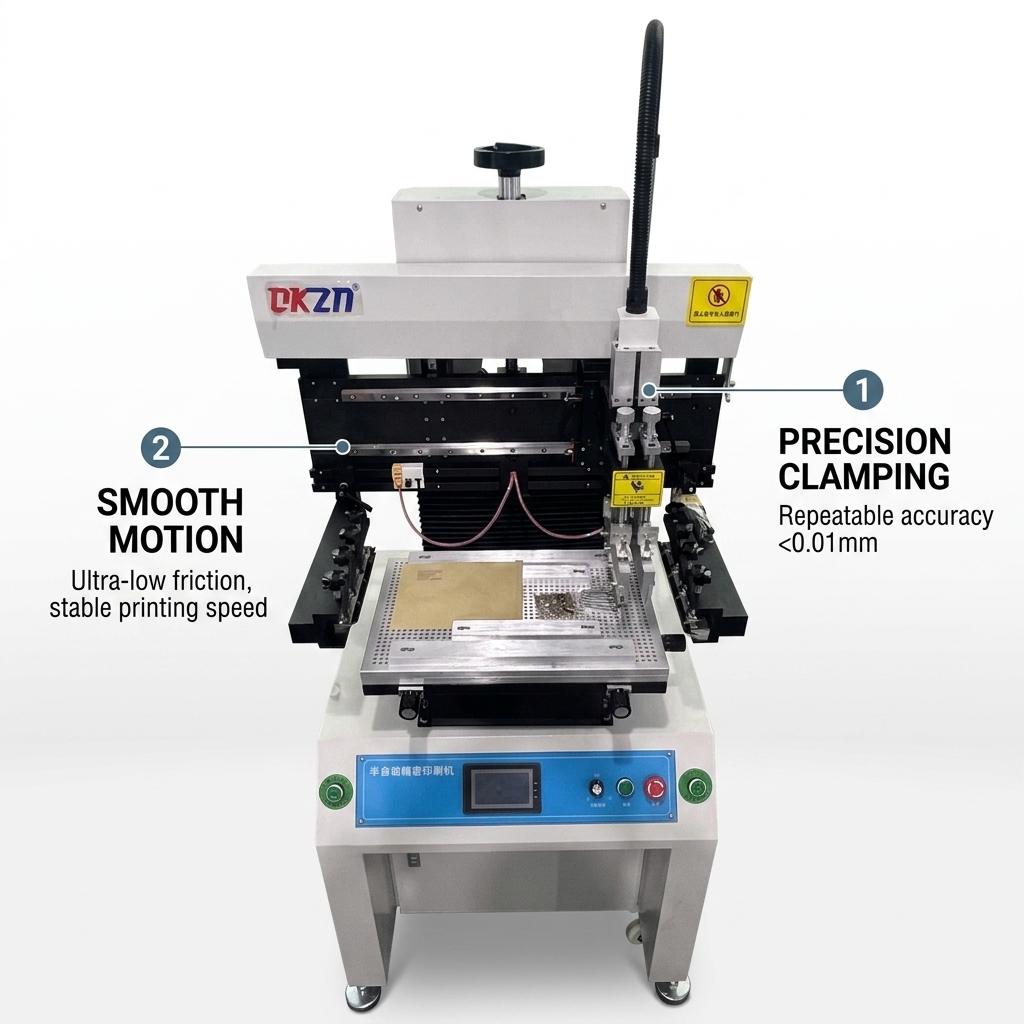

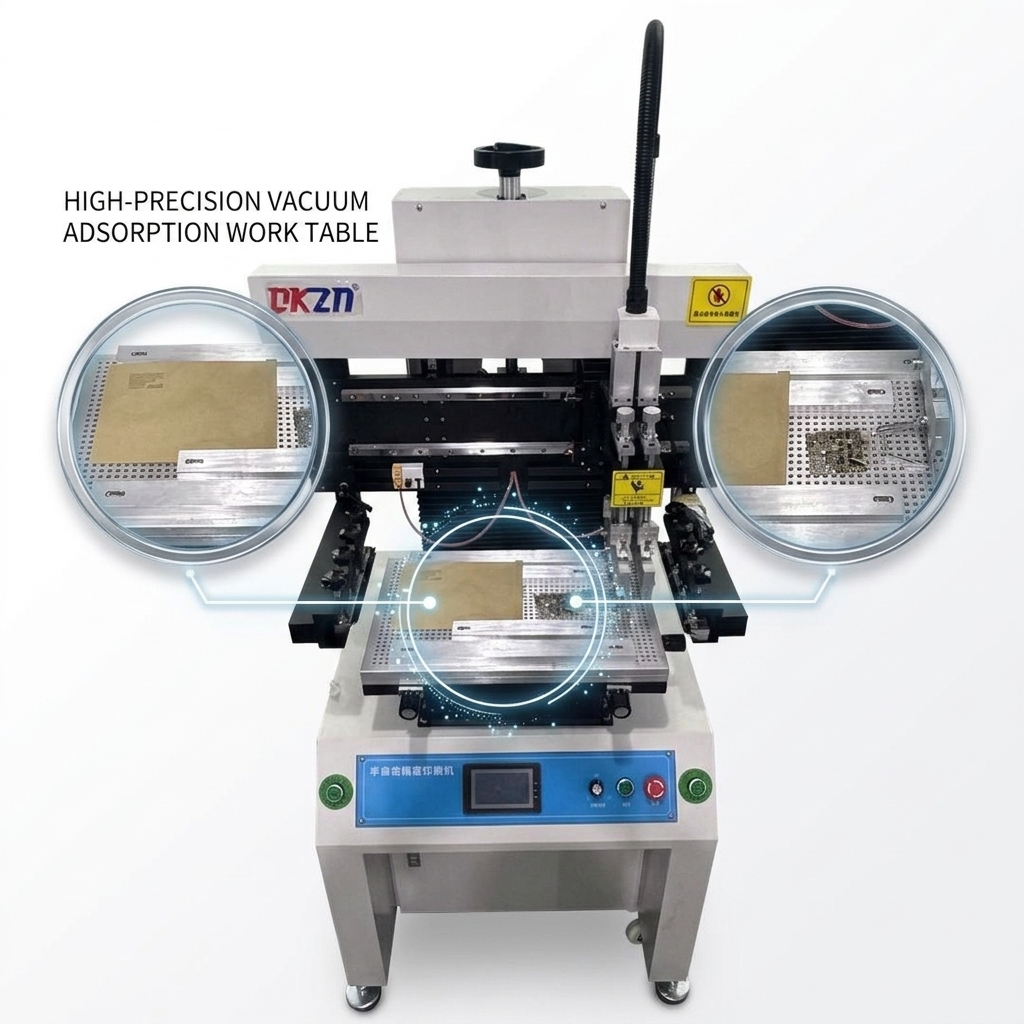

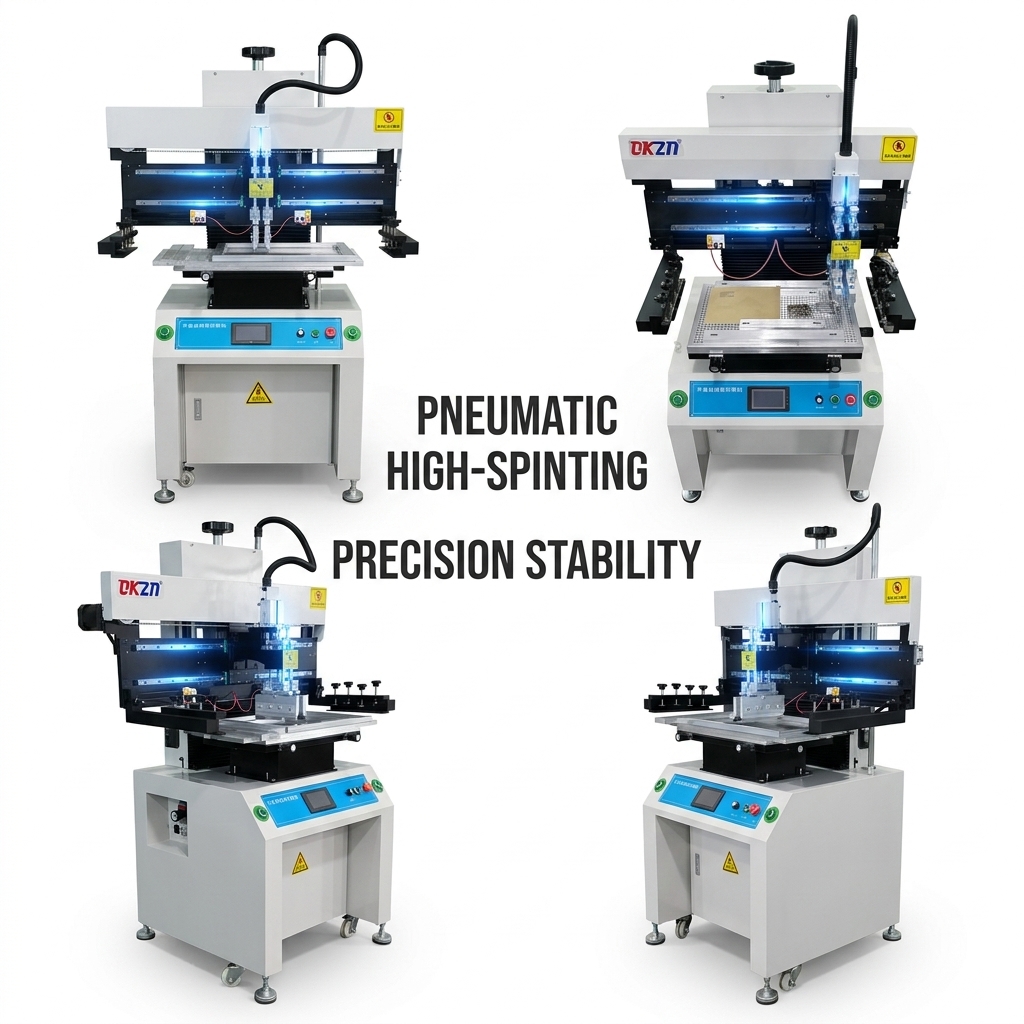

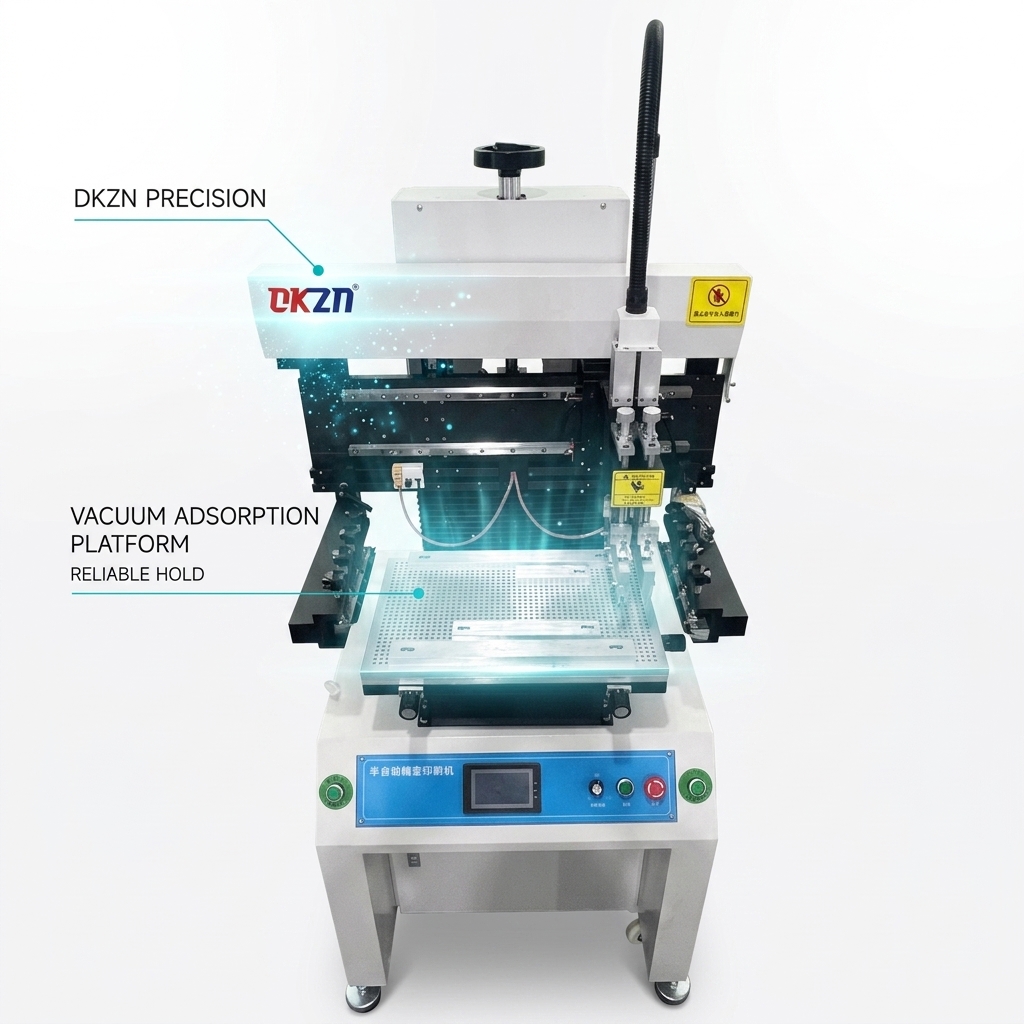

OK-SASPP Safety Alarm Fully Automatic Solder Paste Printer

The OK-SASPPis equipped with a comprehensive safety and alarm system designed for CE-compliant production environments. Featuring Type 4 light curtain protection, dual-channel emergency stop, and multi-zone fault detection, it ensures full operator protection while maintaining high-speed production throughput.

Key Features

  • Type 4 Light Curtain: 14mm resolution finger-protection light curtain at loading and unloading zones — stops all motion within 50ms of beam interruption
  • Dual-Channel Emergency Stop: Redundant safety relay circuit with cross-monitoring — single fault cannot defeat the safety function, meeting SIL 2 and PLd requirements
  • Multi-Zone Fault Detection: Continuous monitoring of pneumatic pressure, servo overload, stencil clamp force, and board presence — any anomaly triggers immediate safe stop with diagnostic LED indication
  • Audible and Visual Alarm: Industrial buzzer plus tri-color beacon tower (red/amber/green) provides clear machine status from across the factory floor
  • Safety Interlock on Guards: All maintenance access panels are interlocked — opening any guard during operation triggers controlled stop

Applications

Required configuration for EU CE marking and markets with strict workplace safety regulations. Recommended for any production environment where operator interaction with moving machinery is frequent, such as manual board loading/unloading stations.

Packaging and Shipping

Export crate with full CE technical file and safety system validation report. Pre-shipment safety function test video provided. Delivery in 7-15 working days.
