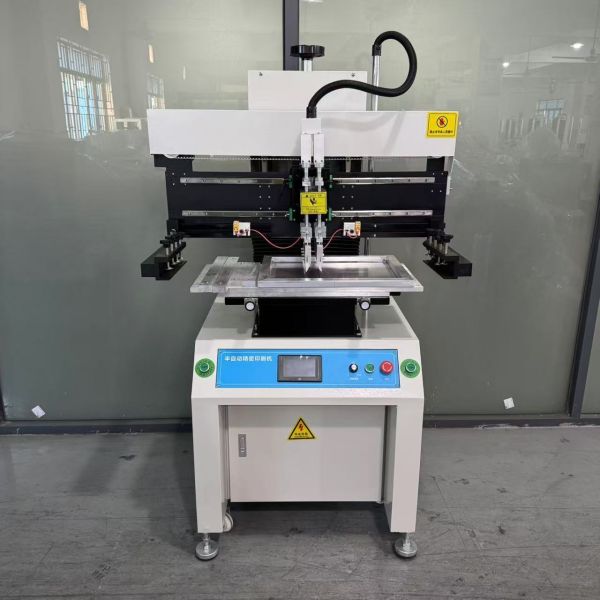

50*70 High-Precision Flatbed Screen Printing Machine, SMT Flatbed Ink Printing Equipment

I. Product Introduction

This flatbed screen printing machine includes two standard models: 40*60 and 50*70, suitable for various workpiece sizes and printing stencils, offering a wide range of applications. The machine features multiple operating modes, convenient debugging, and simple operation. With a stable printing accuracy of ±0.01mm and precise alignment performance, it can meet the screen printing needs of various flat workpieces and is suitable for SMT and various industrial printing processing scenarios.

II. Equipment Parameters

Compatible Specifications

- 40*60 Model: Maximum workpiece size 500×300mm, compatible stencil size ≤650×550mm, worktable size 600×400mm

- 50*70 Model: Maximum workpiece size 600×400mm, compatible stencil size ≤850×550mm, worktable size 500×700mm

50*70 Model Detailed Technical Parameters

- Overall Machine Dimensions: 700×900×1680mm

- Printing Worktable Size: 500×700mm

- Maximum Compatible Stencil Size: 600×500mm

- Power Supply: 220V / 0.35KW

- Working Air Pressure: 4-6bar

- Net Weight: 230kg

- Printing Accuracy: ±0.01mm

III. Equipment Features

The equipment boasts comprehensive functions, supporting head lifting, long and short suction, multi-track positioning, and freely adjustable printing count and delay parameters. It also features a count reset function. Supporting one-button switching between scraping and ink return modes, it offers manual, semi-automatic, and fully automatic operation modes, coupled with foot pedal control, adaptable to various work scenarios from sample making to mass production.

IV. Product Advantages

1. Sturdy Structure and Simple Maintenance: The machine has a robust structure, operates smoothly and stably, has a low failure rate, and is easy to maintain, meeting the needs of continuous operation in factories.

2. Stable Precision and Neat Printing: Conventional printing accuracy can reach ±0.01mm, ensuring precise alignment, uniform printing coating, and clear pattern edges, effectively improving the quality of finished printed products.

3. Adjustable Parameters and Versatile Adaptability: Various process parameters can be flexibly adjusted, and multiple operating modes can be freely switched, adapting to printing processes for different inks and workpiece materials.

4. Dual Models Available, Wider Compatibility: Two models are available, 40*60 and 50*70, covering workpieces of various sizes and stencil processing needs, offering flexible selection.

5. Pneumatic Energy Saving, Suitable for Mass Production: Utilizing a pneumatic drive design, energy consumption is controllable, operational stability is excellent, and it supports long-term continuous operation, making it suitable for prototyping and large-scale production.

V. Application Scenarios:

The equipment is suitable for SMT ink printing processes and is also applicable to the electronics, plastics, hardware, and packaging industries. It can complete screen printing operations on workpieces such as signs, films, circuit boards, and flat panels, demonstrating good versatility and suitability for various small and medium-sized processing workshops.
