High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor
High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor
Specifications
Brand Name :
LISON
Model Number :
LSM421X
Certification :
CE
MOQ :
1
Payment Terms :
T/T,L/C
Delivery Time :
40working days
Name :
Biscuit Sandwiching Machine
Application :
Biscuit cream sandwiching
Flavors :
Cream, Jam Filling
Packing Line :
Without Packing Line
Vibrator :
Vibrator Feeding
Capacity :
Max.2400sandwiches/Min.
Feature :
Big capacity
Biscuit Size :
Diameter 40-70mm
Packaging :
Wooden Case
Origin :
China
HS Code :
8438100010
Description

High Speed Four Lane One Color Chocolate Cream Biscuit Sandwich Machine With Conveyor

Product Introduction
Four lane biscuit sandwich machine with conveyor is suitable for producing round, rectangular, square and some irregular shaped biscuits. It is widely used to produce used to produce cream, fruit jam, chocolate sandwich biscuit.

Product Parameters

Model

LSM421X

Capacity

Max.2400sandwichs/min.

Power supply

6.5kw,220V/50Hz

Weight

1200kgs

Application

Single flavor cream filling

Biscuit range

Round: Φ40-70mm

Rectangle: L(40-70mm)x W(40-65mm)

Products Feature

1. High sandwich speed: from 50-2400sandwiches/min.

2. Suitable for round, square and rectangle biscuit,can be filled cream, fruit jam.

3. Stainless steel for machine frame and food contact parts.

4. Separating cream tank and biscuit feeding system.

5. Use the photoelectric of famous brand to detection biscuit, cream comes with biscuits, no biscuit no cream flow out.

6. Stainless steel gear pump, connection tubes between cream hopper and stencil are jacket design.

7. Removable scrap trays are provided for simple scrap collection and machine cleaning.

8. Use two cream tank to fill biscuit, every cream tank with independent motor and reducer.

Detailed Images
High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor
Machine Parts
Name: Cream Stencil

Material: Stainless Steel

Handle different shapes and sizes of biscuits and interchange faster

Machine Parts

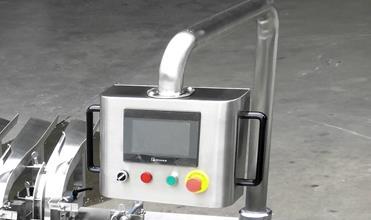

Name: Touch Screen

Brand: Weinview

Operating machine set-up, hopper controls, speed adjustments

 High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor
High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor

Machine Parts

Name: Cream Tank

Material: Stainless Steel

Can cleaning while finish working separately

Independent motor and reducer

Machine Parts

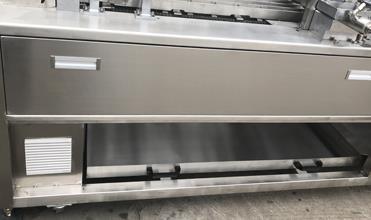

Name: Waste Collection

Material: Stainless Steel

Collecting biscuit or other waste, easy to cleaning

 High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor
High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor
Our CompanyHigh Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With Conveyor

Packaging and shipping
The normal package is wrapped with film first, then packing with wooden box. If export to european countries,the wooden box will be fumigated.

If container is too tigher,we will use pe film for packing or pack it according to customers special request.
High Speed Biscuit Sandwiching Machine Four Lane Cream Biscuit Machine With ConveyorShipment: Within 40 working days from the date of receipt the down payment.
Usually by sea, but can also according to customer requirements.
FAQ
1.Q: Are you a manufacturer?
A: Yes, we are a biscuit sandwich machine and packing machine manufacturer in China.

2.Q: How is the payment?
A: We accept 30% T/T deposit before production and 30% T/T balance before shipment.
Letter of Credit is also acceptable.

3.Q: How long is your guarantee time?
A: We have a guarantee period of 15 months from the date of shipment.

4.Q: What information does the quotation require?
A: --What kind of biscuit do you make? What is your biscuit size?

5.Q: What is the delivery time for the machine?
A: Within 40 working days afer received the deposit or L/C.
