Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
Specifications
After Warranty Service :
Service Machinery Overseas
Brand Name :
Gereke
Air Pressure :
0.5~0.8MPa
Certification :
CE ISO90001
Packaging Details :
Wooden
Power :
4.5 kW
warranty :
1 Year Guarantee
MOQ :
1 set
Delivery Time :
90~150 days
Dimension :
3.5m x 1.5m x 1.8m
Lead Time :
90-120days
Operating Speed :
3000-3600 pcs/hour
Supply Ability :
10 PCS
Payment Terms :
TT
Price :
75000~85000$
Voltage :
380VAC /50HZ, 15A
Place of Origin :
China
Description

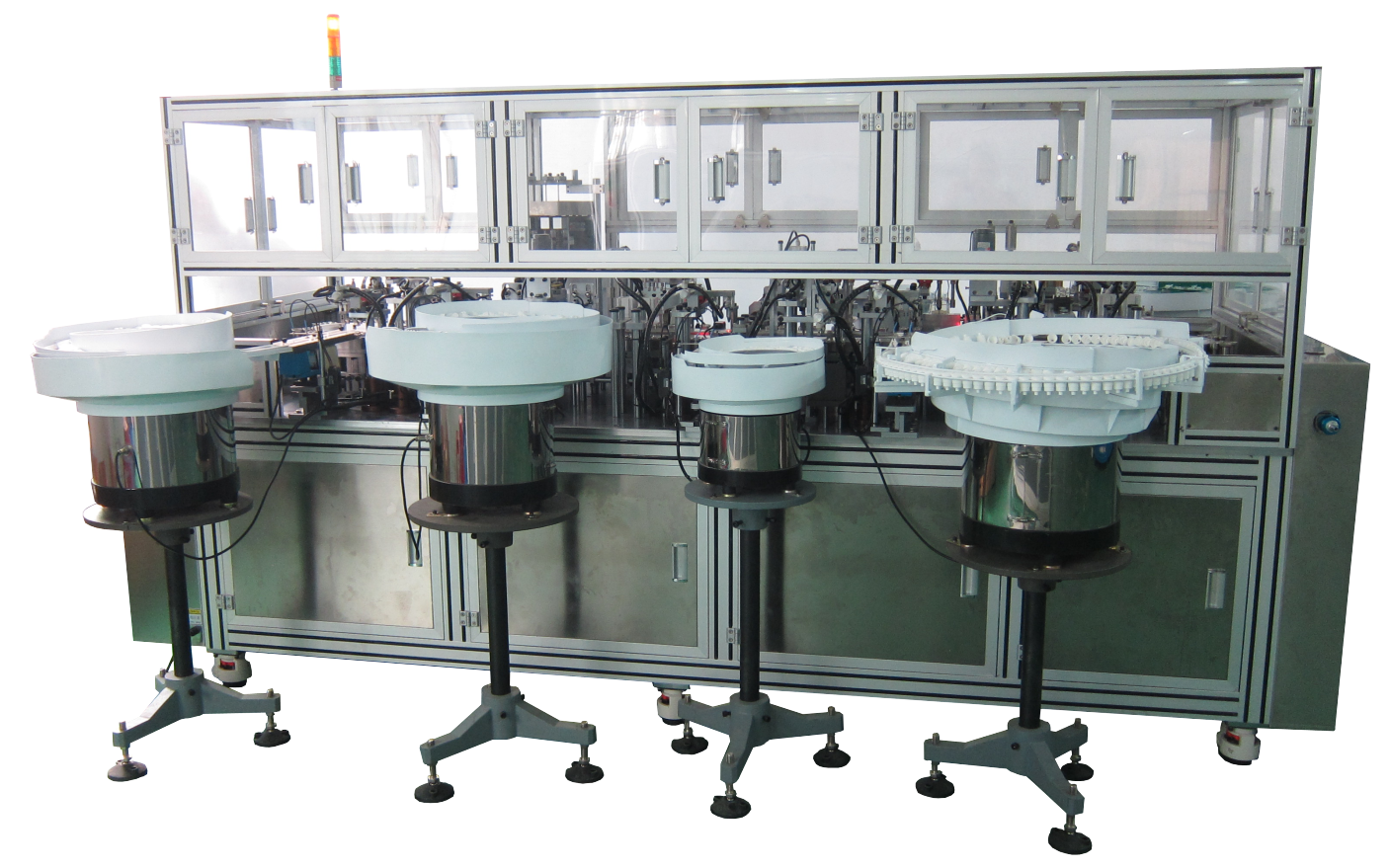

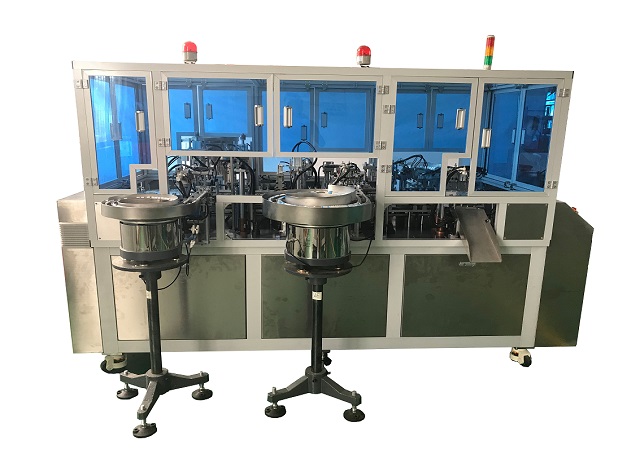

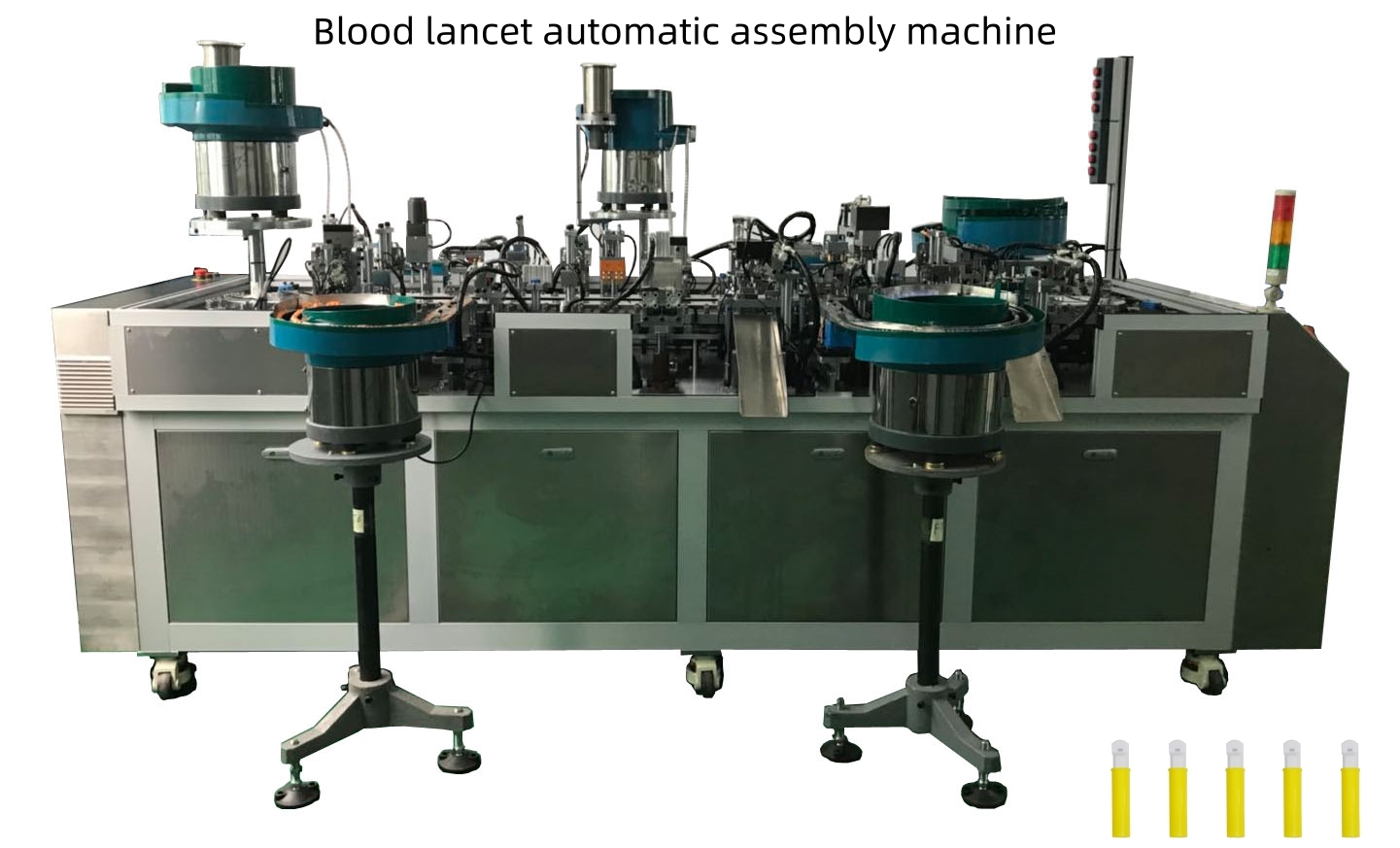

Blood Lancet Automatic Assembly Machine
Product Overview

Machine structure make from steel S45C.
Intelligent System: High quality PLC system integrated with touch screen and inverter. It is easy to operate and energy saving.
Machine Transmission: Adopted high performance electronic cam transmission system, stabilized and durable.
Feeding System: High performance vibrating bowl feeder

Machine major component origin list:
No.ProductProducerOrigin Country
1Solenoid valveSchFrench
2Photo sensor/fiber opticPanic/KeyenceJapan
3Main motorChina Taiwan,INOVANCEChina taiwan
4PLCINOVANCE/MitsuChina/Japan
5RelaySchder/Honey French/USA
6Proximity sensorAutonicsKorea
7Air filterChina taiwanChina taiwan
8CylinderSMC /Air tacJapan/China taiwan
9Electronic camkoyoJapan
10InverterShihlin/DeltaChina taiwan
11Stroke/rod eyeIko,MisumiJapan


Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed
The
Manufacturing Process
Blood lancet automatic assembly machine automatically feeds needles, caps, springs, and holders, detects component presence, and performs automatic fitting operations.

Manufacturing Process
  1. Shell feed
  2. Shell check
  3. Holder feeding
  4. Holder check
  5. Needle feeding
  6. Needle check
  7. Spring feeding
  8. Spring check
  9. Top cap feeding
  10. Top cap check and pressure
  11. Assembly completion
  12. Defect part ejection
  13. Discharge of good production

    Blood Lancet Automatic Assembly Machine 60-65 pcs/min Speed

Technical Specifications
ParameterSpecification
Voltage380VAC / 50HZ, 15A
Power3000W
Dimension3500 * 1600 * 1800 mm
Weight2000 kg
Air Pressure0.5~0.8 MPa
Operating Speed60-65 pcs/min
Frequency50 Hz

Product application: Plant for Blood lancet production manufacturer

FAQ
Q: I am interested in your product,can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
