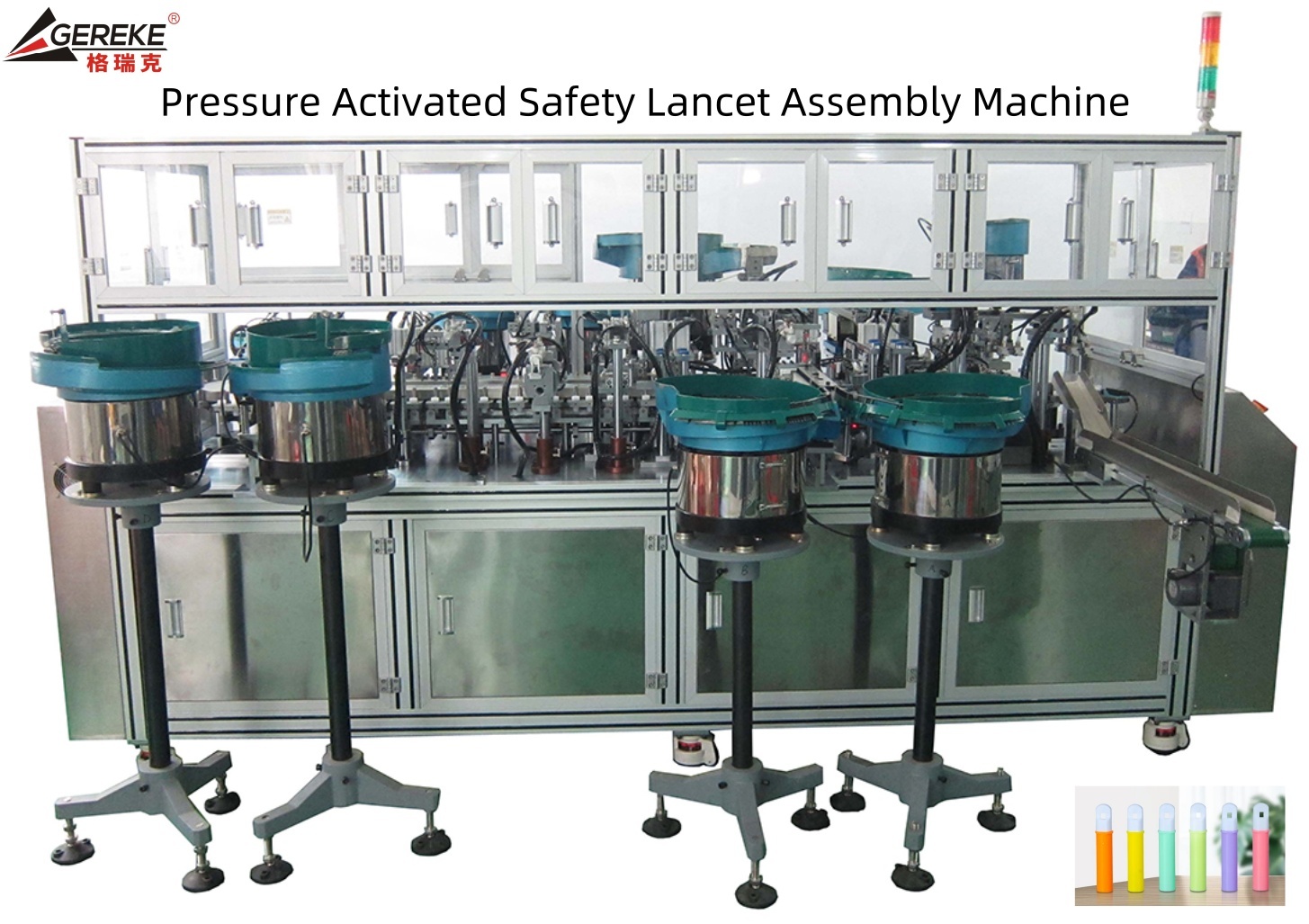

Pressure Activated Safety Lancet Automatic Assembly Machine
Pressure Activated Safety Lancet Automatic Assembly Machine
Pressure Activated Safety Lancet Automatic Assembly Machine
Pressure Activated Safety Lancet Automatic Assembly Machine
Pressure Activated Safety Lancet Automatic Assembly Machine
Pressure Activated Safety Lancet Automatic Assembly Machine
Specifications
Air Pressure :
0.5~0.8MPa
Delivery Time :
90~150 days
Certification :
CE ISO90001
Brand Name :
Gereke
Price :
75000~90000 US$
Power :
3000W
Weight :
2200kg
After-sales Service Provided :
Service Machinery Overseas
Warranty of core components :
1 Year Guarantee
MOQ :
1 set
Payment Terms :
TT
Dimension :
3500*2100*1800mm
Packaging Details :
Wooden
Lead Time :
90-120 DAYS
Place of Origin :
China
Model Number :
T580
Voltage :
380VAC /50HZ
Advantage :
High Efficiency Low Cost
Supply Ability :
10 PCS
Operating Speed :
3000~3600 pcs/H
Description
Products Description
Pressure Activated Safety Lancet automatic Assembly Machine

Machine Characteristic:
This machine adopts European high rigidity structure.

  1. with the advanced high performance PLC touch screen control, operating more simple, adopts frequency control of motor speed, energy saving.
  2. using vibration feeding way, improve the effect of feed.
  3. assembly has a test, if you have any packing immediately, to ensure the quality of the finished product.
  4. the whole machine all electrical equipment parts and pneumatic device with machine have well-known brands abroad.Failure rate is low, good quality.
Machine major component origin list:
No.ProductProducerOrigin Country
1Solenoid valveSchFrench
2Photo sensor/fiber opticPanic/KeyenceJapan
3Main motorChina Taiwan,INOVANCEChina taiwan
4PLCINOVANCE/MitsuChina/Japan
5RelaySchder/HoneyFrench/USA
6Proximity sensorAutonicsKorea
7Air filterChina taiwanChina taiwan
8CylinderSMC /Air tacJapan/China taiwan
9Electronic camkoyoJapan
10InverterShihlin/DeltaChina taiwan
11Stroke/rod eyeIko,MisumiJapan

Pressure Activated Safety Lancet Automatic Assembly Machine
Manufacturing Technique
  • 1,according with the product
Product Paramenters
Voltage
380VAC /50HZ,15A
Power
3000W
Dimension
3500*2100*1800mm
Weight
2200kg
Air Pressure
0.5~0.8MPa
Operating Speed
3000~3600 pcs/H
Frequency
50hz
Pressure Activated Safety Lancet Automatic Assembly Machine

FAQ
Q: I am interested in your product,can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
