Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Specifications
warranty :
1 Year Guarantee
MOQ :
1 set
Brand Name :
Gereke
Air Pressure :
0.5~0.8MPa
Payment Terms :
TT
Power :
2500W
Operating Speed :
30-35 pcs/min
After-sales Service Provided :
Service Machinery Overseas
Dimension :
4200*2100*1800mm
Place of Origin :
China
Packaging Details :
Wooden
Supply Ability :
10 PCS
weight (kg) :
1800 kg
Lead Time :
90-120days
Delivery Time :
90~150 days
voltage :
380 V, 220 V
Certification :
CE ISO90001
Advantage :
High Efficiency Low Cost
Description
Products Description
CRV Ag Test KIT automatic Assembly Machine-disease diagnostic test canine Combine parvovirus TEST

The assembly will auto feeding the base and top shell, and through detect the exist and the shell direction, then orientation it. After that the strip cutting machine will operate according with the detector and check the length, width and the dirty surface through camera. Then auto fitting it to the shell and pressure it.

The packaging machine will auto feed the bags, desiccant. Then Push the cassette and desiccant to bag, sealing it.

Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Manufacturing Technique

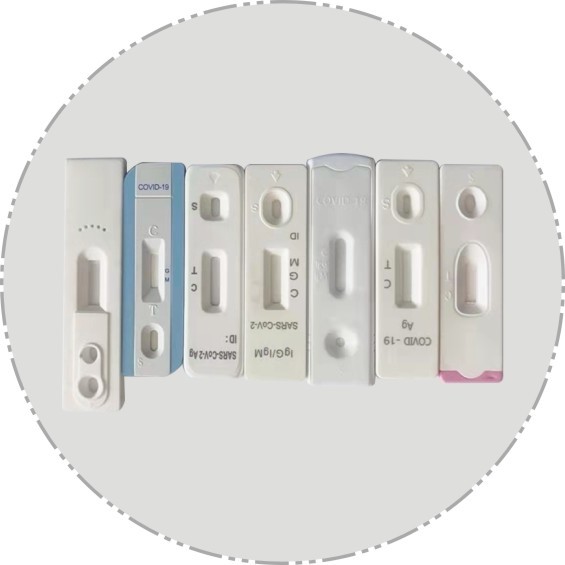

  1. cassette base shell feed
  2. direction (upward and downward)check
  3. Orientation for upward and downward
  4. direction (front and back)check
  5. Orientation for front and back
  6. strip fitting
  7. strip check
  8. cassette top shell fitting
  9. top shell check
  10. top and base shell together and pressure
  11. push the finish production to the conveyor
  12. push the cassette to packaging machine
  13. cassette check
  14. bag feeding
  15. bag check
  16. desiccant feeding
  17. desiccant check
  18. open the bag
  19. push the cassette and desiccant to the bag
  20. check it
  21. Sealing the bag
  22. defect part ejection
  23. Discharge for the good production
Product Parameters
Voltage 380VAC /50HZ,15A
Power 3000W
Dimension 2700*2100*1800mm
Weight 2200kg
Air Pressure 0.5~0.8MPa
Operating Speed 60-65 pcs/min
Frequency 50hz
Company Profile

Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical product range. We have established a strong team of capable staff who concentrate on their own area of expertise. Gereke carries out customizations professionally according to the user’s needs. The entire process from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and rigorous test on the quality and performance of the machinery to ensure that the internationally advanced standards of the product are there. The excellence in quality and performance has won the complete trust of many customers.

Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Customer Photos
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Products Description
Rapid test kit automatic assembly and packaging machine

The assembly will auto feeding the base and top shell, and through detect the exist and the shell direction, then orientation it. After that the strip cutting machine will operate according with the detector and check the length, width and the dirty surface through camera. Then auto fitting it to the shell and pressure it.

The packaging machine will auto feed the bags, desiccant. Then Push the cassette and desiccant to bag, sealing it.

Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Manufacturing Technique
  1. cassette base shell feed
  2. direction (upward and downward)check
  3. Orientation for upward and downward
  4. direction (front and back)check
  5. Orientation for front and back
  6. strip fitting
  7. strip check
  8. cassette top shell fitting
  9. top shell check
  10. top and base shell together and pressure
  11. push the finish production to the conveyor
  12. push the cassette to packaging machine
  13. cassette check
  14. bag feeding
  15. bag check
  16. desiccant feeding
  17. desiccant check
  18. open the bag
  19. push the cassette and desiccant to the bag
  20. check it
  21. Sealing the bag
  22. defect part ejection
  23. Discharge for the good production
Product Parameters
Voltage 380VAC /50HZ,15A
Power 3000W
Dimension 6700*2100*1800mm
Weight 2200kg
Air Pressure 0.5~0.8MPa
Operating Speed 60-65 pcs/min
Frequency 50hz
Company Profile

Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical product range. We have established a strong team of capable staff who concentrate on their own area of expertise. Gereke carries out customizations professionally according to the user’s needs. The entire process from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and rigorous test on the quality and performance of the machinery to ensure that the internationally advanced standards of the product are there. The excellence in quality and performance has won the complete trust of many customers.

Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
Customer Photos
Crv Ag Test Kit Automatic Assembly Machine for Canine Combine Parvovirus Test
