Specifications
Supply Ability :
10 PCS
Brand Name :
Gereke
Packaging Details :
Wooden
Pneumatic :
5-6kgf/m2
Place of Origin :
China
Payment Terms :
TT
Price :
35000~45000 usd
KVA :
1.5 kw
Dimensions :
3400mm*1400mm*1800mm(L*W*H)
Operating Rate :
50-60pcs/min
weight (kg) :
2000KG
After-sales Service Provided :
Service Machinery Overseas
warranty :
1 Year
Certification :
CE ISO90001
Lead Time :
90-150days
MOQ :
1 set
Delivery Time :
90~150 days
Model Number :
L580
Voltage :
220/380V
Advantage :
High Efficiency Low Cost
Description
Products Description

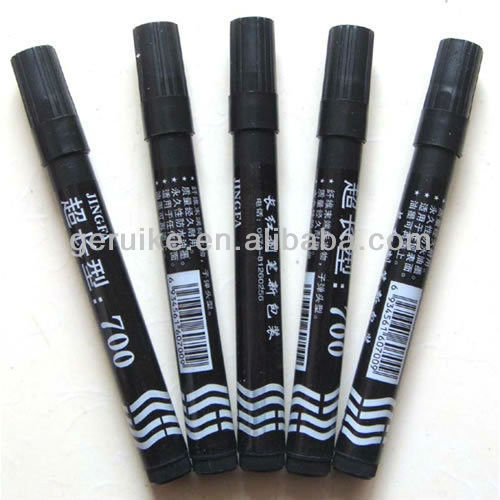

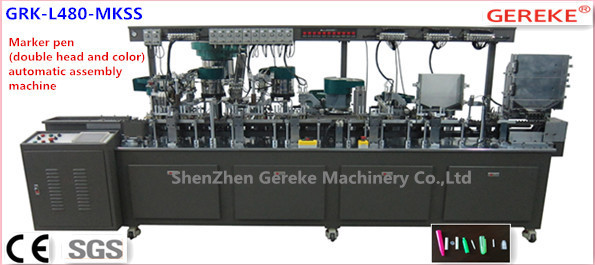

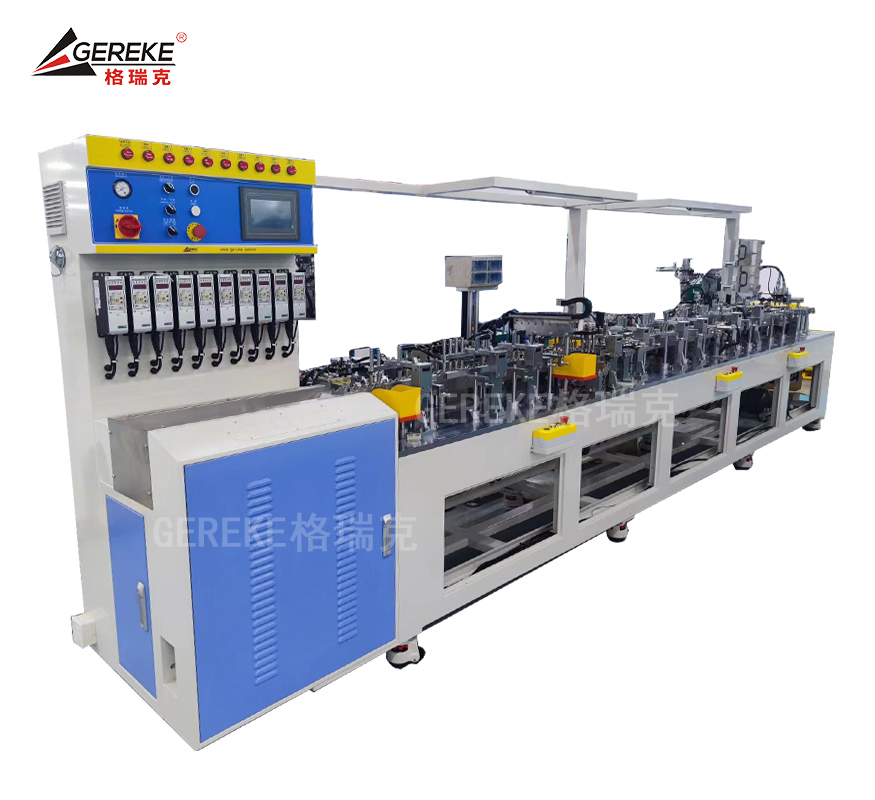

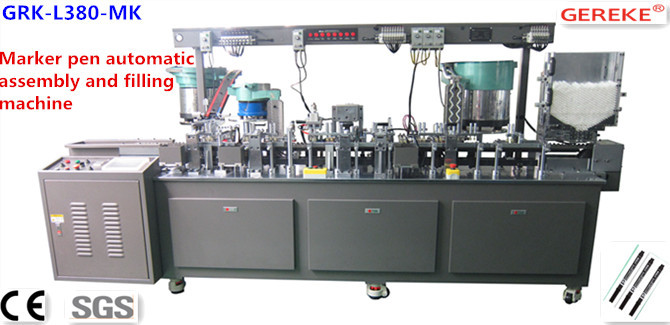

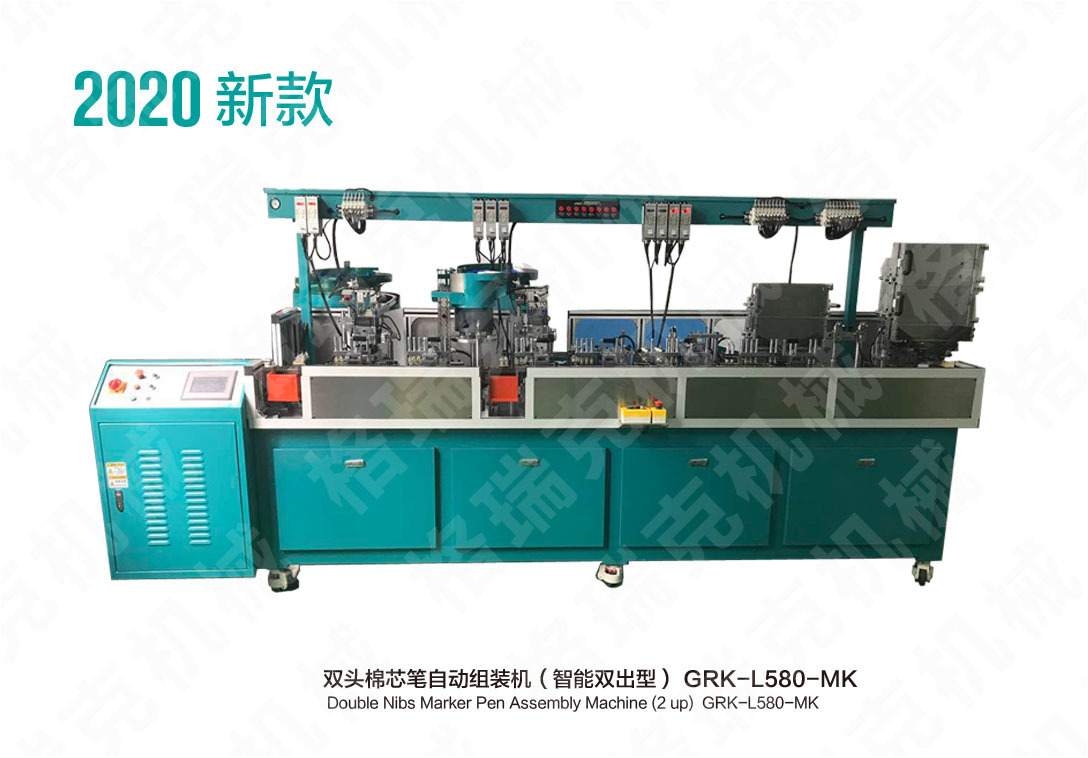

Marker pen Automatic assembly and filling Machine - Stationery machine

the assembly will auto feeding the barrel , reservoir cone ,end plug and cap ,and automatic through detect the exist and the direction ,then automatic assembly together .

Automatic Filling Marker Pen Assembly Machine for Stationery Permanent Pen
Manufacturing Technique
  1. barrel feeding
  2. barrel check
  3. end plug fitting
  4. end plug check
  5. Orientation
  6. reservoir feeding
  7. reservoir check
  8. ink filling
  9. ink check
  10. cone fitting
  11. cone check
  12. cap fitting
  13. cap check and pressure
  14. discharge for the good production
  15. defect part ejection
Product Paramenters
Voltage 380VAC /50HZ,15A
Power 3000W
Dimension 3000*1500*1800mm
Weight 1800kg
Air Pressure 0.5~0.8MPa
Operating Speed 60-65 pcs/min
Frequency 50hz
Company Profile

Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical
product range. We have established a strong team of capable staff who concentrate on their own area of ex
pertise. Gereke carries out customizations professionally according to the user’s needs. The entire process
from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and
rigorous test on the quality and performance of the machinery to ensure that the internationally advanced st
andards of the product are there. The excellence in quality and performance has won the complete trust of
many customers.
