Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge
Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge
Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge
Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge
Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge
Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge
Specifications
Warranty of core components :
1 Year Guarantee
Place of Origin :
China
Air Pressure :
0.5~0.8MPa
Packaging Details :
Wooden
Power :
2.5KW
Brand Name :
Gereke
Price :
75000~90000$
Lead Time :
90-120days
After-sales Service Provided :
Service Machinery Overseas
Payment Terms :
TT
Dimension :
3500*2100*1800mm
MOQ :
1 set
Weight (KG) :
2000 KG
Delivery Time :
90~150 days
Supply Ability :
10 PCS
Certification :
CE ISO90001
Advantage :
High Efficiency Low Cost
Weight (kg) :
2500kg
Operating Speed :
50-60 pcs/min
Description
Product Description

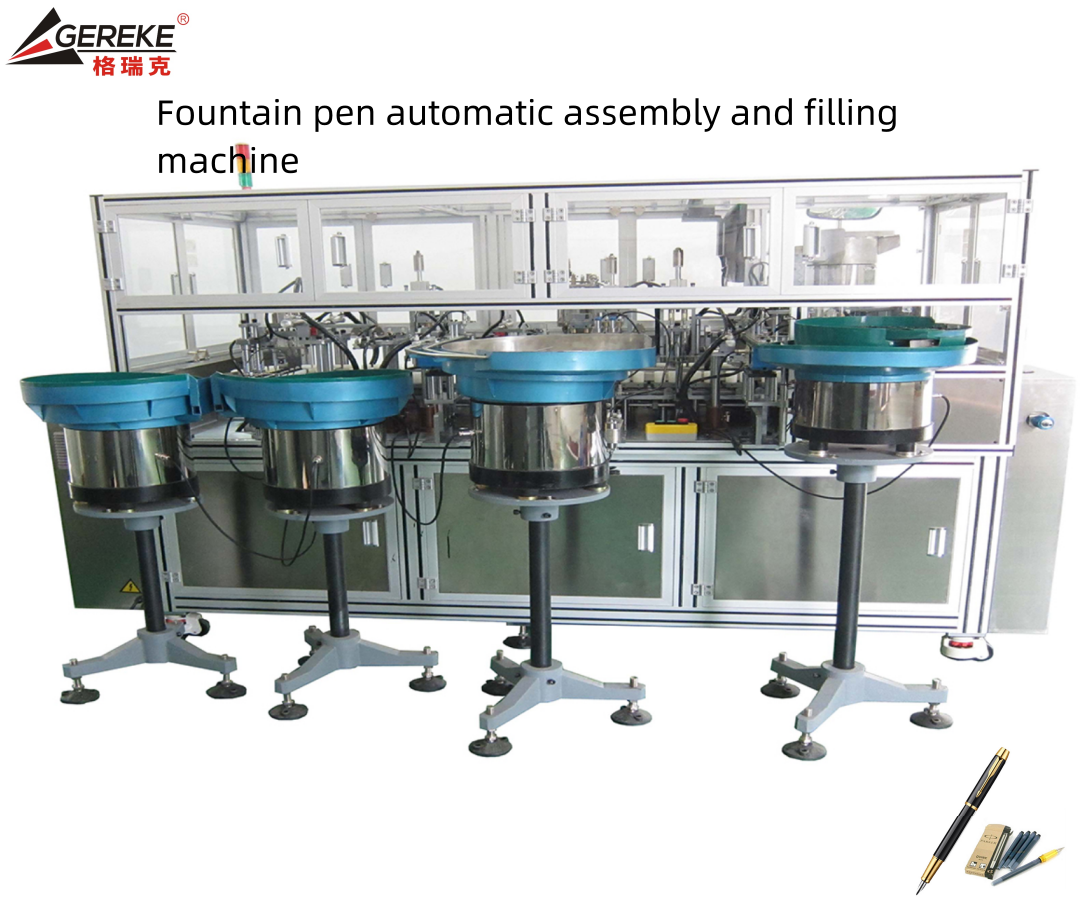

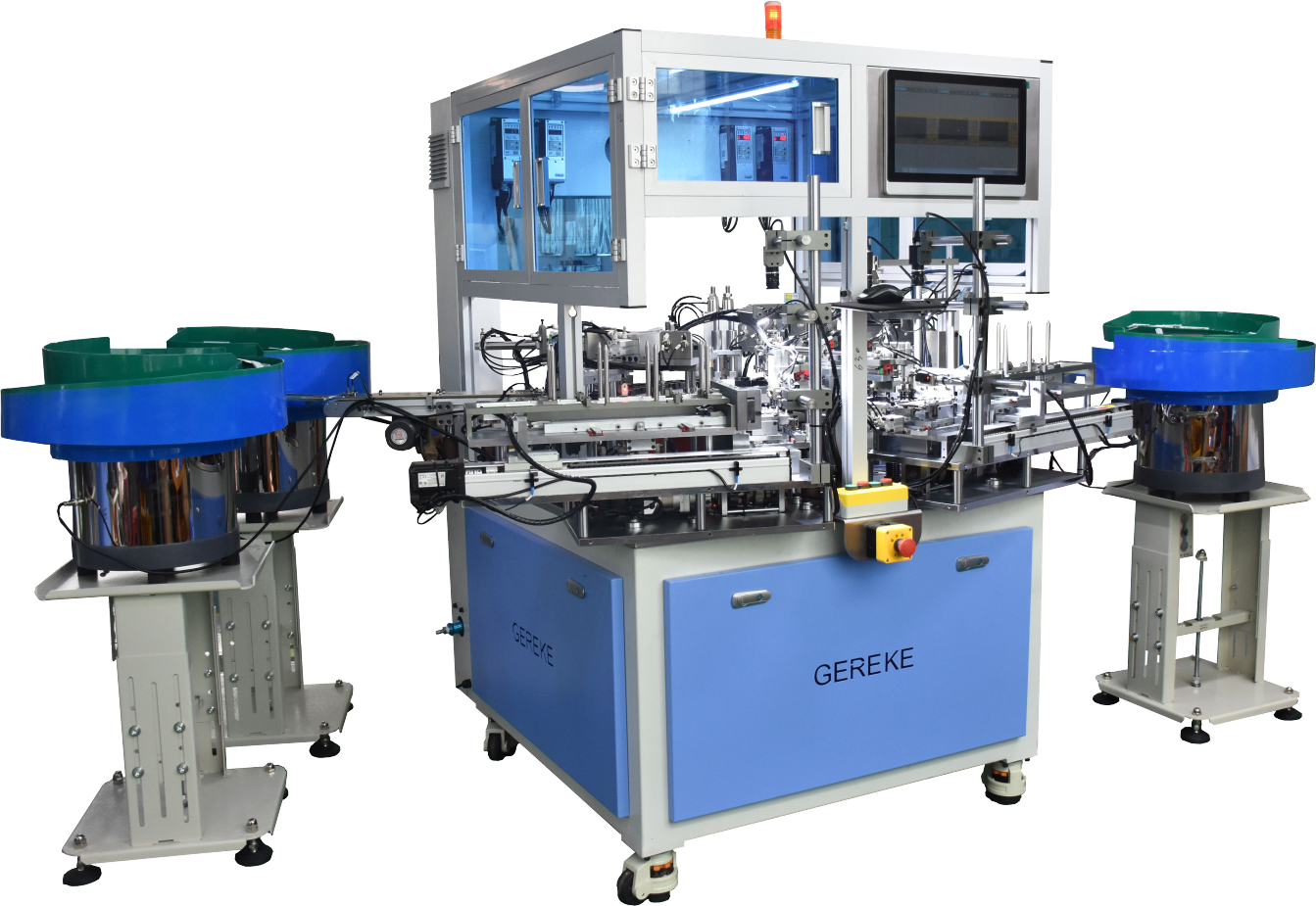

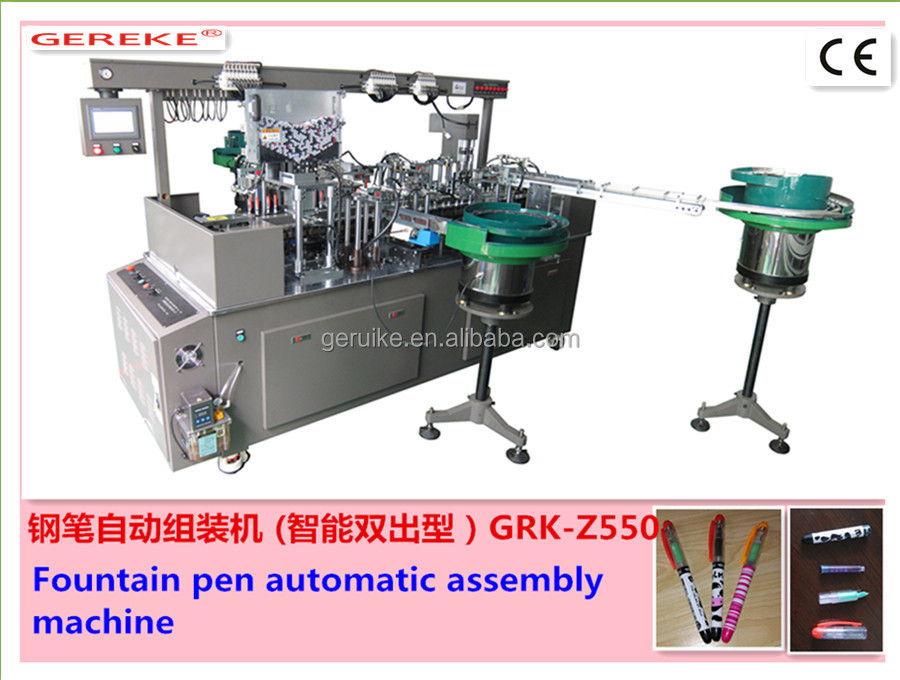

Fountain Pen Automatic Assembly Machine
Product Overview

This advanced automatic assembly machine is specifically designed for Fountain Pen production, constructed from durable S45C steel for long-lasting performance in industrial environments.

Key Features
  • Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
  • Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
  • Feeding System: High-performance vibrating bowl feeder
  • Controlled by PLC for precise operation
  • Easy operation with reduced labor requirements
  • Each section equipped with check sensors for quality control
  • All components sourced from international brands
Major Components Origin
No. Product Producer Origin Country
1 Solenoid valve Sch French
2 Photo sensor/fiber optic Panic/Keyence Japan
3 Main motor China Taiwan, INOVANCE China Taiwan
4 PLC INOVANCE/Mitsu China/Japan
5 Relay Schder/Honey French/USA
6 Proximity sensor Autonics Korea
7 Air filter China Taiwan China Taiwan
8 Cylinder SMC/Air tac Japan/China Taiwan
9 Electronic cam Koyo Japan
10 Inverter Shihlin/Delta China Taiwan
11 Stroke/rod eye Iko, Misumi Japan

Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge


Features:
  1. Comtrolled by PLC
  2. Supply By Vibration
  3. Easy Operation,Less Labour
  4. Each Section Has Check Sensors
  5. All Components are From International Brand

Fountain Pen Automatic Assembly Machine for Ball Pen Marker Pen Cartridge

Fountain pen automatic assembly machine
power 220/380volt 50/60Hz 2/3phases
KVA 1.5kw
Operating Rate 60~65 pcs/min
Weight Appro:2000kg
Pneumatic 5-6kgf/cm²
Dimensions L3500mm×W1100mm×H1800mm
Product Application

Designed for writing pen production manufacturers in plant environments.

Frequently Asked Questions
Q: I am interested in your product, can you supply?

A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.

Q: What do I need to provide documents?

A: 1. The material of your product 2. The size of your product and the pattern 3. The shape of your product

Q: What is the lead time?

A: 45-90 days after receiving the advance payment and samples

Q: How do you shipment the product?

A: By sea, by air, by express

Q: Do you have the CE certification?

A: Yes, we have the CE certification

Q: What document will you provide?

A: Installation manuals, Maintenance manuals, Electrical schematics diagram. For medical machines we will provide IQ, OQ and spare part list.

Q: What is the material of your machine?

A: The majority of parts are 45# steels, while parts that contact with the product are made from stainless steel S304.

Q: What services can we provide?

A: Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, Cash; Language Spoken: English, Chinese
