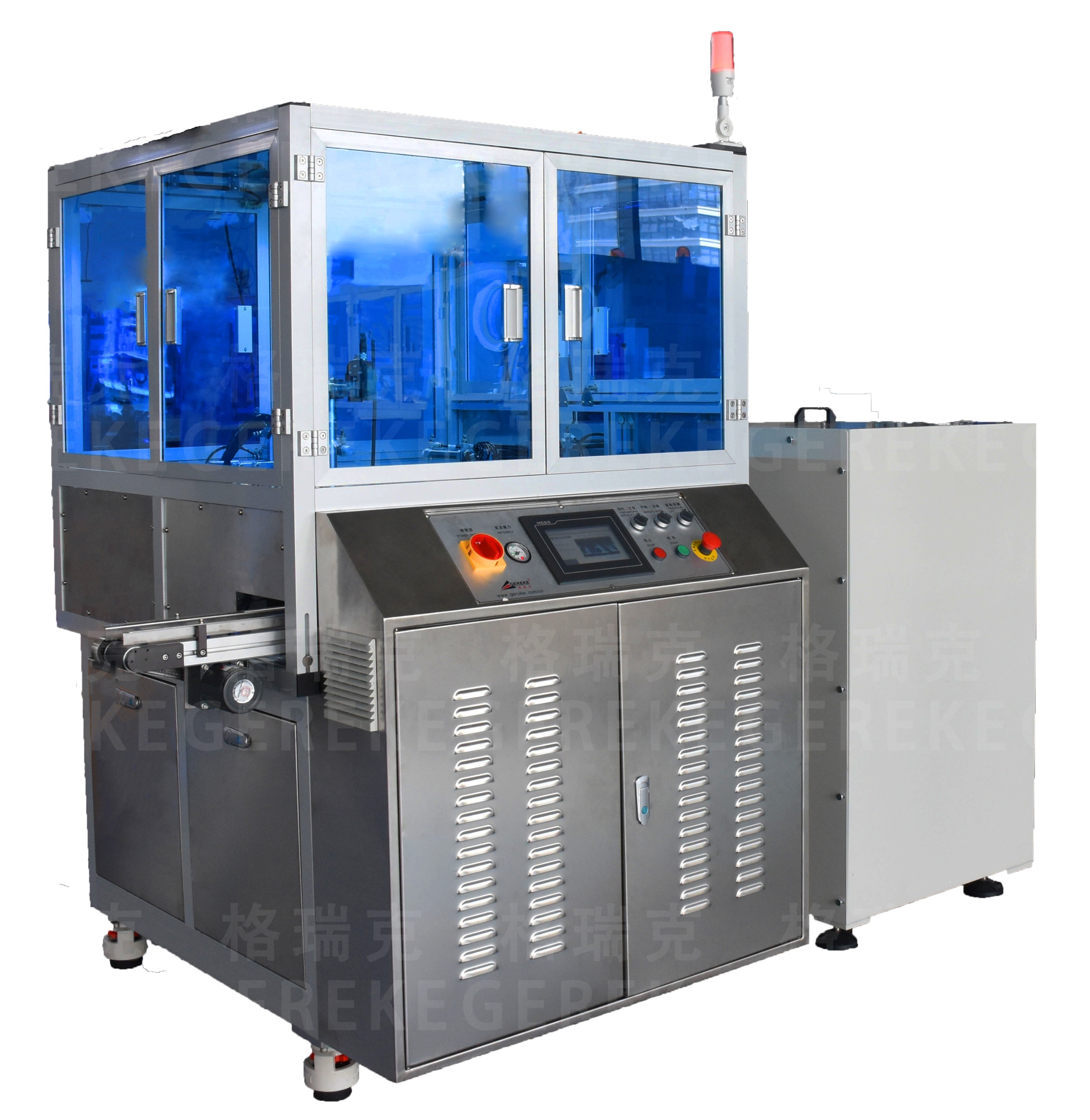

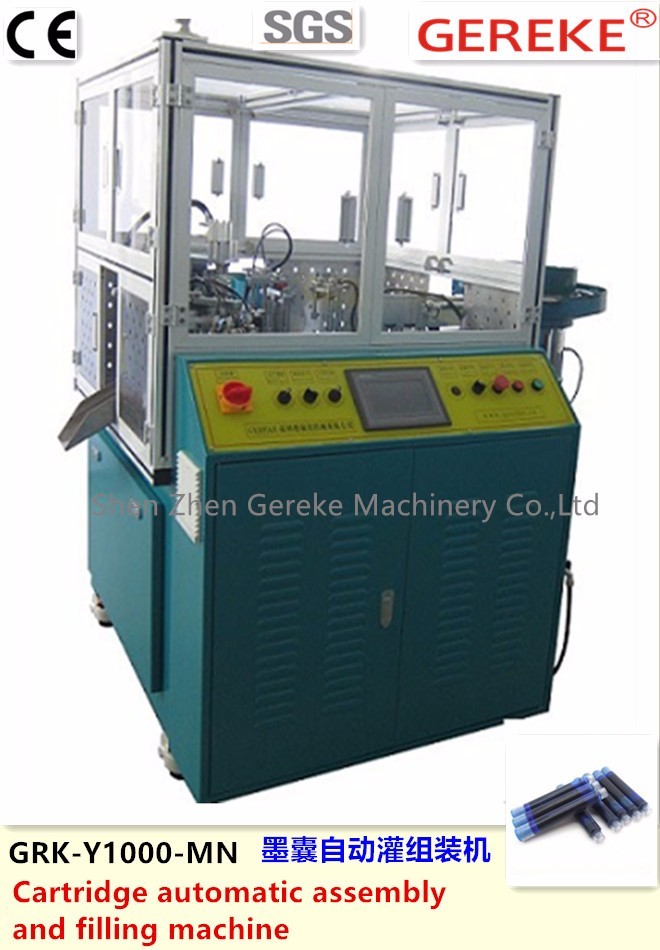

Fountain Pen Cartridge Automatic Assembly And Filling Machine
Fountain Pen Cartridge Automatic Assembly And Filling Machine
Fountain Pen Cartridge Automatic Assembly And Filling Machine
Fountain Pen Cartridge Automatic Assembly And Filling Machine
Fountain Pen Cartridge Automatic Assembly And Filling Machine
Fountain Pen Cartridge Automatic Assembly And Filling Machine
Specifications
Payment Terms :
TT
KVA :
2.5KW
Lead Time :
60-120days
After-sales Service Provided :
Service Machinery Overseas
Dimensions :
1500*1500*1800mm
Weight (KG) :
1200kg
Place of Origin :
China
Warranty :
1-year
Brand Name :
Gereke
Packaging Details :
Wooden
Supply Ability :
10 PCS
Pneumatic :
5-6kgf/m2
Certification :
CE ISO90001
Price :
30000~40000$
Model Number :
y500
voltage :
380 V, 220 V
MOQ :
1 set
Delivery Time :
90~150 days
Advantage :
High Efficiency Low Cost
Speed :
3000~3600pcs/hr
Description
Products Description
Fountain Pen Cartridge Automatic Assembly And Filling Machine

the assembly will auto feeding theTUBE , BALL ,end plug ,and automatic through detect the exist and the direction ,then automatic assembly together .

Fountain Pen Cartridge Automatic Assembly And Filling Machine
Manufacturing Technique

1,TUBE feeding ->2 TUBE check ->3 BALL fitting->4 BALL check->5 ink filling ->6 ink check->7 END PLUG fitting->8 END PLUG check-->9 discharge for the good production->10 defect part ejection

Fountain Pen Cartridge Automatic Assembly And Filling Machine
Product Paramenters
Voltage 380VAC /50HZ,15A
Power 2500W
Dimension 1500*1500*1800mm
Weight 1500kg
Air Pressure 0.5~0.8MPa
Operating Speed 60-65 pcs/min
Frequency 50hz
FAQ

Q: I am interested in your product, can you supply.

A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different
special filling machine, assembly machine , packing machine and so on.
Writing instrument pen: Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/
Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts: lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump

Q: What do I need to provide documents?

A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.

Q: What is the lead time ?

A: 45~90 days after receiving the advance payment and samples

Q: How do you shipment the product?

A: By sea, by air, by express.

Q:Do you have the CE certification ?

A:Yes ,we have the CE certification .

Q:What document will you provide ?

A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list

Q:What is the material of your machine ?

A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.

Q:. what services can we provide?

A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
