Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Specifications
Place of Origin :
China
Payment Terms :
TT
Certification :
CE ISO90001
Air Pressure :
0.5~0.8MPa
MOQ :
1 set
Power :
3000W
Dimension :
4500*2100*1800mm
MOQ :
1 SET
Supply Ability :
10 PCS
Operating Speed :
50-60 pcs/min
warranty :
1 Year
Lead Time :
90-150days
Weight :
2800kg
Packaging Details :
Wooden
Brand Name :
Gereke
Delivery Time :
90~150 days
Price :
$65000~95000
Voltage :
380/220 VAC /50HZ，15A，3 Phase
After-sales Service Provided :
Service Machinery Overseas
Description
Products Description

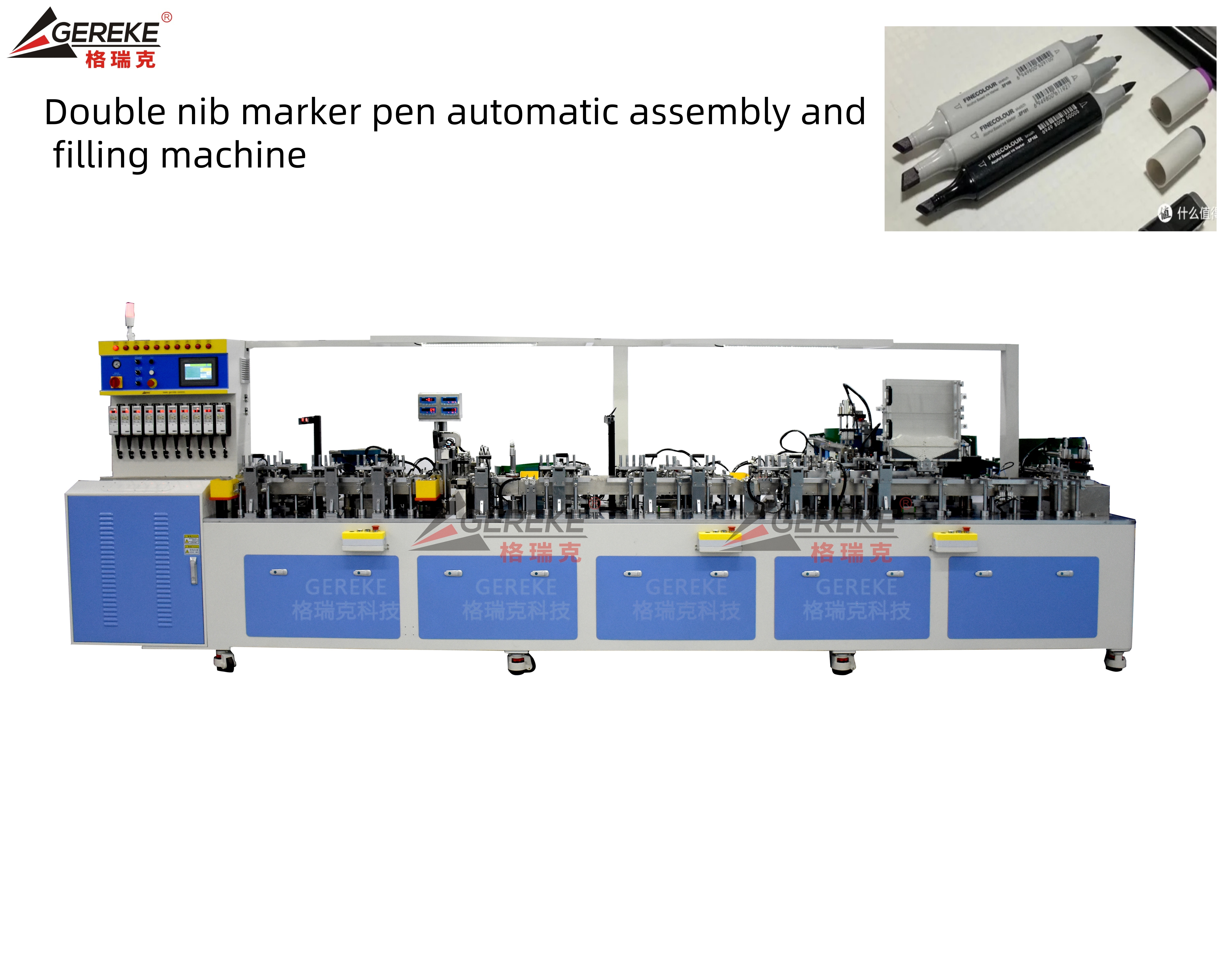

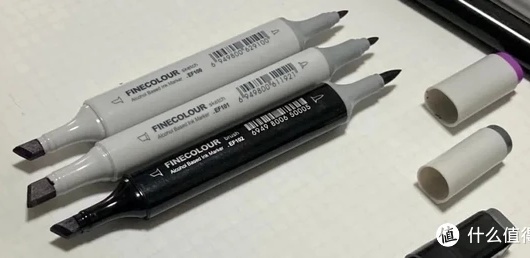

Marker pen (double nib double color) Automatic assembly and filling Machine - Stationery machine

the assembly will auto feeding the barrel , reservoir cone ,end plug and cap ,and automatic through detect the exist and the direction ,then automatic assembly together .

Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Manufacturing Technique
  1. barrel feeding
  2. barrel check
  3. end plug fitting
  4. end plug check
  5. Orientation
  6. reservoir feeding
  7. reservoir check
  8. ink filling
  9. ink check
  10. cone fitting
  11. cone check
  12. cap fitting
  13. cap check and pressure
  14. discharge for the good production
  15. defect part ejection
Product Paramenters
Voltage 380VAC /50HZ,15A
Power 3000W
Dimension 4500*1500*1800mm
Weight 2800kg
Air Pressure 0.5~0.8MPa
Operating Speed 60-65 pcs/min
Frequency 50hz
Company Profile

Guangdong Gereke Machinery Co., Ltd is a technology industry which incorporating AI into their medical
product range. We have established a strong team of capable staff who concentrate on their own area of ex
pertise. Gereke carries out customizations professionally according to the user’s needs. The entire process
from designing to assembling and packaging are constantly evaluated and improved. We conduct strict and
rigorous test on the quality and performance of the machinery to ensure that the internationally advanced st
andards of the product are there. The excellence in quality and performance has won the complete trust of
many customers.

Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling
Customer Photos
Double Nib Double Color Marker Pen Making Machine Automatic Assembly Filling

FAQ

Q: I am interested in your product,can you supply.

A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.

Writing instrument pen:Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/

Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump

Cosmetic parts:lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump

Q: What do I need to provide documents?

A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.

Q: What is the lead time ?

A: 45~90 days after receiving the advance payment and samples

Q: How do you shipment the product?

A: By sea, by air, by express.

Q:Do you have the CE certification ?

A:Yes ,we have the CE certification .

Q:What document will you provide ?

A: Installation manuals/ Maintenance manuals/Electrical schematics diagram

-For medical machine we will provide IQ, OQ

- Spare part list

Q:What is the material of your machine ?

A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.

Q:. what services can we provide?

A: Accepted Delivery Terms: FOB;

Accepted Payment Currency: USD,EUR,HKD;

Accepted Payment Type: T/T, Cash;

Language Spoken: English, Chinese
