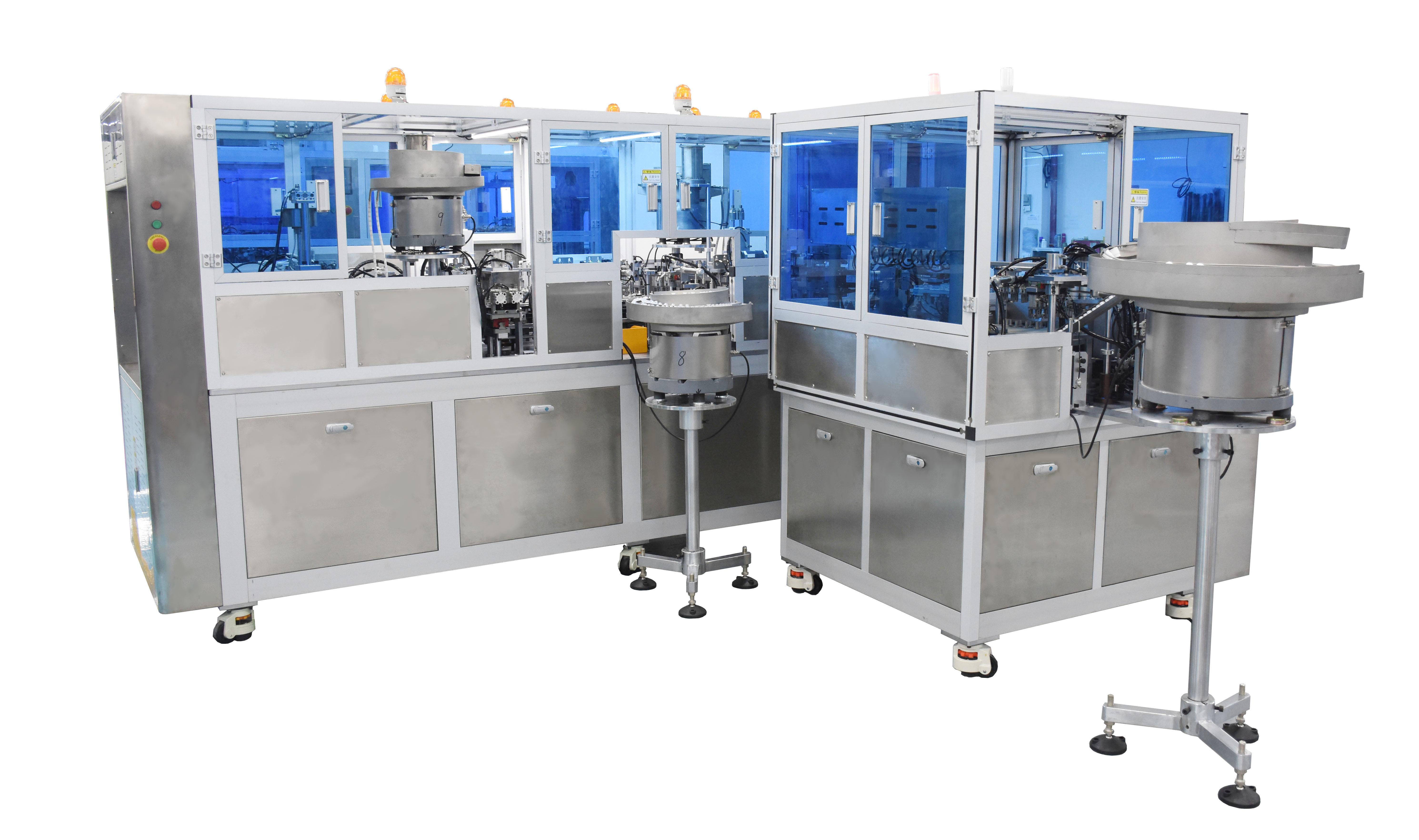

Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Specifications
Voltage :
220 V, 380 V
Certification :
CE ISO90001
KVA :
3.5 KW
Price :
100000~120000$
Packaging Details :
Wooden
Lead Time :
90-150days
After-sales Service Provided :
Service Machinery Overseas
Supply Ability :
10 PCS
Weight (kg) :
2700kg
Weight :
2700kg
Payment Terms :
TT
Dimensions :
3500mm*3200mm*1800mm(L*W*H)
Pneumatic Pressure :
5-6kgf/m2
Delivery Time :
90~150 days
warranty :
1 Year Guarantee
Power :
3.5 KW
Place of Origin :
China
Pneumatic :
5-6kgf/m2
MOQ :
1 set
Operating Rate :
60-65 pcs/min
Brand Name :
Gereke
Video Voltage :
220 V, 380 V
Advantage :
High Efficiency Low Cost
Description
Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Product Overview

This advanced automatic assembly and leakage test machine is specifically designed for sprayer pump engine production. Built with durable S45C steel construction, it ensures reliable performance in industrial manufacturing environments.

Key Features
  • Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
  • Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
  • Feeding System: High-performance vibrating bowl feeder for efficient material handling
Major Components
No. Product Producer Origin Country
1Solenoid valveSchFrench
2Photo sensor/fiber opticPanic/KeyenceJapan
3Main motorChina Taiwan,INOVANCEChina taiwan
4PLCINOVANCE/MitsuChina/Japan
5RelaySchder/HoneyFrench/USA
6Proximity sensorAutonicsKorea
7Air filterChina taiwanChina taiwan
8CylinderSMC /Air tacJapan/China taiwan
9Electronic camkoyoJapan
10InverterShihlin/DeltaChina taiwan
11Stroke/rod eyeIko,MisumiJapan
Assembly Process

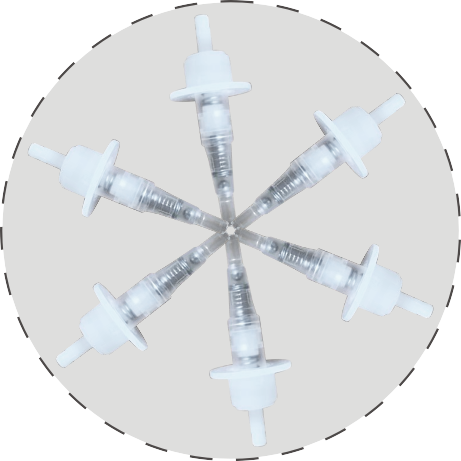

The assembly system automatically feeds components including shell, piston, pump, spring, ball, and cap. It detects component presence and shell orientation, then automatically assembles them together.

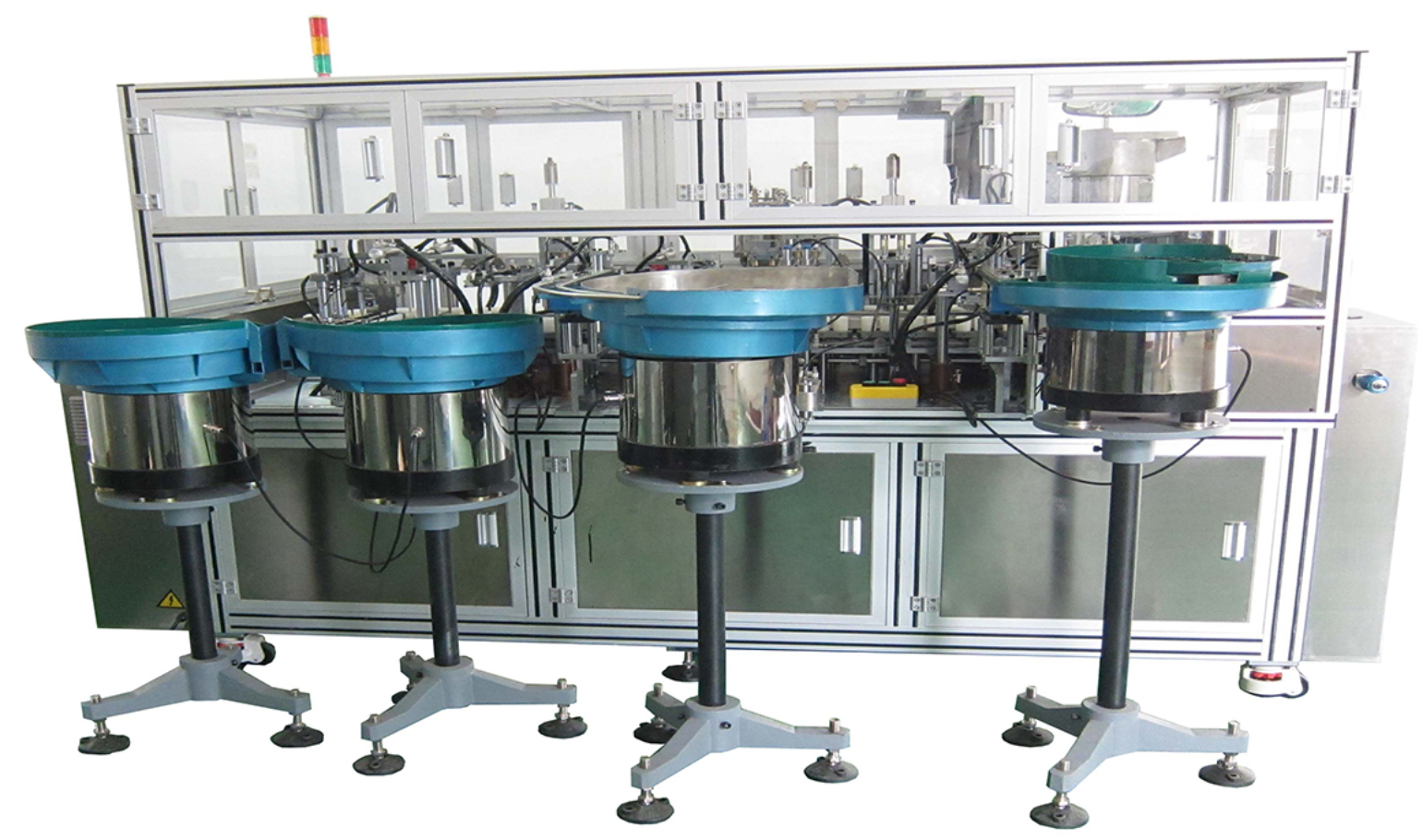

Sprayer Pump Engine Automatic Assembly And Leakage Test Machine
Manufacturing Process Steps
  1. House feeding
  2. House check
  3. Oil filling
  4. Ball filling and check
  5. Spring filling and check
  6. Hole feeding and check
  7. Oil brush
  8. Short spring fitting and check
  9. Piston feeding and check
  10. Vice piston feeding and check
  11. Transfer assembly part to the house
  12. Cap feeding and check
  13. Cap pressure
  14. Defect part ejection
  15. Discharge for the good production
Technical Specifications
Voltage380VAC /50HZ, 15A
Power3000W
Dimension3500*3500*1800mm
Weight2200kg
Air Pressure0.5~0.8MPa
Operating Speed60-65 pcs/min
Frequency50hz
Application

Designed for sprayer pump production manufacturers in industrial settings.

Frequently Asked Questions
Q: I am interested in your product, can you supply?
A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.
Q: What do I need to provide documents?
A:
  • The material of your product
  • The size of your product and the pattern
  • The shape of your product
Q: What is the lead time?
A: 45-90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, or by express delivery
Q: Do you have the CE certification?
A: Yes, we have CE certification
Q: What document will you provide?
A:
  • Installation manuals
  • Maintenance manuals
  • Electrical schematics diagram
  • For medical machines: IQ, OQ documentation
  • Spare part list
Q: What is the material of your machine?
A: Most parts are 45# steel, with product-contact components made from stainless steel S304
Q: What services can we provide?
A:
  • Accepted Delivery Terms: FOB
  • Accepted Payment Currency: USD, EUR, HKD
  • Accepted Payment Type: T/T, Cash
  • Language Spoken: English, Chinese
