Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert
Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert
Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert
Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert
Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert
Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert
Specifications
Payment Terms :
TT
Supply Ability :
10 PCS
Delivery Time :
90~150 days
KVA :
3.5 kw
Warranty :
1-year
Lead Time :
90-120 days
After-sales Service Provided :
Service Machinery Overseas
Dimensions :
3500mm*2200mm*1800mm(L*W*H)
Certification :
CE ISO90001
Weight (KG) :
2500kg
Price :
$105,000~120000
Brand Name :
Gereke
Pneumatic :
5-6kgf/m2
Place of Origin :
China
voltage :
380 V, 220 V
MOQ :
1 set
Packaging Details :
Wooden
Advantage :
High Efficiency Low Cost
Speed :
60~80 pcs/min
Description

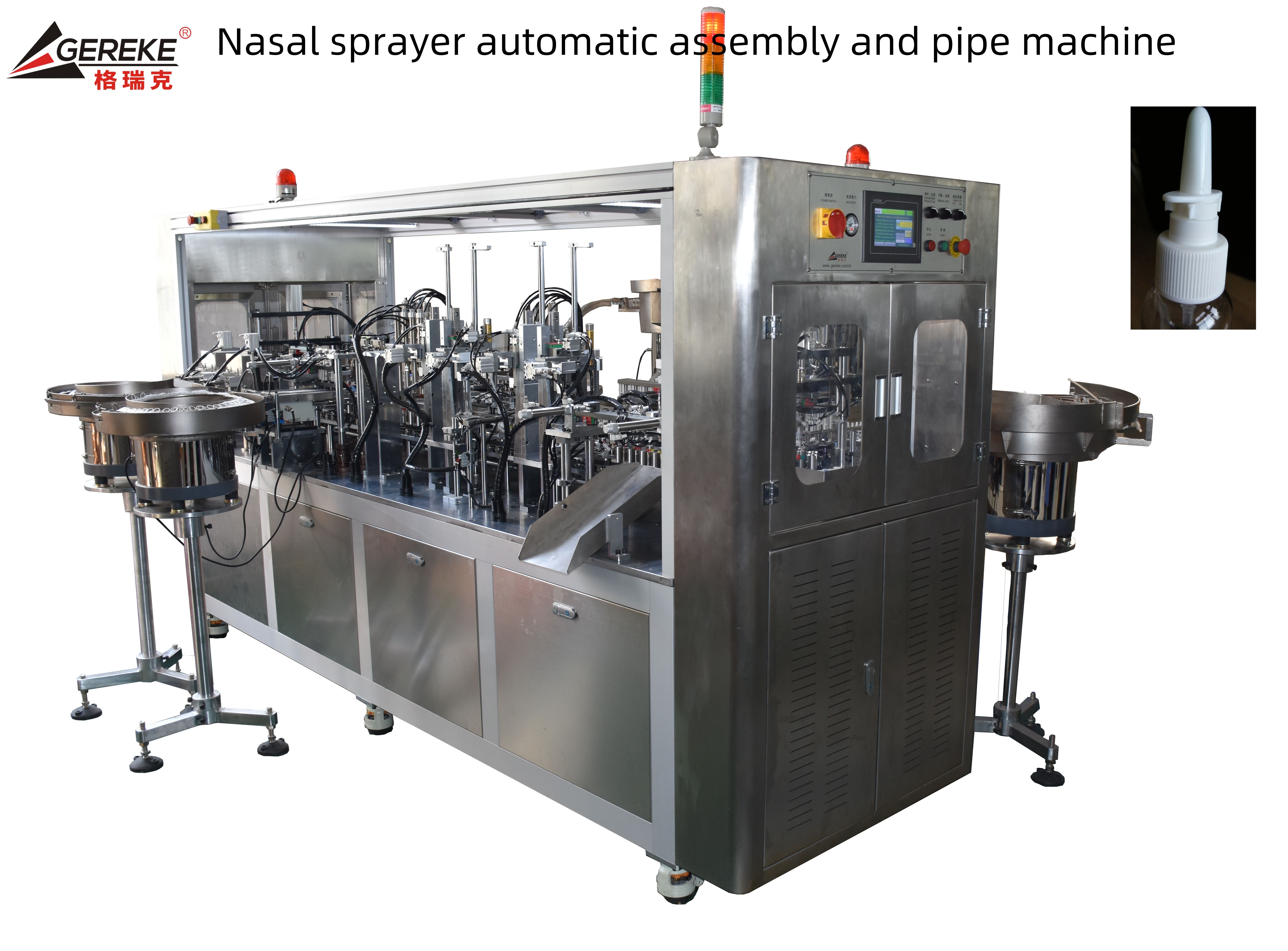

Nasal Spray Pump Automatic Assembly Machinery With High Speed 3600 Pcs Hour
Product descriptions from the supplier
  • Automatic Assembly: Simplifies production processes for nasal spray pump assembly.
  • High Power Output: 3000W ensures efficient and powerful performance.
  • Durable Construction: Built with 45# steel for long-lasting reliability.
  • Precision Engineering: Delivers precise assembly with 50-60 pcs/min speed.
  • Environmentally Friendly Packaging: Ensures safe delivery with professional services.

Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert

Machine structure make from steel S45C.
  • Intelligent System: High quality PLC system integrated with touch screen and inverter. It is easy to operate and energy saving.
  • Machine Transmission: Adopted high performance electronic cam transmission system, stabilized and durable.
  • Feeding System: High performance vibrating bowl feeder
Machine major component origin list:
No. Product Producer Origin Country
1 Solenoid valve Sch French
2 Photo sensor/fiber optic Panic/Keyence Japan
3 Main motor China Taiwan,INOVANCE China taiwan
4 PLC INOVANCE/Mitsu China/Japan
5 Relay Schder/Honey French/USA
6 Proximity sensor Autonics Korea
7 Air filter China taiwan China taiwan
8 Cylinder SMC /Air tac Japan/China taiwan
9 Electronic cam koyo Japan
10 Inverter Shihlin/Delta China taiwan
11 Stroke/rod eye Iko,Misumi Japan

Nasal Spray Pump Automatic Assembly Machinery 3600 Pcs Hour for Gasket Fitting Dip Tube Insert

Product Paramenters
Voltage 380VAC /50HZ,15A
Power 3000W
Dimension 4000*2100*1800 mm
Weight 2800kg
Air Pressure 0.5~0.8MPa
Operating Speed 3000-36000 pcs/hour
Frequency 50hz
FAQ
Q: I am interested in your product, can you supply.

A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen: Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/

Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts: lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump

Q: What do I need to provide documents?

A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.

Q: What is the lead time ?

A: 45~90 days after receiving the advance payment and samples

Q: How do you shipment the product?

A: By sea, by air, by express.

Q:Do you have the CE certification ?

A:Yes ,we have the CE certification .

Q:What document will you provide ?

A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list

Q:What is the material of your machine ?

A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.

Q:. what services can we provide?

A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
