GS-SW3201730200-UC-G is a high-performance uncooled InGaAs SWIR camera operating in the 0.9–1.7μm spectral band with simple operation. It adopts a 320*256 InGaAs FPA with 30μm pixel size, supporting a maximum full-resolution frame rate of 200Hz. Standard configuration is GigE digital signal output; PAL/NTSC analog video interface can be customized on demand for special system requirements. Exclusive display and control software is matched for operation, complete SDK packages are provided to facilitate customers’ secondary development work. With ultra-compact and lightweight mechanical design, this camera can be flexibly integrated into all types of optoelectronic systems. It supports arbitrary-position ROI readout to boost frame rate as required, and is fitted with standard C lens mount for convenient optical assembly. Developed and manufactured by Gatherstar Optoelectronic with 15 years of optoelectronic R&D experience, all cameras pass strict ISO & CE quality inspection. We provide customized mechanical and functional modification services for various OEM project demands.

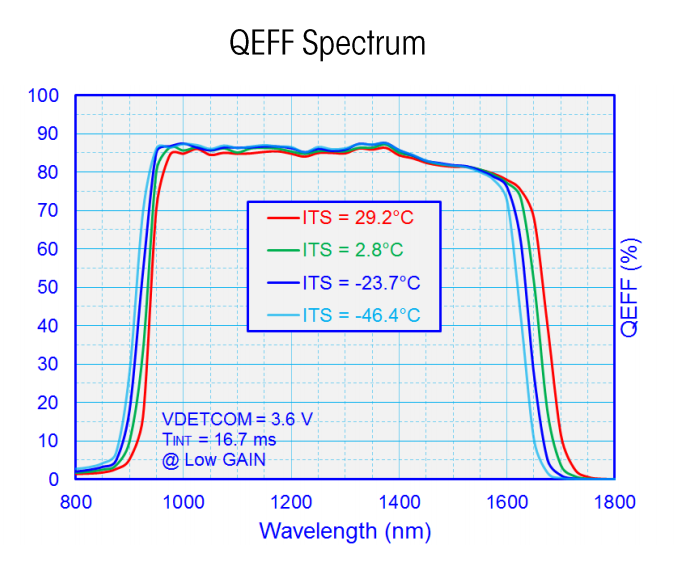

1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% within 1.0μm–1.6μm waveband
2. 320*256 resolution and 30μm large pixel size for outstanding low-light imaging performance
3. Uncooled structure with power consumption below 5W, energy-saving for long-time continuous operation
4. Independent automatic & manual gain adjustment, manually adjustable image contrast
5. Onboard real-time non-uniformity pixel correction for consistent uniform imaging results
6. Standard GigE RJ45 digital output; PAL/NTSC analog video is optional customized function
7. Arbitrary ROI setting to increase frame rate for high-speed target tracking
8. Supports integrated on-board tracking functionality

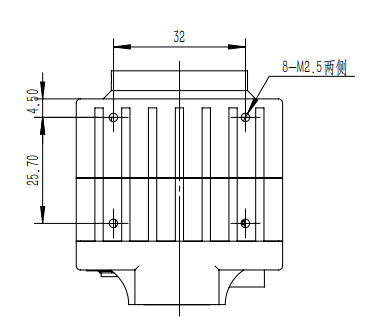

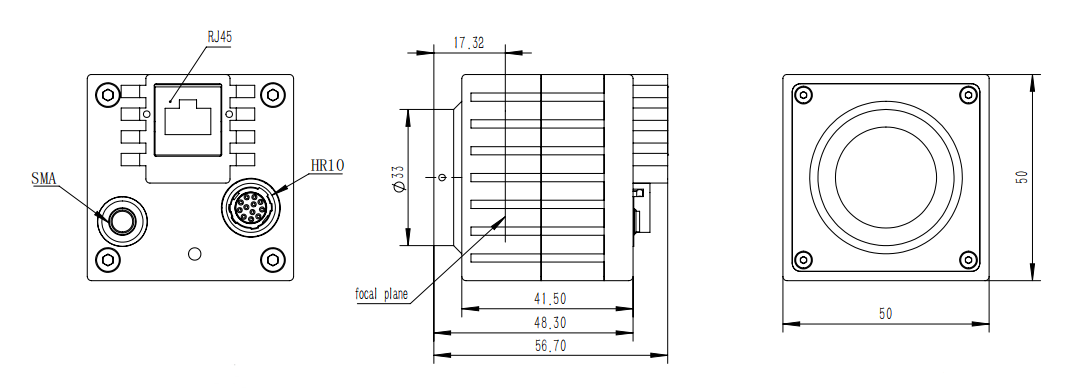

9. Standard C lens mount and reserved M2.5 mounting holes for flexible equipment installation
10. Miniature lightweight body, wide temperature range suitable for laboratory and field detection equipment

Note: Specifications are for reference only and subject to change without prior notice.

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal detection, Remote sensing search & rescue, Camouflage target identification, Industrial garbage sorting, Semiconductor internal defect inspection

Q1: Does this camera support analog signal output?

A: GigE digital output is standard. PAL/NTSC analog video with SMA interface is optional and customizable according to your project demands.

Q2: Is ROI function available to lift frame rate?

A: Arbitrary ROI area is supported. Restricting the readout region can effectively improve the working frame rate for high-speed target observation.

Q3: Does this model adopt cooling system? What is its power consumption?

A: This is an uncooled camera without TEC cooling, with power consumption less than 5W for energy-efficient long-running use.

Q4: Can I get SDK for secondary development? Is OEM customization available?

A: Complete cross-platform SDK, demo codes and operation manuals are provided. We support customized housing and imaging functions for OEM orders.

Q5: What is your standard product warranty policy?

A: We offer a 1-year standard warranty, together with long-term technical support and spare parts supply after sales.
