GS-SW3201730300-C-G is a high-performance InGaAs SWIR camera working within the 0.9–1.7μm spectral band with simple operation. It adopts a 320*256 InGaAs FPA with 30μm pixel size, supporting up to 300Hz full-resolution frame rate. The camera takes GigE digital signal as standard output; PAL/NTSC analog video interface can be customized on demand for special system matching. Exclusive display and control software is equipped, and complete SDK packages are provided to support customers’ secondary development work. This camera is fitted with built-in TEC cooling, and comes with adjustable cooling modes to adapt to various site environments. It supports arbitrary-position ROI readout to lift frame rate as required, and features replaceable C/CS lens mount for seamless integration with spectrometers and customized optoelectronic equipment. Developed and manufactured by Gatherstar Optoelectronic with 15 years of optoelectronic R&D experience, all cameras pass strict ISO & CE quality inspection. We provide flexible OEM customization service on mechanical structure and imaging functions for unique project demands.

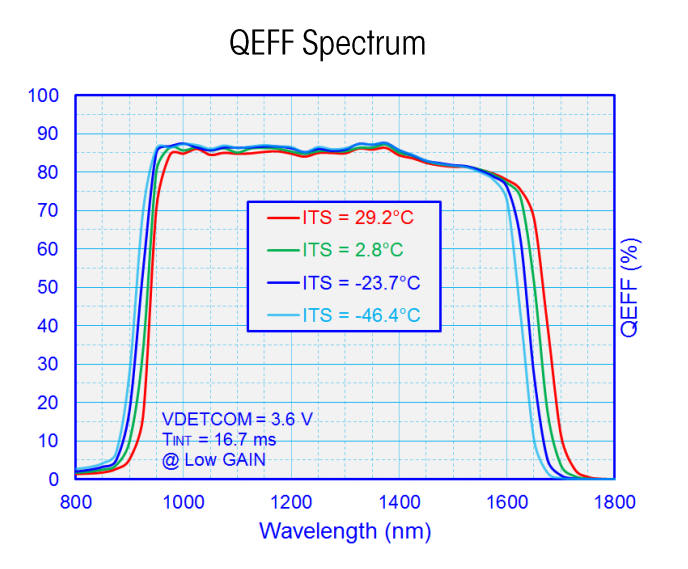

1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% from 1.0μm to 1.6μm
2. 320*256 resolution & 30μm large pixel size for outstanding low-light detection performance
3. Built-in TEC cooling with automatic and manual dual cooling adjustment modes
4. Independent auto/manual gain adjustment, manually adjustable image contrast
5. Onboard real-time non-uniformity pixel correction for uniform imaging results

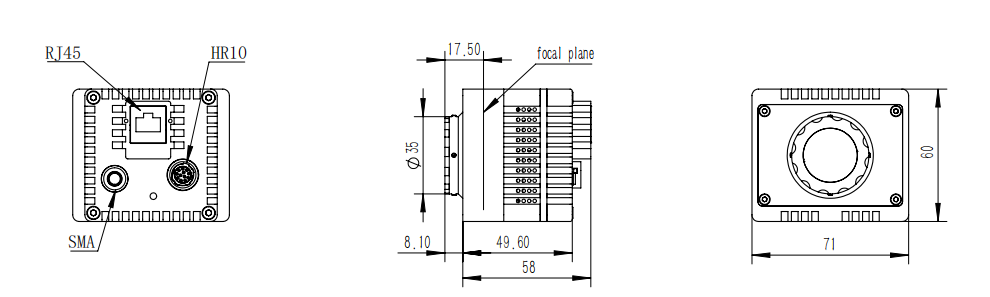

6. Standard GigE RJ45 digital output; PAL/NTSC analog video is optional customized function
7. Arbitrary ROI setting to increase frame rate for high-speed target tracking
8. Supports integrated on-board tracking functionality

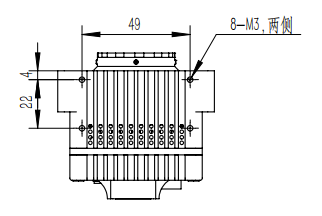

9. Interchangeable C/CS lens mount with reserved M3 standard installation holes
10. Matching proprietary operation software + open SDK, wide environmental adaptability for lab & field use

Note: Specifications are for reference only and subject to change without prior notice.

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal detection, Remote sensing search & rescue, Camouflage target identification, Industrial garbage sorting, Semiconductor internal defect inspection

Q1: Can this camera support analog video output?

A: GigE digital output is standard. PAL/NTSC analog video with SMA interface is optional, we can add this function based on your project demands.

Q2: Can ROI function raise the working frame rate?

A: Arbitrary ROI area is supported. Restricting the readout region can effectively improve the working frame rate for high-speed target observation and tracking.

Q3: What cooling system does this camera adopt?

A: This camera is equipped with built-in TEC cooling system, supporting automatic and manual cooling modes to match various working scenarios.

Q4: Can I get SDK for secondary integration?

A: Complete cross-platform SDK, demo codes and operation manuals are provided free of charge.

Q5: Is OEM customization available and what’s the warranty policy?

A: Yes, we support customized mechanical housing, optical interface and imaging functions. We offer a 1-year standard warranty with long-term technical support and spare parts supply after sales.
