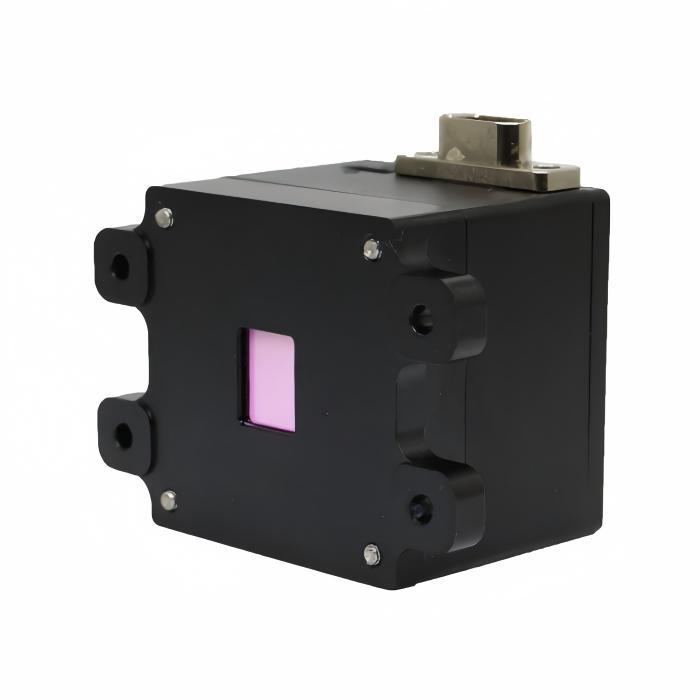

GS-SW640171550-UC-CML-CAN is a high-performance uncooled InGaAs SWIR camera working in the 0.9–1.7μm spectral band. It adopts 640×512 15μm InGaAs FPA, supporting up to 50Hz full resolution frame rate. Equipped with Gbps high-speed CML digital output, matched with CAN bus for equipment control which features fast transmission and strong anti-interference performance. Adopting uncooled energy-saving structure, the camera is ultra-compact and lightweight. It supports arbitrary-position ROI readout to raise frame rate on demand, and reserves interface for onboard centroid tracking function integration. The tiny outline is perfectly suitable for portable optoelectronic pods, laser communication receiving equipment and laser spot detection systems. All cameras pass strict ISO & CE quality inspection. OEM structural & functional customization service is available.

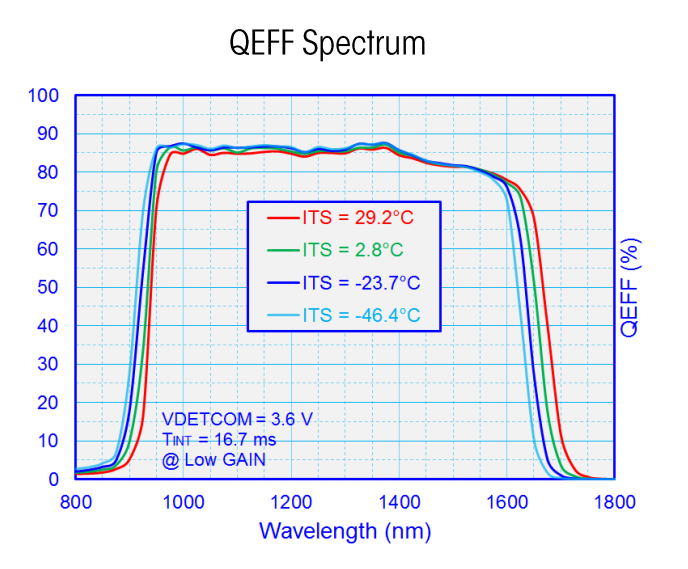

1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% within 1.0μm–1.6μm waveband
2. 640×512 resolution & 15μm pixel, stable 50Hz full-frame imaging performance
3. Uncooled low-power structure, ultra-light weight only 100g without lens
4. Independent automatic & manual gain adjustment, manual brightness adjustable
5. Onboard real-time non-uniformity and defective pixel correction algorithm
6. High-speed CML digital output + CAN bus dual control architecture
7. PAL analog video synchronous output available as customized option
8. Arbitrary ROI configurable to accelerate capture speed for fast targets
9. Global shutter design with complete built-in image processing functions
10. Mini compact outline, ideal for airborne pod and laser communication integration

Note: Specifications are for reference only and subject to change without prior notice.

Optoelectronic pod integration, Laser communication signal reception, Laser spot tracking imaging, Remote sensing search & rescue

Q1: What transmission and control interfaces does this camera use?

A: It adopts high-speed Gbps CML for digital image output, and CAN bus for system control with strong anti-interference capability.

Q2: Does this camera support analog video output?

A: PAL analog synchronous output via SMA-BNC/SMA-CVBS can be customized as an optional function.

Q3: Can centroid tracking function be integrated?

A: Onboard tracking algorithm can be added according to project customization demands.

Q4: What’s your standard after-sales warranty?

A: We provide 1-year standard warranty, plus long-term technical support and spare parts supply.
