GS-SW6401715150-C-SG-CL is a professional TEC cooled InGaAs SWIR laser spot tracking camera operating within 0.9–1.7μm spectral band, featuring high quantum efficiency at 1550nm band. Equipped with 640×512 15μm InGaAs FPA, the camera reaches 150Hz full-frame frame rate, and supports ultra-high-speed tracking up to 2000Hz under 128×116 ROI. Built-in TEC cooling chip effectively restrains dark current to improve imaging uniformity. It supports simultaneous Camera Link digital and PAL/NTSC analog signal output, with external trigger port to meet fast synchronous tracking demands. The front cover is detachable for quick optical interface conversion. Arbitrary ROI configuration is available, and onboard high-speed centroid extraction & real-time coordinate output are integrated, perfectly adapted to laser detection systems. Compact lightweight structure facilitates integration into various optoelectronic equipment. All cameras pass ISO & CE quality inspection.

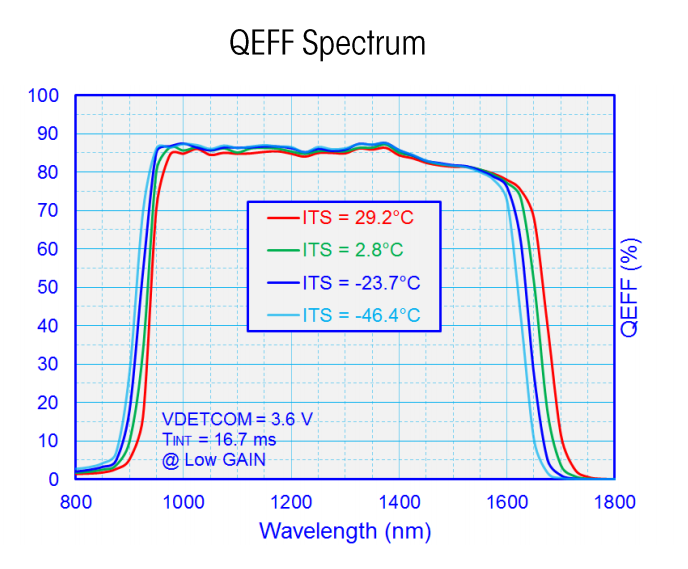

1. High-sensitivity InGaAs detector, quantum efficiency over 70% in 1.0–1.6μm waveband, superior response at 1550nm
2. 640×512 resolution, 15μm pixel, full frame rate up to 150Hz
3. Built-in TEC cooling with automatic/manual dual cooling adjustment to reduce dark noise

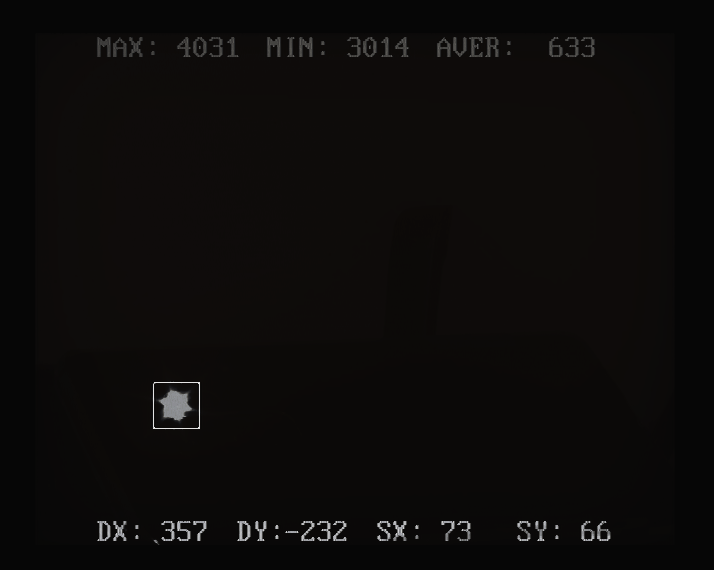

4. Integrated centroid tracking algorithm, tracking accuracy controlled within 1 pixel
5. Extreme high-speed tracking: max 1800Hz@128×128, 2000Hz@128×116 ROI
6. Simultaneous digital + analog output, analog video is optional customized function
7. Detachable front cover, convenient replacement of optical adapters
8. Independent auto/manual exposure & gain, real-time non-uniformity & defective pixel correction
9. Global shutter + external trigger for high-speed synchronous capture

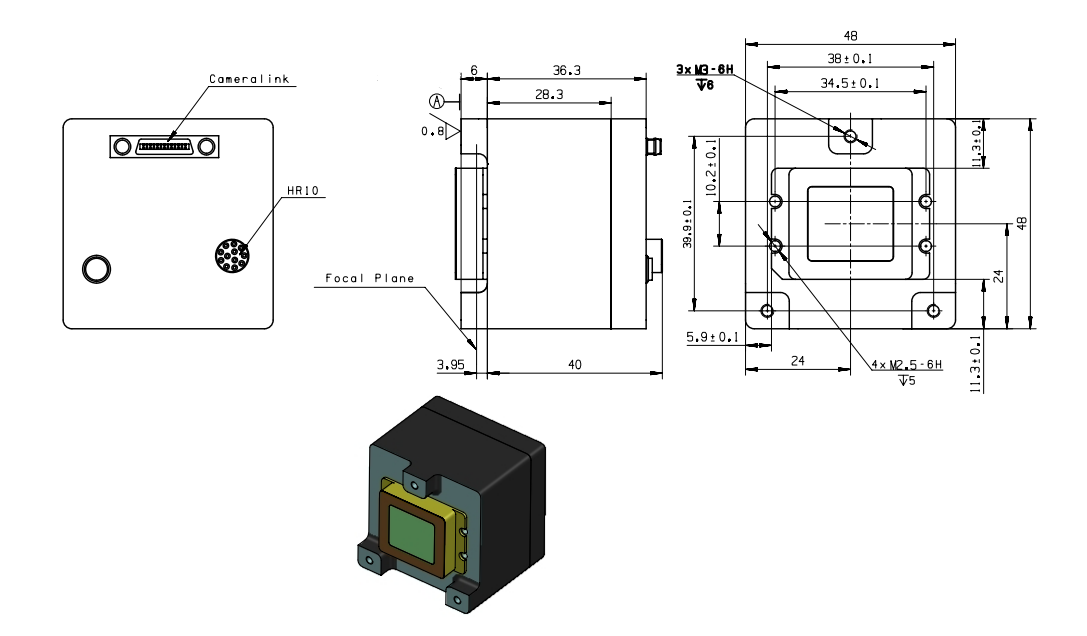

10. Miniature compact outline, easy embedding into laser testing instruments

Note: Specifications are for reference only and subject to change without prior notice.

Laser spot tracking, Near-infrared laser detection, High-speed synchronous optical testing, Hyperspectral inspection, Low-light scientific imaging
