Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Rubber Disc Flange End Flexible Check Valve
Specifications
application :
General
warranty :
1 year
Place of Origin :
Henan, China
power :
Manual
structure :
Check
customized support :
OEM
Product name :
Rubber Disc Flange End Flexible Check Valve
Keyword :
check valve
Calibration range :
DN50~DN800
Pressure level :
1.0~2.5MPa
Temperature range :
-10℃~+100℃
Transmission mode :
Manual
Applicable media :
Water, oil, gas, etc
Main material :
Ductile iron/CS/SS
Type :
Check valve
Description

Rubber Disc Flange End Flexible Check Valve

Rubber Disc Flange End Flexible Check Valve

Main technical parameters

Nominal pressure PN10/PN16/PN25
Face to face standard

GB/T12221-2005, BS5153. DIN F6. EN558-1
Flange connection standard

GB/T17241.6, GB/T9113-2010, EN1092-2
Test standard

GB/T13927-2008, API598
Applicable media Water, oil, gas, etc

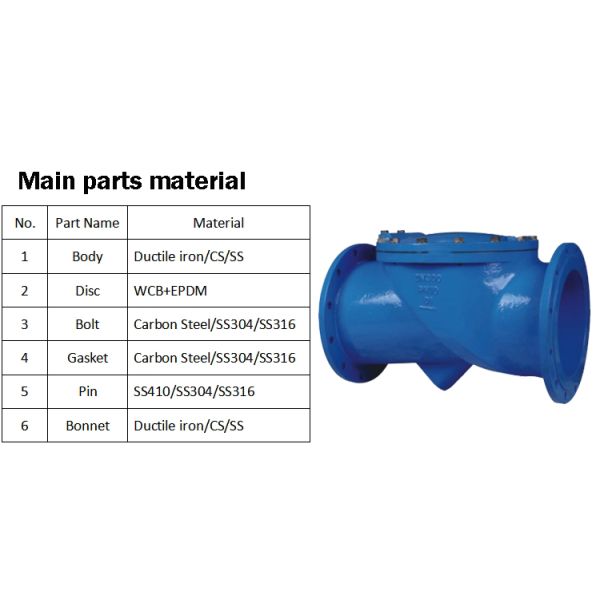

Product structure diagram

Rubber Disc Flange End Flexible Check Valve

Maximum pressure conditions

Size Max pressure (bar) Min/Max Temp (℃) Test Pressure (bar)
Shell Seat
DN50-DN800 10.0/16.0/25.0 -10℃ +220℃ 15.0/24.0/37.5 11.0/17.6/27.5

Dimensions

Rubber Disc Flange End Flexible Check Valve

FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
