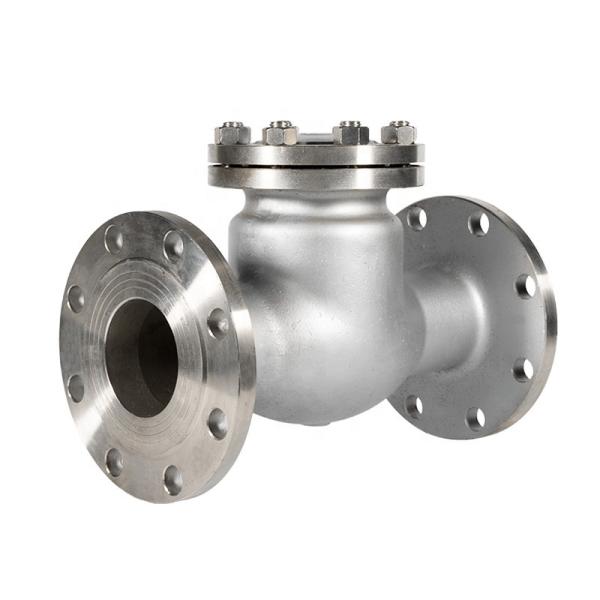

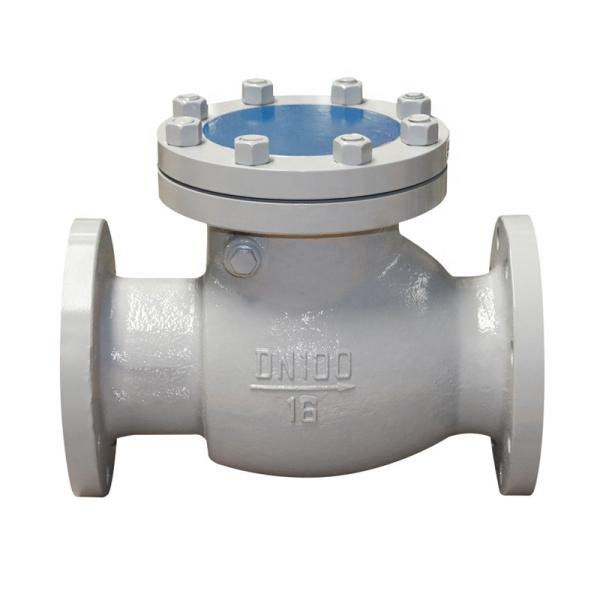

Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Flange End Swing Automotive Check Valve
Specifications
application :
General
warranty :
1 year
Place of Origin :
Henan, China
power :
Manual
structure :
Check
customized support :
OEM
Product name :
Flange End Swing Check Valve
Keyword :
check valve
Calibration range :
DN40~DN600
Pressure level :
1.0~2.5MPa
Temperature range :
-10℃~+220℃
Transmission mode :
Manual
Applicable media :
Water, oil, gas, etc
Main material :
Ductile iron/CS/SS
Type :
Check valve
Description

Flange End Swing Check Valve

Flange End Swing Automotive Check Valve

Main technical parameters

Nominal pressure PN10/PN16/PN25/PN40/PN64,125LB/150LB/300LB5K/10K/16K
Face to face standard GB/T12221-2005, BS5153.ASME B16.10. DIN F6, EN558-1. JIS B2002
Flange connection standard GB/T17241.6, GB/T9113-2010, EN1092-2JIS B2212
Test standard GB/T13927-2008. API598
Applicable media Water, oil, gas, etc

Product structure diagram

Flange End Swing Automotive Check Valve

Maximum pressure conditions

Size Max pressure (bar) Min/Max Temp (℃) Test Pressure (bar)
Shell Seat
DN40-DN600 10.0/16.0/25.0 -10℃ +220℃ 15.0/24.0/37.5 11.0/17.6/27.5

Dimensions

Flange End Swing Automotive Check Valve

FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
