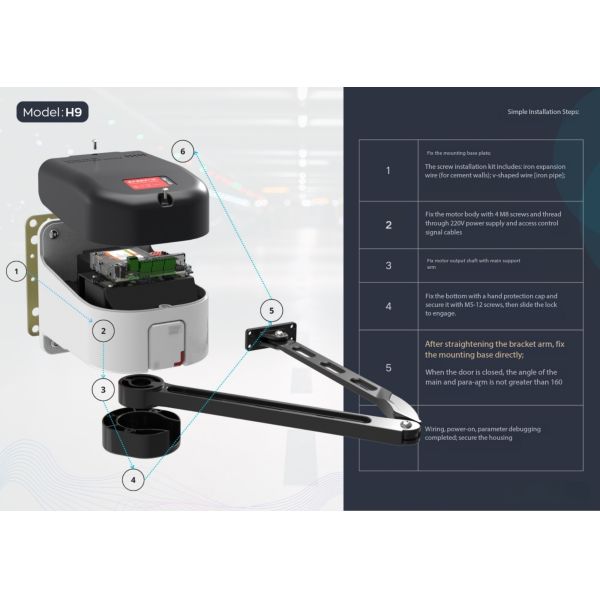

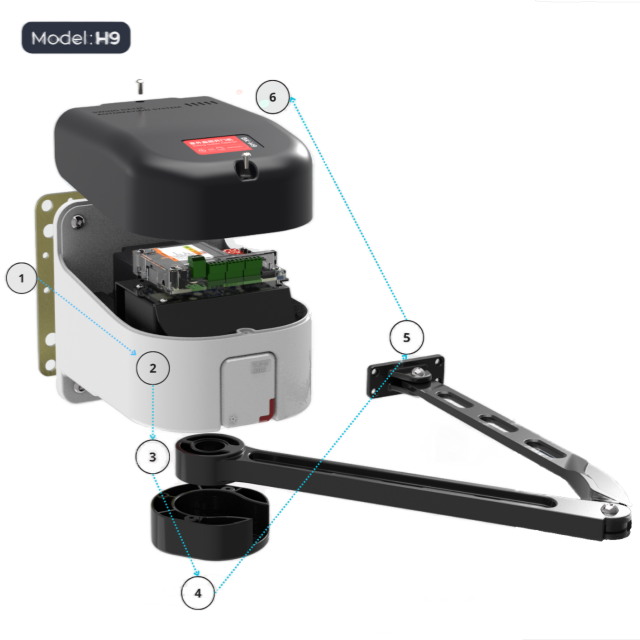

Side Mount Swing Gate Opener Heavy-duty Automatic

The H9 side-mounted heavy-duty door opener is designed for a variety of door applications, including villa entrances, industrial gates, and wind-resistant scenarios. It features a fully aluminum body for lifelong rust resistance. The alloy steel support arm, treated with high-temperature spray coating, works in tandem with a high-speed DC brushless helical gear motor to deliver both powerful performance and quiet operation, ensuring enhanced durability. An intelligent multi-thread controller ensures smooth and stable door movement across different conditions. Equipped with multiple expansion interfaces, it offers flexible compatibility with various functional modules and auxiliary devices for integrated smart control.

Product Features:

• High-Strength Structure: Specifically engineered for heavy-duty doors, ensuring robust and durable performance.

• Self-Locking Support Arm Design: An innovative mechanical self-locking mechanism effectively addresses gear breakage issues common in traditional worm gear and electronic brake systems. It also enables automatic door closing and locking, enhancing safety and reliability.

• Bluetooth-Powered Debugging: Allows quick adjustment of controller parameters via a mobile Bluetooth mini-program. The process is simple and efficient, eliminating the risk of mechanical compression during debugging.

• Dual-Color Passage Indicator: Equipped with high-brightness LED red/green indicator lights. A red light signals when the door is closed, and a green light indicates when it is open, providing clear visual guidance for safer passage.

•

• Usage Scenarios & Corresponding Solutions:
  For heavy-duty doors (width >2m, weight >100kg, height 1.5-2.5m):
  The H9 incorporates a high-load structural design and reinforced gear system to effectively handle high inertia, preventing common issues such as braking failure and gear breakage found in low-power openers.
  For high-friction applications like outdoor iron/wooden doors:
  Equipped with a high-torque starting motor and low-temperature adaptive design, it ensures stable opening and closing even under high friction or in cold environments, solving jamming problems caused by insufficient force in standard openers.
  For high-end aesthetic requirements:
  Featuring an integrated wide aluminum casting and streamlined curved design, its side-mounted form combines strength with elegance, moving beyond the utilitarian look of traditional compact devices.
  For enhanced safety warnings:
  Includes a dedicated multi-color LED indicator panel that clearly displays door status and operation mode, providing traffic-light-like visual guidance to improve passage safety.

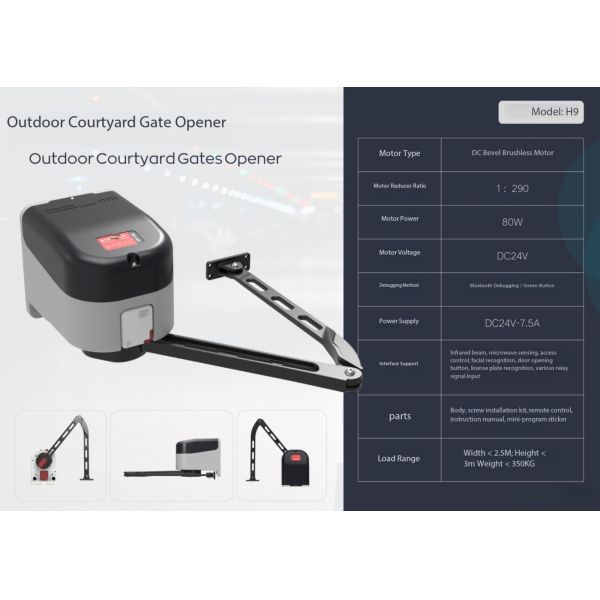

Product electrical parameters:

Input voltage: 220V ± 10%, 50HZ	Power supply: 160W;
Motor voltage: 24V;	Rated power of motor: 60W;
Static power of the device: ≈ 1W;	Motor speed: 1800RPM;
Reduction ratio: 210/1;	Output torque: 78N · m;
Longitudinal kilogram force: 7.73KG · m;	Remote control frequency: 430MHz;
Bluetooth specification: BLE low-power Bluetooth;	Electric lock port output current: 1.2A [supports 2 280KG magnetic locks];
Working temperature: -35 ℃ -85 ℃;	Access control port output current: 0.8A [Face recognition device requires separate power supply];
Operating humidity: 30% to 80% (no condensation);	Remote control distance: ≈ 15M [interference free state];
Door opening and closing speed: adjustable from 3-6S;	Traffic light voltage: 12V [positive];
Waterproof rating: IPX4, waterproof and splash proof;

Product Specifications

Specification parameters: 215 × 161 × 180mm;	Arm size: 350mm;
Axis distance from wall dimension: 145mm;	Outer dimension of shaft distance: 70mm;
Expansion screw hole spacing: 147 × 125mm;	Door leaf base size: 70 × 20mm;
Outer packaging size: 468 × 2746 × 247mm;	Total weight of the product: ± 8.5KG;

Accessories List:

Door body of door opener: 1 set;	Arm bag: 1 set;
Screw package: 1 set;	Warranty card: 1 card;
Instruction manual: 1 copy;	Remote control: 2 pieces;

Product appearance dimension diagram:

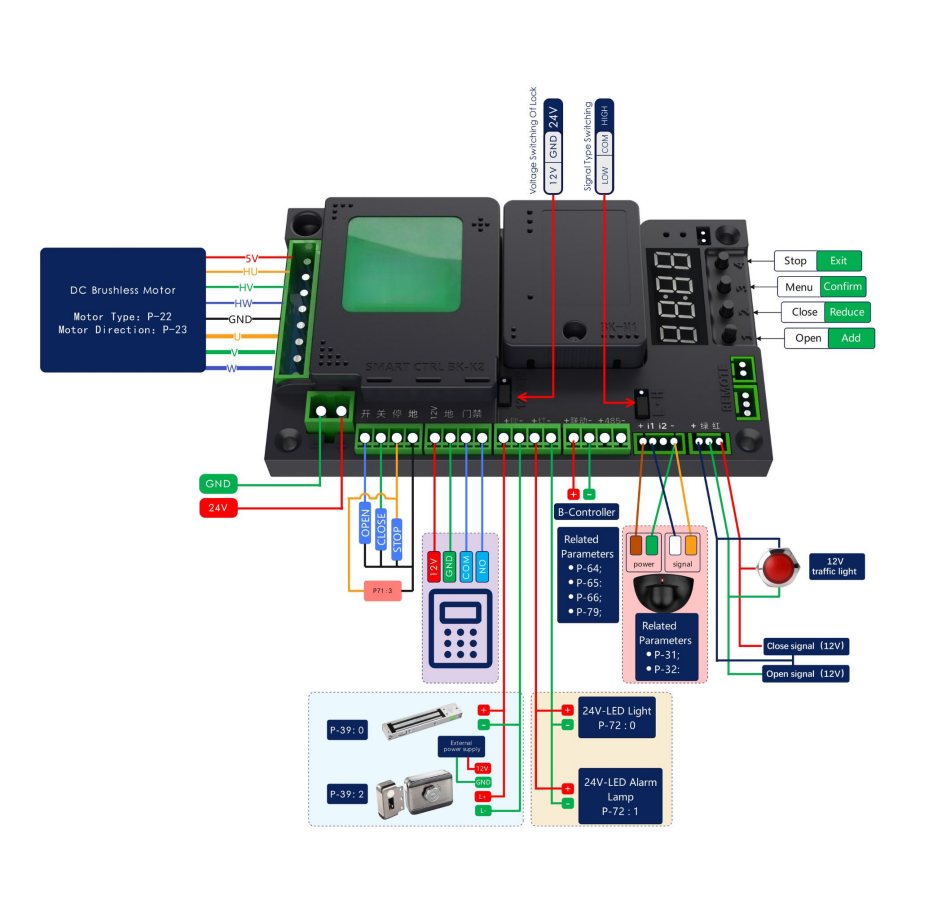

Controller wiring and port definition diagram:

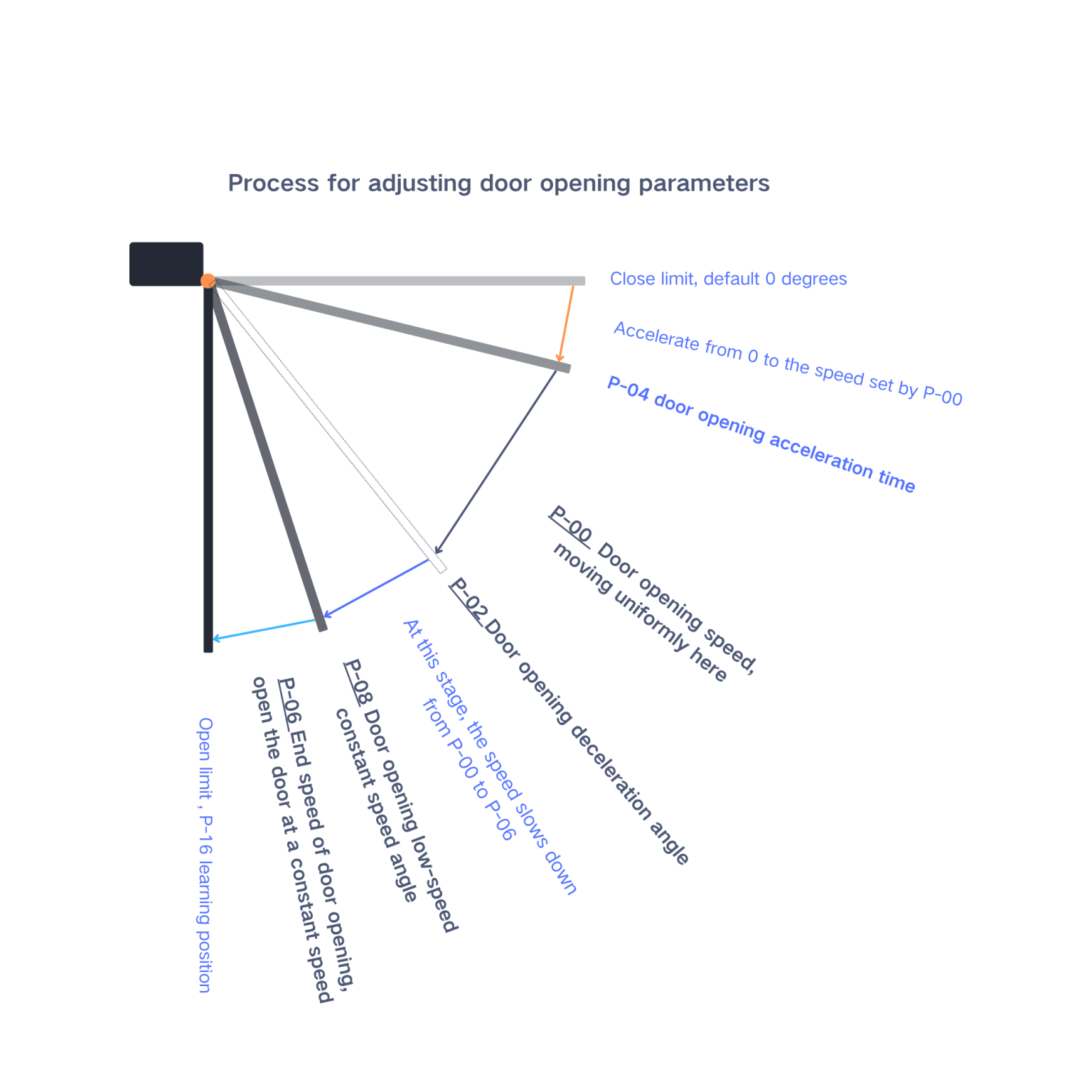

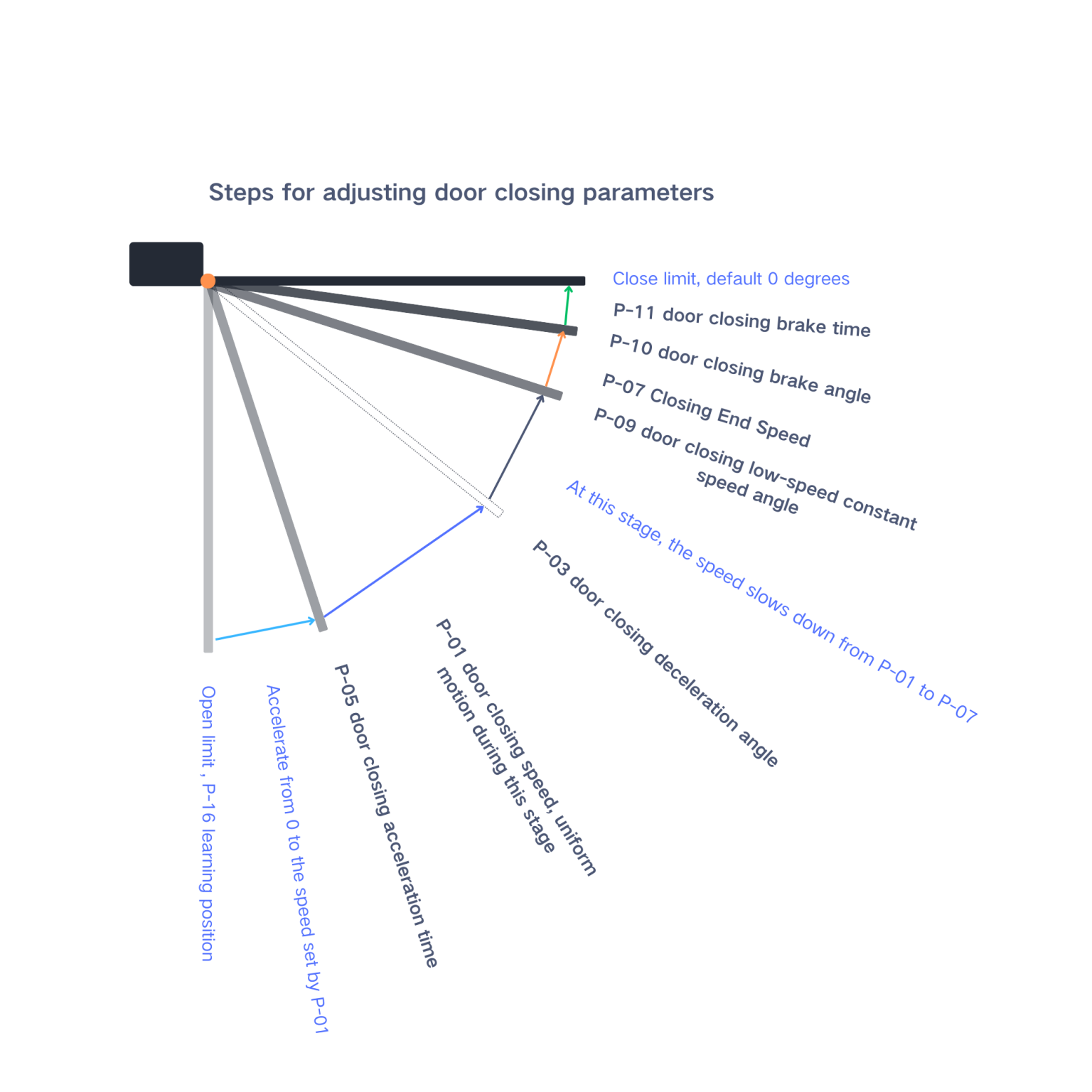

Process for adjusting door opening parameters:
