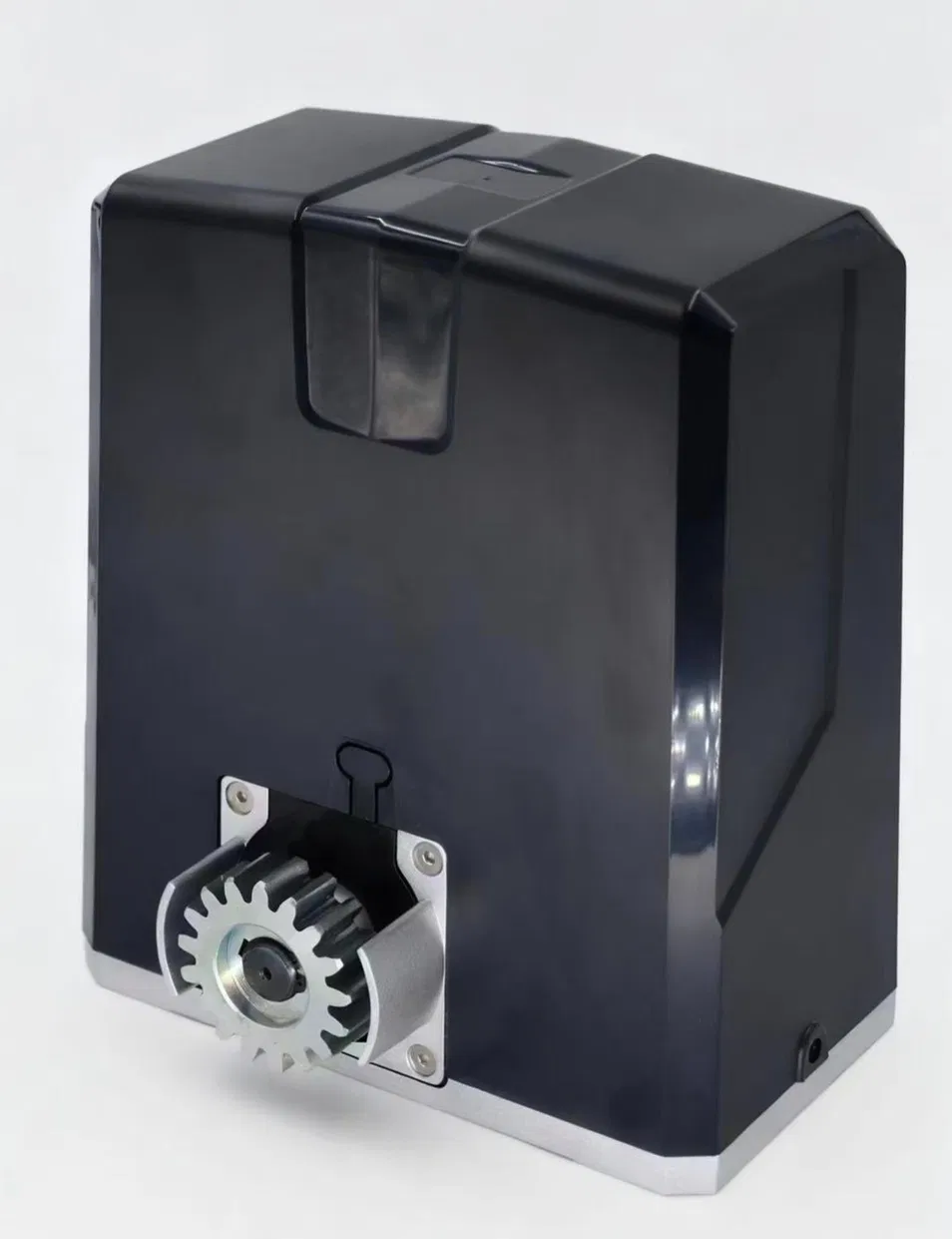

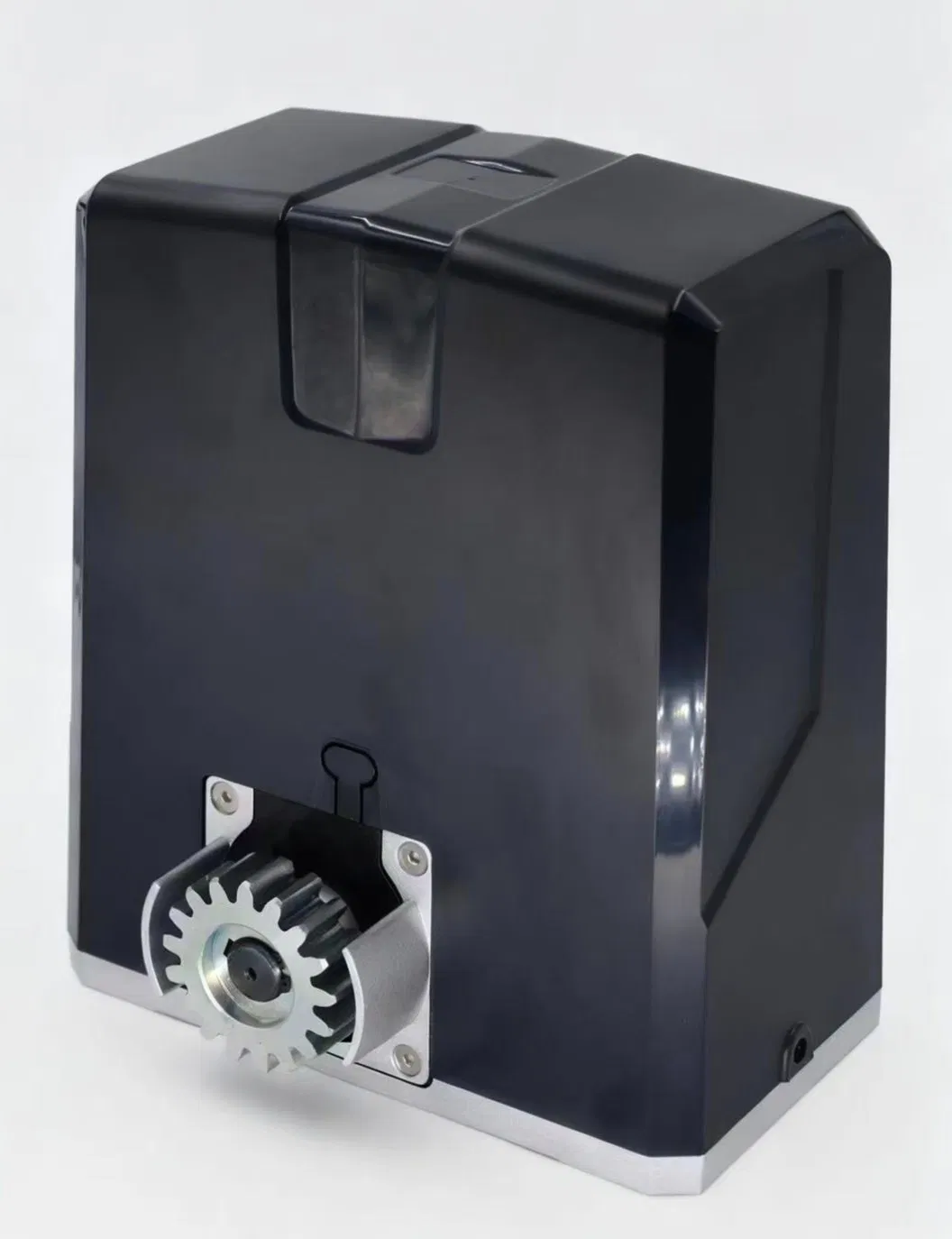

Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Specifications
Rated Power :
400W
Motor Type :
Brushless
Electric Current :
DC
Driving Type :
Electromechanical
Input Power :
AC220V/110V±10%
Dimensions :
37*26*25cm
MOQ :
20
Speed Adjustment :
50%
Limit Switch :
Spring Limit/Magnetic Limit
IP Class :
IP65
Output Power :
DC24V
Noise Level :
≤53db
Working Temp :
-25℃~+65℃
Price :
237
Load Capacity :
2000kg
Max Gate Weight :
2000KG
Load Speed :
7-15m/Min
Description
All-Round Electric Limit Brushless Door Motor Phone Control
Product Overview
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Key Features
  • Brushless Motor Technology: Ultra-long lifespan and maintenance-free operation with no heat generation during extended use and ultra-quiet performance
  • All-Round Electric Limit: Simplified installation and setup without mechanical limit installation; precise limit memory with complete functionality; no relearning required after limit exceedance, clutch release, manual door sliding, or power restart
  • Adjustable & High Speed: Door opening speed adjustable within 50% range; compatible with curved sliding doors, folding doors, sliding doors with fixed panels, and top-hung sliding doors; high-speed series available for rapid door opening requirements
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Technical Specifications
Model BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Rated Power 200W 300W 400W
Load Speed 7-15m/min
Input Power AC220V/110V±10%
Output Power DC24V
Limit Switch All-round electric limit
Noise ≤53dB
Working Temperature -25℃~+65℃
IP Class IP65
Company Profile
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have specialized in the research, development, and production of access control systems and smartphone access control systems.
We have developed a comprehensive series of high-quality DC sliding door motors, including brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for both residential and industrial applications.
Our motors feature standard speed and high-speed models with excellent soft-start, soft-stop performance, and overall operational efficiency. As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents, including a globally unique electronic limit switch technology.
Our products are distributed both domestically and internationally and have received high praise from users worldwide. With an independent R&D team and strong development capabilities, we provide OEM/ODM services committed to delivering high-quality products that help partners expand their businesses and assist users in achieving smarter automation goals.
Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity Brushless Automatic Gate Motor with All-Round Electric Limit and 2000kg Load Capacity
Frequently Asked Questions
Inventory Availability:
  • Maintain sufficient inventory with 100 sets available for each product type
  • Inventory products feature neutral packaging without branding
Delivery Time:
Shipment occurs on the same day or next day following payment receipt
Customization Options:
  • Product logo customization available free for orders of 20+ units
  • Outer packaging customization available free for orders of 100+ units
After-Sales Service:
  • Most products include a one-year warranty period starting from goods receipt
  • Free accessories provided during warranty period (shipping costs excluded)
  • Complimentary technical support provided
