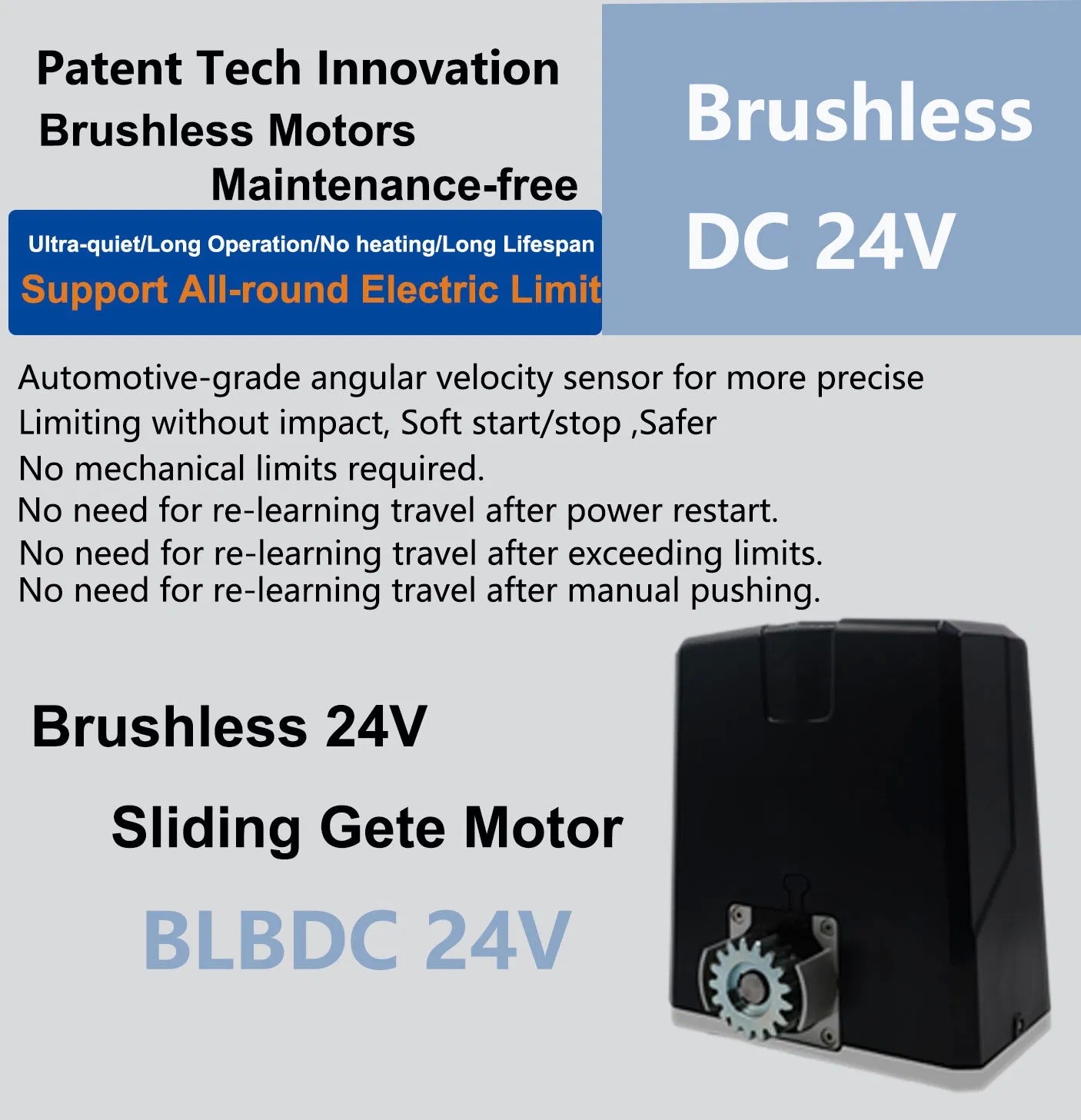

BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
Specifications
MOQ :
1
Output Power :
DC24V
Motor Type :
DC Brushless Motor
Specification :
34*27*40cm
Price :
164
Load Speed :
7-15m/Min
Max Travel Limit :
10m
Working Voltage :
DC24V
Max Gate Weight :
1000kg
Noise :
≤53db
Input Power :
AC110-240V
IP Class :
IP65
Rotation Speed :
2100rpm
Operating Speed :
7-15m/min
Working Temp :
-25℃~+65℃
Protection Class :
IP65
Rated Power :
200W
Description
BLB1500 Heavy Duty Sliding Gate Opener Brushless Motor All-Round Electric Limit
Product Overview
Advanced brushless sliding gate motor featuring cutting-edge technology for reliable, maintenance-free operation with superior safety features and intelligent control compatibility.
Key Advantages
  • Brushless motor technology for ultra-long service life and maintenance-free operation
  • No heat generation with low loss, capable of 24-hour continuous operation
  • DC24V safe low voltage with backup battery and solar panel compatibility
  • Non-stop power supply during outages, suitable for off-grid and emergency use
  • All-round electric limit system eliminates mechanical limits and re-learning requirements
  • Soft start & soft stop with anti-collision and obstacle reversal protection
  • Adjustable speed, force, and slow-down distance for various gate types
  • IP65 high protection rating with wide working temperature range (-30℃ to +65℃)
  • Rich external interfaces for intelligent control system integration
  • Factory direct supply with OEM/ODM support and CE certification
Technical Specifications
Specification BLB1000 BLB1500 BLB2000
Max Gate Weight 1000KG 1500KG 2000KG
Motor Type DC Brushless Motor
Input Voltage AC220V±10%
Working Voltage DC24V
Rated Power 200W 300W 400W
Operating Speed 7-15m/min
Limit System All-round Electric Limit
Max Travel Distance 10m 10m 15m
Protection Class IP65
Noise Level ≤53dB
Working Temperature -30℃~+65℃
Backup Battery Optional
Solar Panel Compatible Supported
Certification CE Certified
Product Images
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
Key Configurations
  • Brushless DC motor (no heat, long life, maintenance-free)
  • DC24V safe low voltage with backup battery & solar compatible
  • All-round electric limit (no mechanical limit, no re-learn needed)
  • Soft start & soft stop, adjustable speed & force
  • Obstacle reversal & anti-collision protection
  • IP65 waterproof & dustproof rating
  • Remote control + multiple external interfaces
  • CE certified, OEM/ODM available
After Sales Service
Standard Warranty: 18 months
Extended Warranty: Optional coverage up to 24 months
Global Support: 24/7 technical assistance and spare parts supply
Training: Remote operation/maintenance training
Manufacturer Profile
BLB1500 Heavy Duty Sliding Gate Opener with Brushless Motor 1000kg Max Gate Weight and IP65 Waterproof
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities. For decades, we have focused on the R&D and production of access control systems and smartphone access control systems. We have developed a series of high-quality DC sliding door motors, covering brushless DC motors, DC series motors, and AC series motors, with load capacities ranging from 800 kg to 6500 kg, suitable for general residential and industrial applications. These motors include standard speed and high-speed models, featuring excellent soft-start, soft-stop performance, and overall performance. We have become a leading enterprise in the Chinese DC sliding door motor market and hold numerous patents, including a globally unique electronic limit switch. Our products sell well both domestically and internationally and are highly praised by users. We have an independent R&D team and strong R&D capabilities. We provide OEM/ODM services, committed to providing high-quality products, helping partners expand their businesses, and assisting users in achieving smarter goals.
Frequently Asked Questions
Is there any inventory available?
Having sufficient inventory; 100 sets of inventory for each type of product; The inventory products are in neutral packaging and do not have a brand.
Delivery Time
Ship on the same day or the next day after receiving payment.
Customized Content
Product logo customization: For machines with more than 20 sets, logos can be customized for free; Customization of outer packaging: Free customization of outer packaging for more than 100 sets.
After-sales Service
Most products have a one-year warranty period, starting from the receipt of the goods; Free accessories provided during the warranty period, excluding shipping costs; Provide free technical support.
