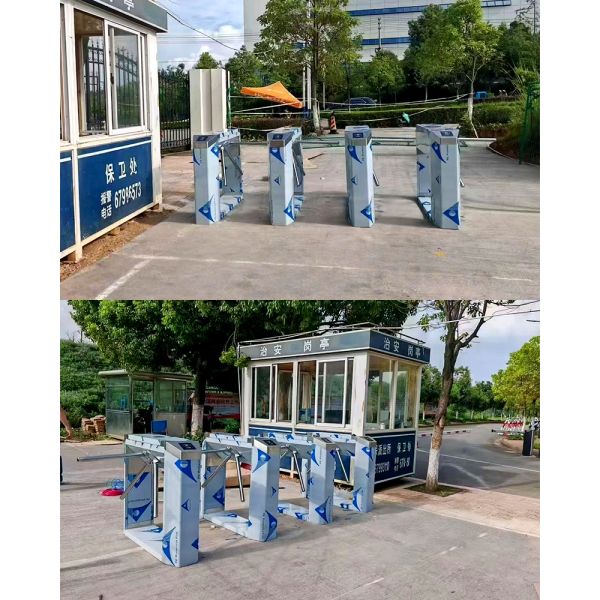

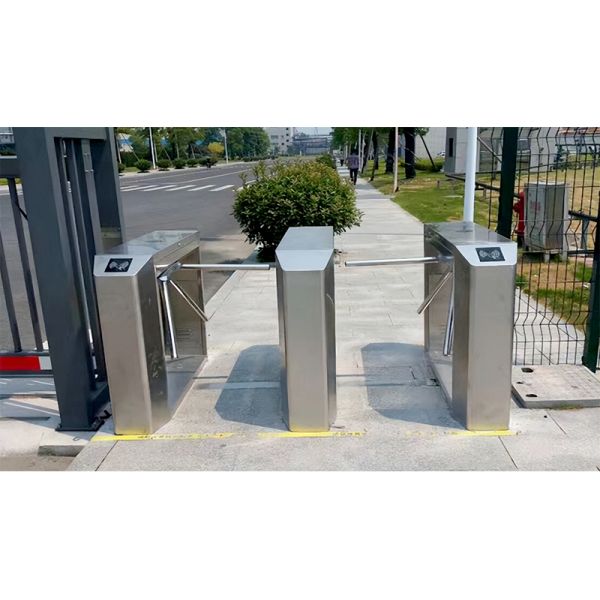

Rfid Tripod Turnstile Gate Z01 Anti Reverse Pedestrian Entry Control System
Rfid Tripod Turnstile Gate Z01 Anti Reverse Pedestrian Entry Control System
Rfid Tripod Turnstile Gate Z01 Anti Reverse Pedestrian Entry Control System
Rfid Tripod Turnstile Gate Z01 Anti Reverse Pedestrian Entry Control System
Rfid Tripod Turnstile Gate Z01 Anti Reverse Pedestrian Entry Control System
Rfid Tripod Turnstile Gate Z01 Anti Reverse Pedestrian Entry Control System
Specifications
Packaging Details :
Export-standard wooden box
Payment Terms :
T/T
Supply Ability :
1000sets/month
Model Number :
JSD-Z01
Place of Origin :
China
Passage Width :
550mm
Opening Time :
0.5S
Brand Name :
Shenzhen Jieshida Technology Co., Ltd
Size :
1200×280×980mm
Price :
USD 300-1,500
Delivery Time :
5-8 working days
MOQ :
1 SET
Certification :
ISO9001
Working Voltage :
DC24V / DC12V
Material :
304 Stainless Steel
Power Supply :
AC220V±10%, 50Hz±4%
Description
Z01 Anti Reverse Tripod Turnstile Gate RFID Access Control for Factory Entry

Anti Reverse Tripod Turnstile Gate RFID Access Control for Factory Entry

The Anti-reverse Tripod Turnstile Gate is a reliable access control solution for secure pedestrian entry management. Built with 304 stainless steel, it offers strong durability, anti-corrosion performance, and stable operation for long-term use. The gate supports remote control and RFID access, helping manage one-way or bi-directional passage efficiently. With anti-reverse protection, smooth rotation, and easy integration with modern access systems, it is ideal for offices, factories, schools, stations, and other secure entry points.


Product Features
Anti-reverse Function
Ensures one card for one person and prevents illegal passage. Emergency unlock function, the arm automatically drops down when power is off.
Intelligent Braking System
Stable and smooth operation with memory function for continuous card swiping.
Multiple Operation Modes
Supports normally open, normally closed and free passage modes. Self-checking and fault alarm function during startup.
System Integration
Standard access control interface, supports fire alarm linkage and remote control. Supports IC/ID card, face recognition and QR code systems.
Frequently Asked Questions
Can the tripod turnstile be used outdoors?
Yes, it supports indoor and outdoor installation. Awning is recommended for outdoor use.
What access control systems are supported?
IC/ID card reader, QR scanner, face recognition and button control are supported.
Does the turnstile support anti-tailgating?
Yes, the system supports anti-tailgating and anti-reverse passage functions.
What happens when power is off?
The arm will automatically drop down for emergency evacuation.
Can OEM or ODM service be provided?
Yes, customized logo, appearance and functions are available.
Applications

Office Building
Tripod turnstile gates help control employee access, prevent unauthorized entry, and improve daily attendance management in office environments with stable pedestrian flow.

Factory
In factories, tripod turnstiles provide reliable worker access control, reduce unauthorized entry into production areas, and support shift attendance tracking for better workforce management.

School
Tripod turnstile gates enhance campus security by managing student and visitor access while preventing unauthorized individuals from entering school facilities.

Residential Community
For residential communities, tripod turnstiles improve pedestrian entrance management and strengthen community security through RFID card or QR code verification.

Subway Station
At subway stations, tripod turnstiles efficiently manage high passenger traffic, reduce fare evasion, and maintain orderly entry and exit during peak commuting hours.

Government Building
Tripod turnstiles help government buildings strengthen security control by limiting access to authorized personnel and improving entrance management efficiency.

Commercial Center
In commercial centers, tripod turnstiles help organize visitor flow, improve security management, and support controlled access in busy public areas.

Exhibition Hall
For exhibition halls, tripod turnstiles support ticket verification, improve crowd management efficiency, and help maintain organized visitor entry during large events.

Technical Parameters
Parameters Value
Drive Mode Motor / Solenoid Valve
Passage Direction One-way / Two-way
Opening Time 0.5S
Anti-reverse Function Support
Power Supply AC220V±10%, 50Hz±4%
Working Voltage DC24V / DC12V
Traffic Speed ＞30 Persons/Minute
Operating Noise ＜50DB
Communication Interface RS485 (≤1200m), TCP/IP Optional
Input Signal Dry Contact / 12V Pulse Signal
Working Environment Indoor / Outdoor (Awning Recommended)
Working Temperature -10℃ ~ 60℃
Relative Humidity 5% ~ 95%, No Condensation
Passage Width 500-550mm
Arm Length 510mm
Net Weight 45KG
Cabinet Material 304 Brushed Stainless Steel
Cover Thickness 1.2mm
Cabinet Thickness 1.0mm
Dimension 1200*280*980mm
