Specifications
Supply Ability :
1000sets/month
Brand Name :
Jieshida
Material :
304 Stainless Steel,SS304,AISI 304
MOQ :
1 SET
Access Method :
RFID / Access Control System
Model Number :
JSD-Z06
Installation Type :
Floor Mounted
Passage Direction :
Single or Bi-directional
Certification :
ISO9001
Delivery Time :
5-8 working days
Payment Terms :
T/T
Place of Origin :
Shenzhen City, Guangdong Province, China
Input :
220V,50HZ or 110 V ,50HZ
Pass Width :
550mm
Price :
USD 300-1,500
Packaging Details :
Export-standard wooden box
Description

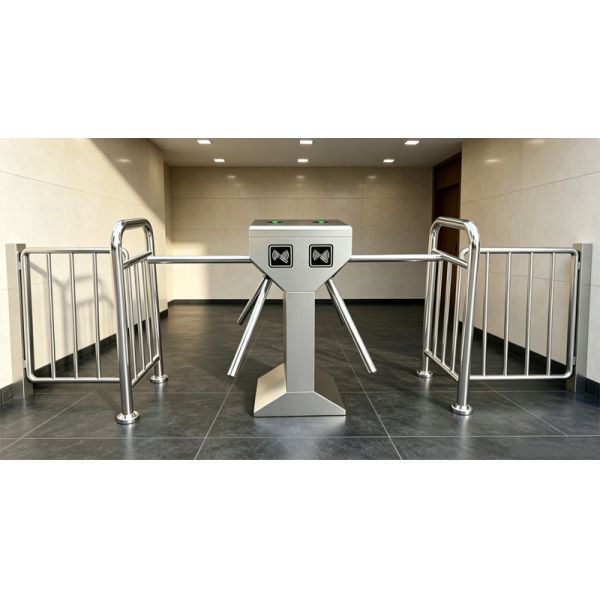

JSD-Z06 Heavy Duty Tripod Turnstile Gate for Construction Sites
Product Overview

The JSD-Z06 Heavy Duty Tripod Turnstile Gate is a robust and reliable access control solution specially designed for construction sites, industrial facilities, and high-security areas. Manufactured from premium 304 stainless steel, the turnstile offers strong impact resistance, corrosion protection, and stable long-term operation in demanding environments. Its heavy-duty structure and fast passage capability help manage large worker flow efficiently while preventing unauthorized access. Supporting RFID systems, access control integration, and RS485 communication, the JSD-Z06 is suitable for intelligent personnel management and attendance tracking. With flexible arm length options and stable performance under harsh weather conditions, this tripod turnstile is ideal for both indoor and outdoor security applications.

Product Features

  • Heavy-duty 304 stainless steel construction for durable performance

  • Designed for harsh environments such as construction sites

  • Fast and stable pedestrian access control

  • Supports RFID and third-party access control integration

  • Compact tripod structure saves installation space

  • Anti-tailgating function improves security management

  • Supports one-way and two-way passage control

  • RS485 communication interface for system integration

  • Low maintenance and long operational lifespan

  • Suitable for indoor and outdoor installation environments

Technical Details
Item Specification
Product Model JSD-Z06
Material 304 Stainless Steel
Dimensions 420 * 660 * 990 mm
Arm Length 500 – 900 mm
Rated Power 120W
Input Signal Dry Contact 12V
Communication Interface RS485
Communication Distance ≤1200m
Power Supply AC220V/110V ±10%, 50/60Hz Optional
Operating Temperature -25℃ to +60℃
Relative Humidity ≤90%
Open Passage Speed 30–45 people/min
Application Scenarios
Construction Sites

Core Problem Solved:
Controls worker access effectively and prevents unauthorized personnel from entering restricted areas.

Industrial Factories

Core Problem Solved:
Improves employee attendance management and enhances factory entrance security.

Warehouse and Logistics Centers

Core Problem Solved:
Manages high-volume pedestrian traffic while protecting operational areas from unauthorized access.

Mining and Energy Facilities

Core Problem Solved:
Provides stable access control in demanding outdoor environments with high durability requirements.

Commercial and Infrastructure Projects

Core Problem Solved:
Ensures organized worker entry and exit during large-scale project operations.

FAQ
Q1: Is the JSD-Z06 suitable for outdoor construction sites?

Yes, the turnstile is built with durable 304 stainless steel and is suitable for indoor and outdoor environments.

Q2: What access control systems are supported?

The JSD-Z06 supports RFID systems and can integrate with third-party access control platforms.

Q3: Does the turnstile support bi-directional access?

Yes, it can be configured for single-direction or bi-directional passage control.

Q4: What is the communication interface?

The turnstile uses an RS485 communication interface with a maximum communication distance of 1200 meters.

Q5: What is the passage speed?

The JSD-Z06 supports a passage speed of 30–45 people per minute.
