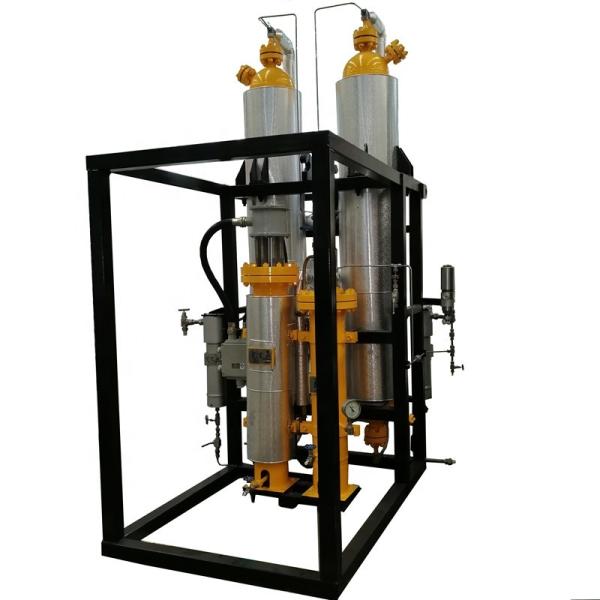

High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station
Specifications
Color :
custom, Customer's Request
Place of Origin :
Sichuan, China
Brand Name :
RT
Use :
natural gas
Voltage :
380V, 480V
Weight :
3000 KG, 2600-3000 kgs
Dimension(L*W*H) :
vary
Warranty :
1 Year
Key Selling Points :
Eco-Friendly
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel
Application :
natural gas purification
Certification :
ISO9000,ISO14000
OEM :
Avaliable
Configuration :
stationary, or portable
Capacity :
4000Nm3/h
Condition :
New
After-sales Service Provided :
Online support
Showroom Location :
None
Description
Product features

Description:

CNG post-dehydration device refers to the equipment installed in the compressor after the original Department of pneumatic up to 25 MP products.

Based on the principle of variable temperature adsorption and dehydration, the saturated water in raw natural gas is adsorbed under high pressure by the physical properties of adsorbent, and then the saturated adsorbent is analyzed by dry gas under low pressure at high temperature. Adsorption and analysis are carried out in reverse fashion.

Features:

1. The main valve of the process adopts the imported needle valve, the exhaust outlet is equipped with pressure butter valve, and the regeneration switching is equipped with air balance pipeline system, so that the air flow can be balanced and the service life of adsorbent can be protected from multiple angles.

(2) Dual drainage valves are used to ensure reliable drainage and no leakage.

(3) Adopt anti-icing plugging pressure regulation design to make the regeneration air flow more smoothly.

Technical parameters

High Pressure Skid Mounted Gas Dehydration Unit Gas Dehydration Equipment for CNG Station

1 Power of regenerative heater (KW/V) 12-18/380
2 The rated flow (Nm3/h) 1500, 4000,
3 Heater design temperature ( °C ) 350
4 Adsorption design pressure (Mpa) 27.5
5 Inlet temperature (°C) ≤45
6 Regenerative design pressure (Mpa) 3.5
7 Inlet oil content (mg/Nm3) ≤5
8 Finished product dew point ( °C) ≤-60
9 Dust content of finshed gas Mg /Nm3
 ≤5
10 Dust diamter of finished gas μm ≤3
11 Way to work The two towers work alternately
12 Regenerative gas extraction method High pressure gas extraction decompression regeneration
13 Cooling way Air cooled or water cooled *
14 Mode of operation Manual or automatic
15 Overall dimensions (m) 1.85X1.39X3.19 or 2.25X1.5X2.62
16 Weight (kg) 2600-3000
