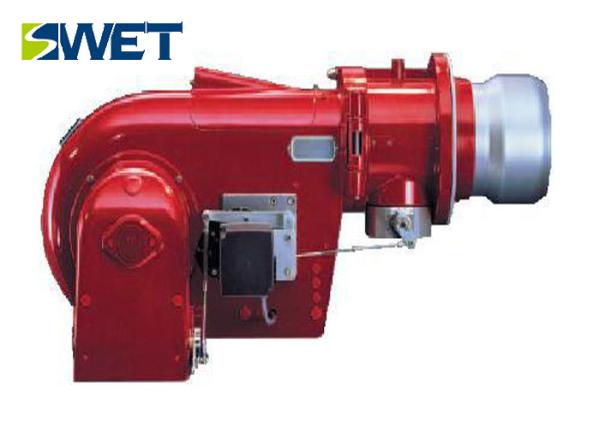

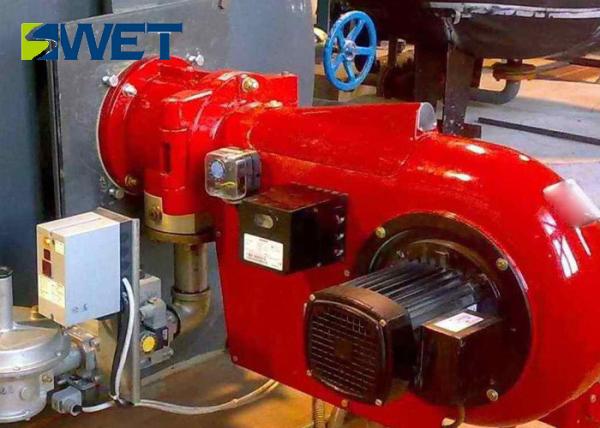

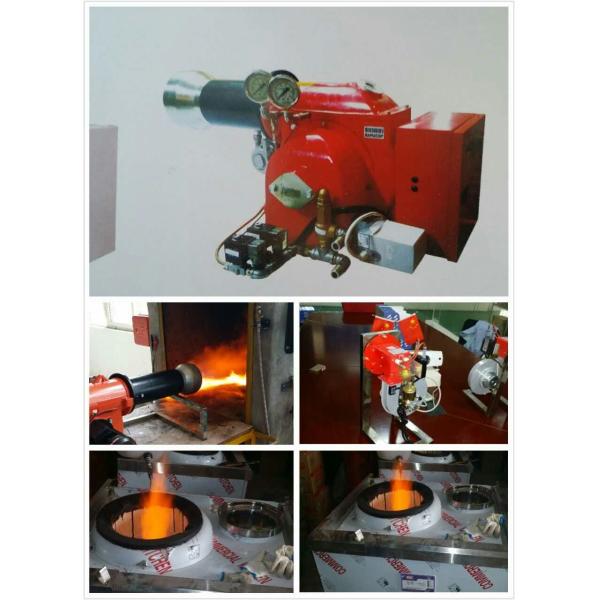

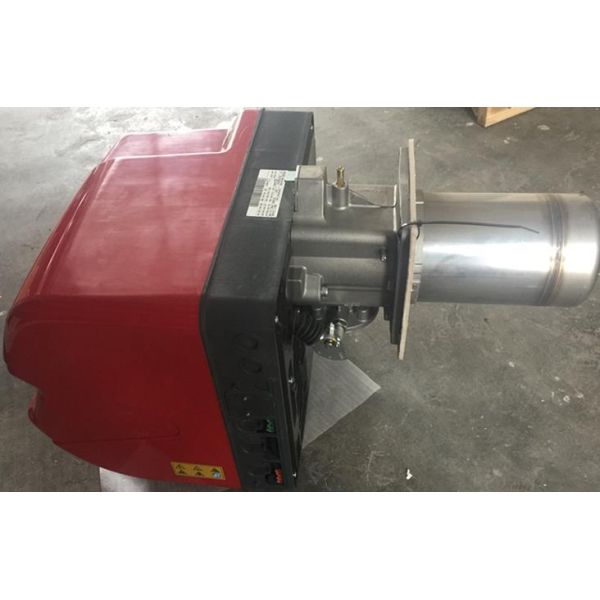

Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Waste Oil / Light Oil Burner 712-1425KW Output Power 240mm Caliber
Specifications
Brand Name :
SWET
Model Number :
120Mode
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
Within 30 days after payment
Packaging Details :
packed in wooden cases .
Burner model :
120Wkcal
Fuel consumption :
60.0-120.0kg/h
Output Power :
712-1425KW
Output calorific value :
61.5-122Wkcak/h
Caliber :
240mm
Power supply :
380V
Control method :
Two stage of fire
Boiler fuels :
light oil,waste oil
Color :
Based on customer's needs
Application :
Boiler system
Description

120 WKcal Environmental Protection High Efficiency Portable Light Oil Burner

Oil burners.
1. Single stage operation (on/off).
2. Compatible with any type of combustion chamber.
3. High pressure mechanical atomisation of fuel using nozzle.
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6. Low consumption.

7. High efficiency.

8. Cheap and durable.

1. Unique product modeling, luxurious and elegant appearance, advanced anti-burning technology, energy saving.

2. Furnace heating area layout is reasonable, water jacket, water pipes, water tank scientific combination, increase the heat absorbing surface, and strengthen heat absorption, truly energy efficient, fierce fire, warming fast, sealing a long time.

Technical Parameters

Burner model

Fuel consumption

(kg/h)

Output Power

(KW)

Output calorific value

(Wkcak/h)

Caliber(mm)

Power supply

Control method

300,000 kcal

12.0-30.0

132-345

12.6-31

130

220/380V

Two stage fire

400,000 kcal

20.4-40.0

237-474

20.4-40.8

160

380V

Two stage of fire

600,000 kcal

28.0-60.0

335-655

28.8-60

170

380V

Two stage of fire

1.2 million kca

60.0-120.0

712-1425

61.5-122

240

380V

Two stage of fire

1.8 million kca

80.0-180.0

880-1980

85.0-190.0

240

380V

Two stage of fire

2.4 million kca

110.0-250.

1210-2750

115-265

260

380V

Two stage of fire

Features: Automatic control, multi-function protection, independent research and development of combustion machine, product modeling unique, methanol gas can be switched.
